BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.580A FRONT FENDER PANELFIG.590A FRONT BODY PANELFIG.600A FLOOR PANELFIG.640A SIDE BODY PANELFIG.660A ROOF PANELFIG.717A FRONT BUMPERFIG.718A REAR BUMPERFIG.720A INSTRUMENT PANELFIG.730A VENTILATORFIG.732A HEATER UNITFIG.740A CONSOLE BOXFIG.73AA HEATER CONTROLFIG.741A FLOOR CARPETFIG.745A INTERIOR TRIMFIG.750A COVER/CAPFIG.755A FUEL LID OPENERFIG.757A ROOF SIDE PADFIG.760A ROOF LININGFIG.772A MOLDINGFIG.774A SPLASH GUARDFIG.780A EMBLEMFIG.790A WINDSHIELDFIG.800A FRONT DOOR PANELFIG.801A REAR DOOR PANELFIG.805A BACK DOOR PANELFIG.810A FRONT DOOR REGULATORFIG.811A REAR DOOR REGULATORFIG.820A FRONT DOOR LOCKFIG.821A REAR DOOR LOCKFIG.824A BACK DOOR LOCKFIG.835A MIRROR/SUNVISORFIG.840A SEAT BELTFIG.848A FRONT LH SEATFIG.849A FRONT RH SEATFIG.850A REAR SEATFIG.860A PARCEL SHELFFIG.865A FUEL TANKFIG.893A TOOLFIG.952A AIR CONDITIONERFIG.990A COMPRESSOR

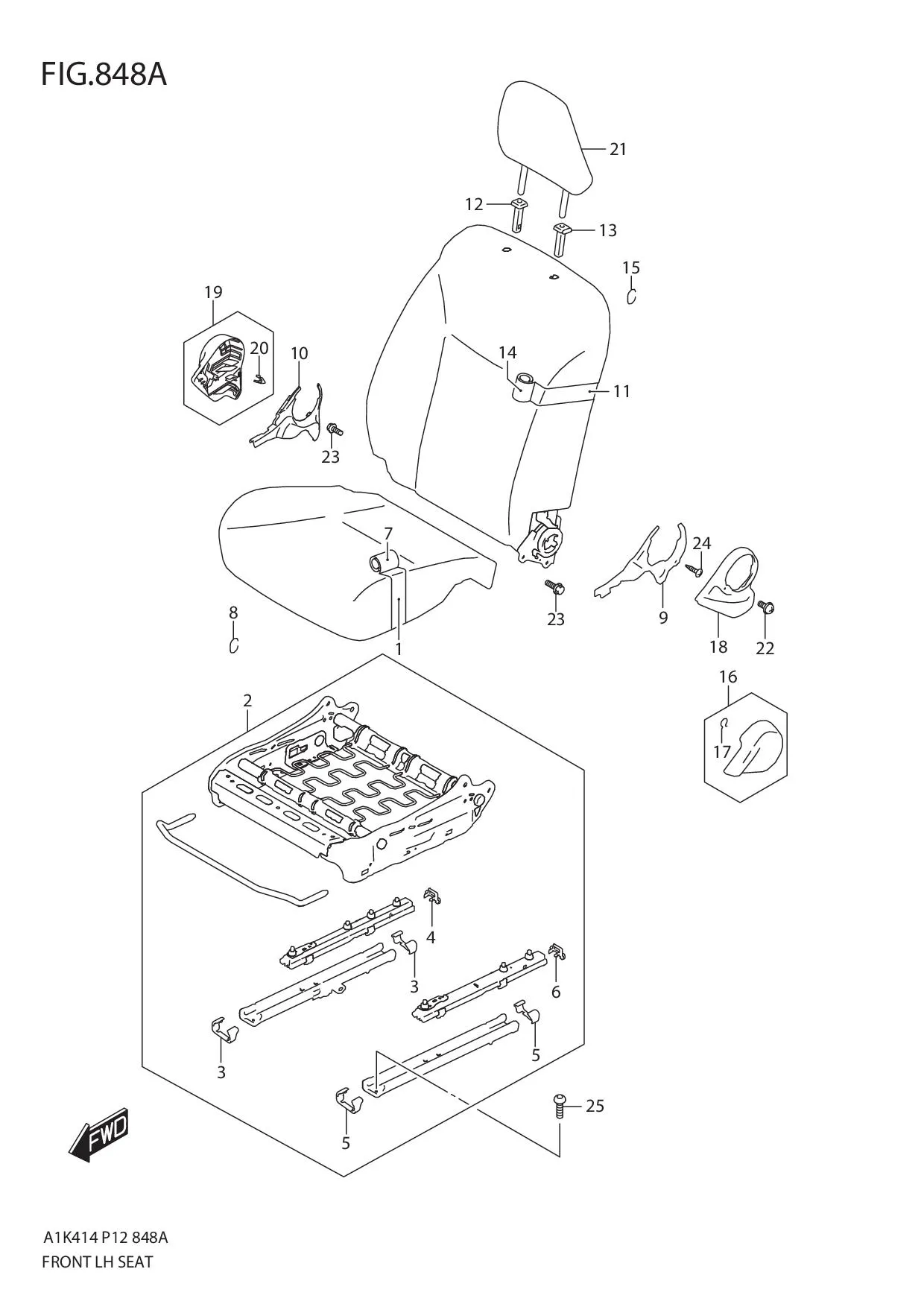

FIG.848A FRONT LH SEAT

FIG.848A FRONT LH SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 85160M68PA0-000 PAD, FR CUSH LH 1 Rp447.000
2 85603M68PA0-000 FRAME ASSY, FR CUSH LH 1 Rp1.967.500
3 86652M74P50-000 •CAP, FR ADJUSTER LOWER RH 2 Rp5.500
4 86653M74P50-000 •CAP, FR ADJUSTER UPPER RH 1 Rp5.500
5 86652M74P50-000 •CAP, FR ADJUSTER LOWER LH 2 Rp5.500
6 86653M74P50-000 •CAP, FR ADJUSTER UPPER LH 1 Rp5.500
7 85680M68P00-BUV TRIM, FR CUSH LH (BLACK) 1 Rp672.000
8 09387-19001-000
SUB: 09387B19001N000		 RING (OD:22.6) 10 Rp9.000
9 85242M68P00-5PK COVER, FR RCLNG INSIDE LOWER LH (BLACK) 1 Rp22.000
10 85222M68P00-5PK COVER, FR RCLNG INSIDE LOWER RH (BLACK) 1 Rp22.000
11 85306M68PJ0-000 BACK ASSY, FR LH 1 Rp3.027.500
12 85341M68P00-5PK GUIDE, HEADRESTRAINT (BLACK) 1 Rp15.000
13 85840M68P00-5PK GUIDE, HEADRESTRAINT (BLACK) 1 Rp31.000
14 85880M68PK0-BUV TRIM, FR BACK LH (BLACK) 1 Rp885.500
15 09387-19001-000
SUB: 09387B19001N000		 RING (OD:22.6) 11 Rp9.000
16 85711M68P10-5PK KNOB, RCLNG LH (BLACK) 1 Rp34.500
17 78463-78000-000 •SNAP 1 Rp15.000
18 85721M68P10-5PK COVER, FR RCLNG OUTSIDE LH (BLACK) 1 Rp35.000
19 85740M68P30-5PK COVER, FR RCLNG INSIDE LH (BLACK) 1 Rp27.000
20 85249M68P00-000 •CLIP 1 Rp9.500
21 86401M68P00-PYD HEADRESTRAINT ASSY, FR LH (BLACK) 1 Rp706.000
22 09132M04038-000 SCREW (4X10) 1 Rp5.500
23 01550-1016A-000
SUB: 01550B1016AN000		 BOLT 4 Rp5.500
24 03541-0410A-000 SCREW 2 Rp11.000
25 09119M08118-000
SUB: 09119M08111-000		 BOLT (8X25) 4 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
