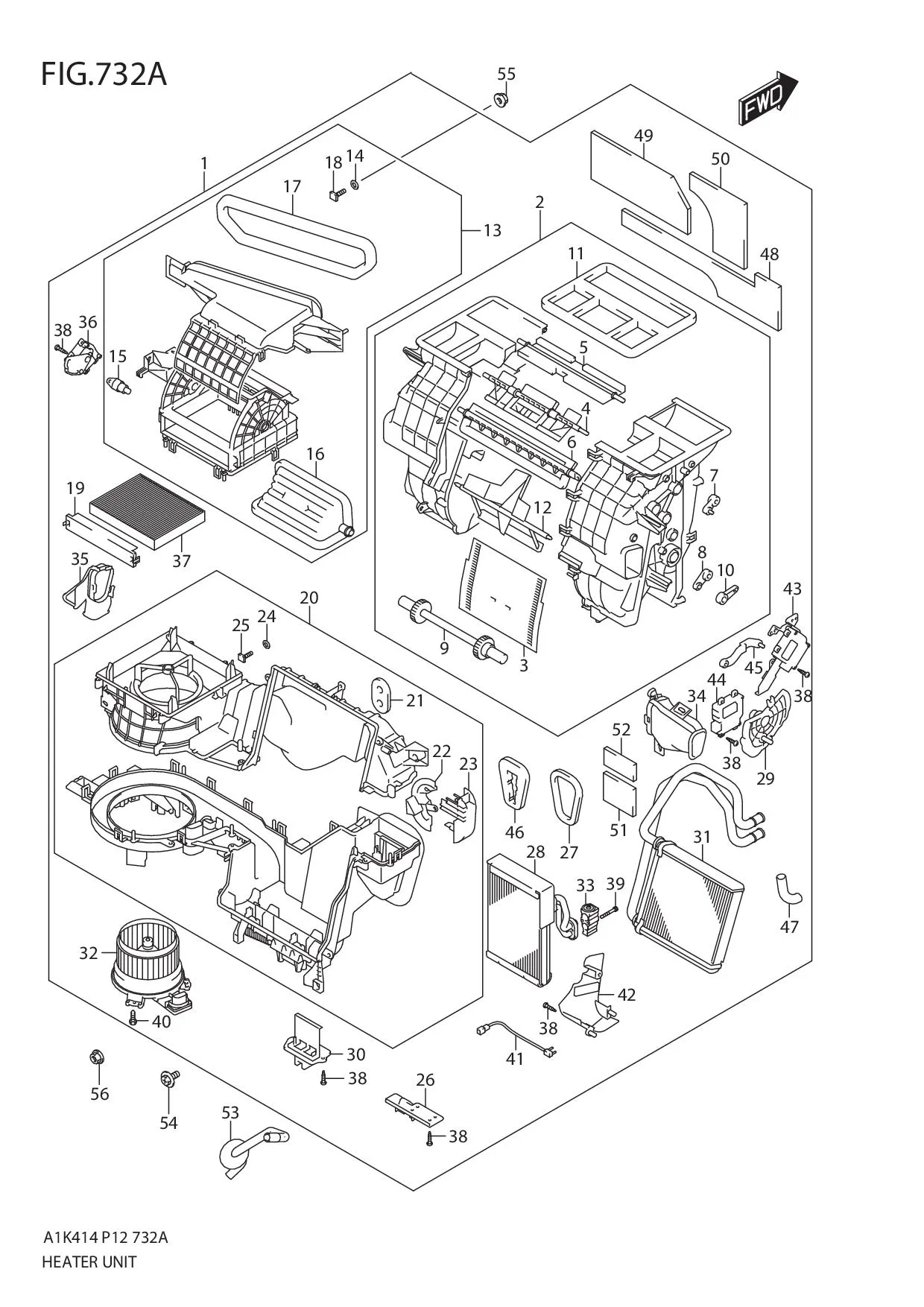

FIG.732A HEATER UNIT

No	No. Part	Description	Qty	Price Per Pcs
1	74100M68P92-000 SUB: 74100M68P90-000	HVAC UNIT	1	Rp9.299.500
2	74110M68P40-000	•CASE, HEATER	1	Rp447.000
3	74178M79M00-000	••DOOR	1	Rp187.500
4	74171M68P00-000	••DOOR ASSY	1	Rp44.000
5	74172M68P00-000	••DOOR ASSY	1	Rp61.500
6	74173M68P00-000	••DOOR ASSY	1	Rp49.500
7	74191M68P00-000	••LEVER	1	Rp6.500
8	74193M68P00-000	••LEVER	1	Rp10.500
9	74197M68P00-000	••SHAFT	1	Rp10.500
10	74194M68P00-000	••LEVER	1	Rp6.500
11	74116M68P20-000	••PACKING	1	Rp37.000
12	74113M68P00-000	••DUCT, AIR	1	Rp15.000
13	74210M68P90-000	•CASE, BLOWER	1	Rp281.000
14	74119-78F10-000 SUB: 74119B78F10N000	••BUSH	2	Rp8.000
15	74281M68P90-000	••LEVER	1	Rp15.000
16	74176M68P00-000	••DOOR ASSY	1	Rp54.500
17	74119M68P20-000	••PACKING	1	Rp27.000
18	74119M79M00-000	••BOLT	2	Rp9.000
19	74214M68P00-000	•HOLDER, FILTER	1	Rp18.500
20	74220M68P50-000	•CASE, BLOWER	1	Rp195.000
21	74118-63J01-000	••PACKING, HTR PIPE	1	Rp74.000
22	74221M68P00-000	••BRACKET	1	Rp17.000
23	74222M68P00-000	••BRACKET	1	Rp19.500
24	74119-78F10-000 SUB: 74119B78F10N000	••BUSH	1	Rp8.000
25	74119M79M00-000	••BOLT	1	Rp9.000
26	74226M68P00-000	•BRACKET	1	Rp33.000
27	74117M79M00-000	•PACKING	1	Rp41.000
28	95411M68P21-000 SUB: 95411M68P20-000	•EVAPORATOR ASSY	1	Rp794.500
29	74181M68P90-000	•LEVER, PLATE	1	Rp13.000
30	95626M79M00-000	•POWER TRANSISTOR ASSY, BLOWER	1	Rp743.000
31	74120M68P20-000	•CORE ASSY, HTR	1	Rp1.026.000
32	74150M68P31-000 SUB: 74150M68P20-000	•MOTOR ASSY, W/FAN	1	Rp1.188.500
33	95431M68P20-000	•VALVE EXPANSION	1	Rp812.000
34	74114M68P20-000	•DUCT ASSY, AIR	1	Rp19.500
35	74115M68P20-000	•DUCT ASSY, AIR	1	Rp22.500
36	95655M68P90-000	•SERVO/ACC ASSY	1	Rp508.500
37	95850M68P00-000	•FILTER ASSY	1	Rp249.500
38	03112-0416A-000 SUB: 03112B0416AN000	•SCREW	24	Rp23.500
39	74134-58J00-000 SUB: 74134B58J00N000	•BOLT	2	Rp14.000
40	74135-82000-000 SUB: 74135B82000N000	•SCREW, MOTOR	3	Rp19.500
41	95541M68P20-000	•THERMISTER ASSY	1	Rp255.500
42	74131M68P00-000	•COVER	1	Rp18.500
43	95653M68P90-000	•SERVO MOTOR ASSY, W/ACCESSORY	1	Rp526.500
44	95654M68P90-000	•SERVO MOTOR ASSY, W/ACCESSORY	1	Rp481.500
45	74196M68P90-000	•ROD	1	Rp11.500
46	74120M82P10-000	•PACKING	1	Rp74.000
47	74121M68P00-000	•INSULATOR	1	Rp7.500
48	74161M68P00-000	•PACKING	1	Rp110.000
49	74162M68P00-000	•PACKING	1	Rp74.000
50	74163M68P00-000	•PACKING	1	Rp61.500
51	74164M68P00-000	•PACKING	2	Rp15.000
52	74165M68P00-000	•PACKING	2	Rp11.000
53	95481M68P01-000	HOSE, DRAIN	1	Rp57.000
54	09122-76003-000	SCREW (6X16)	1	Rp15.000
55	09159-06086-000	NUT	3	Rp26.500
56	08361M2506A-000	NUT	1	Rp7.000
