BALENO AK414

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANEL FIG.580A FRONT FENDER PANEL FIG.590A FRONT BODY PANEL FIG.600A FLOOR PANEL FIG.640A SIDE BODY PANEL FIG.660A ROOF PANEL FIG.717A FRONT BUMPER FIG.718A REAR BUMPER FIG.720A INSTRUMENT PANEL FIG.730A VENTILATOR FIG.732A HEATER UNIT FIG.740A CONSOLE BOX FIG.73AA HEATER CONTROL FIG.741A FLOOR CARPET FIG.745A INTERIOR TRIM FIG.750A COVER/CAP FIG.755A FUEL LID OPENER FIG.757A ROOF SIDE PAD FIG.760A ROOF LINING FIG.772A MOLDING FIG.774A SPLASH GUARD FIG.780A EMBLEM FIG.790A WINDSHIELD FIG.800A FRONT DOOR PANEL FIG.801A REAR DOOR PANEL FIG.805A BACK DOOR PANEL FIG.810A FRONT DOOR REGULATOR FIG.811A REAR DOOR REGULATOR FIG.820A FRONT DOOR LOCK FIG.821A REAR DOOR LOCK FIG.824A BACK DOOR LOCK FIG.835A MIRROR/SUNVISOR FIG.840A SEAT BELT FIG.848A FRONT LH SEAT FIG.849A FRONT RH SEAT FIG.850A REAR SEAT FIG.860A PARCEL SHELF FIG.865A FUEL TANK FIG.893A TOOL FIG.952A AIR CONDITIONER FIG.990A COMPRESSOR

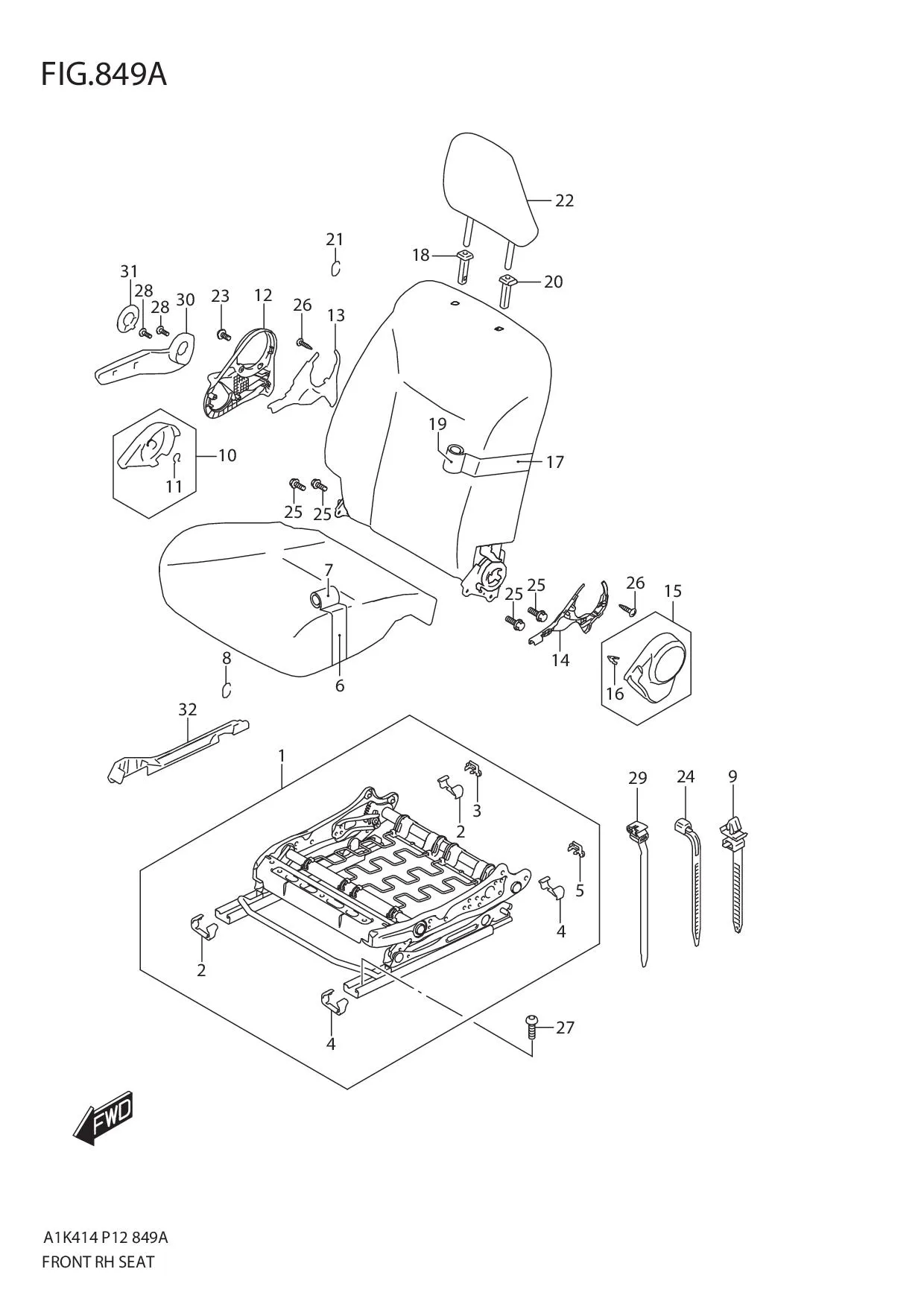

FIG.849A FRONT RH SEAT

No	No. Part	Description	Qty	Price Per Pcs
1	85103M68PB0-000	FRAME ASSY, FR CUSH RH	1	Rp3.395.000
2	86652M74P50-000	•CAP, FR ADJUSTER LOWER RH	2	Rp5.500
3	86653M74P50-000	•CAP, FR ADJUSTER UPPER RH	1	Rp5.500
4	86652M74P50-000	•CAP, FR ADJUSTER LOWER LH	2	Rp5.500
5	86653M74P50-000	•CAP, FR ADJUSTER UPPER LH	1	Rp5.500
6	85160M68PA0-000	PAD, FR CUSH RH	1	Rp447.000
7	85180M68P21-BUV SUB: 85180M68P20-BUV	TRIM, FR CUSH RH (BLACK)	1	Rp702.500
8	09387-19001-000 SUB: 09387B19001N000	RING (OD:22.6)	10	Rp9.000
9	85191M74L00-000	CLAMP	1	Rp9.000
10	85211M68P10-5PK	KNOB, RCLNG RH (BLACK)	1	Rp34.500
11	78463-78000-000	•SNAP	1	Rp15.000
12	85221M68P30-5PK	COVER, FR RCLNG OUTSIDE RH (BLACK)	1	Rp35.000
13	85222M68P00-5PK	COVER, FR RCLNG INSIDE LOWER RH (BLACK)	1	Rp22.000
14	85242M68P00-5PK	COVER, FR RCLNG INSIDE LOWER LH (BLACK)	1	Rp22.000
15	85240M68P30-5PK	COVER, FR RCLNG INSIDE RH (BLACK)	1	Rp27.000
16	85249M68P00-000	•CLIP	1	Rp9.500
17	85305M68PJ0-000	BACK ASSY, FR RH	1	Rp3.037.500
18	85341M68P00-5PK	GUIDE, HEADRESTRAINT (BLACK)	1	Rp15.000
19	85380M68PJ0-BUV	TRIM, FR BACK RH (BLACK)	1	Rp885.500
20	85840M68P00-5PK	GUIDE, HEADRESTRAINT (BLACK)	1	Rp31.000
21	09387-19001-000 SUB: 09387B19001N000	RING (OD:22.6)	11	Rp9.000
22	86401M68P00-PYD	HEADRESTRAINT ASSY, FR RH (BLACK)	1	Rp706.000
23	09132M04038-000	SCREW (4X10)	1	Rp5.500
24	09407M14403-000	CLAMP (L:125)	1	Rp5.000
25	01550-1016A-000 SUB: 01550B1016AN000	BOLT	4	Rp5.500
26	03541-0410A-000	SCREW	2	Rp11.000
27	09119M08118-000 SUB: 09119M08111-000	BOLT (8X25)	4	Rp6.500
28	09132M05065-000	SCREW (5X10)	2	Rp5.500
29	09407M14414-000	CLAMP (L:140)	1	Rp6.500
30	85213M68PB0-5PK	LEVER, SEAT LIFTER RH (BLACK)	1	Rp82.000
31	85214M68PB0-5PK	CAP, LIFTER LEVER RH (BLACK)	1	Rp11.500
32	85244M68P20-5PK	COVER, RISER OUTSIDE RH (BLACK)	1	Rp33.500
