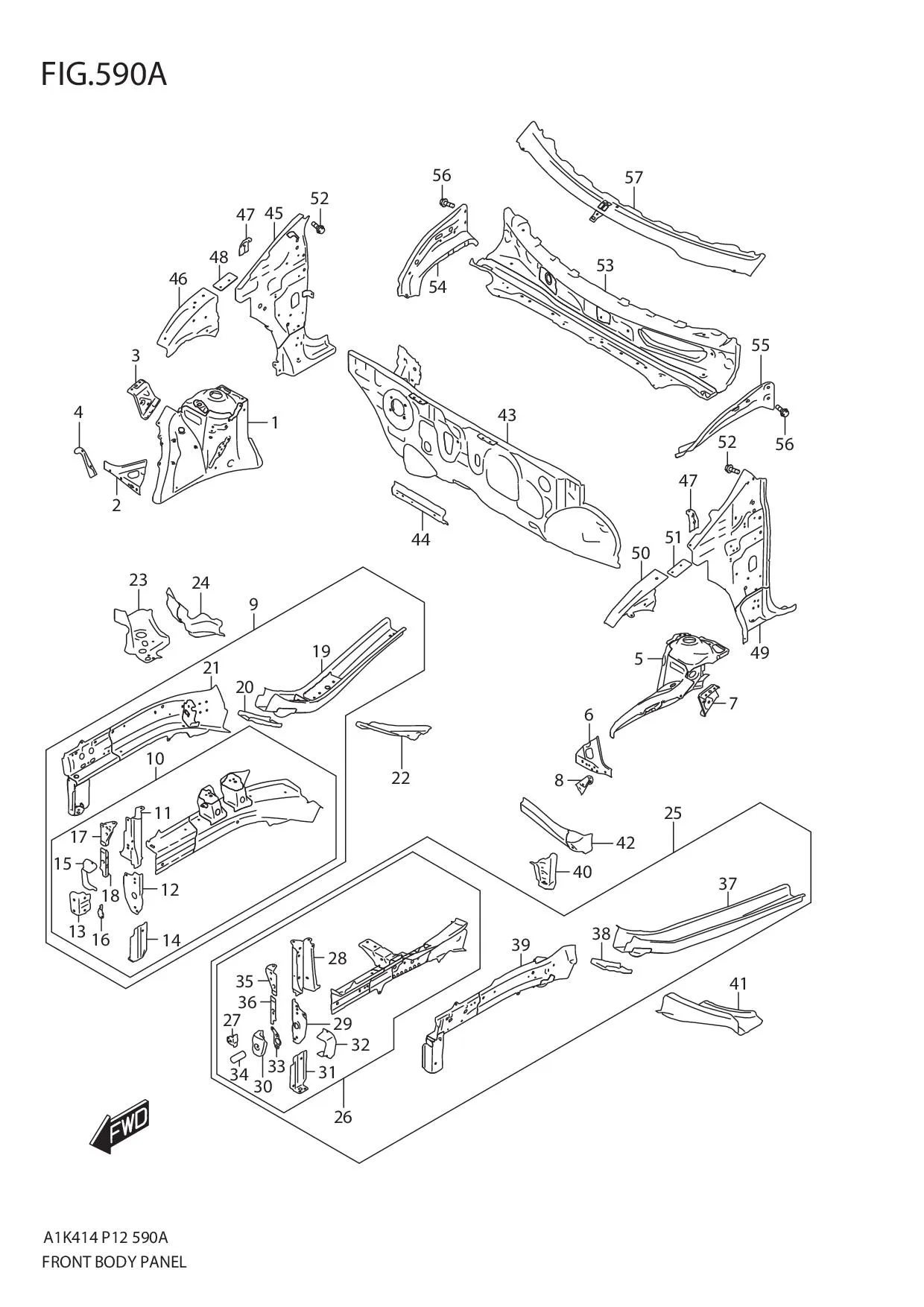

FIG.590A FRONT BODY PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	58310M68P10-000	PANEL, FENDER APRON RH	1	Rp995.000
2	58315M68P00-000	EXTENSION, FR FENDER LWR BRKT RH	1	Rp23.000
3	58316M68P00-000	BRACKET, FRONT FENDER UPR FR RH	1	Rp16.500
4	58322M68P00-000	BRACKET, FRONT FENDER LOWER RH	1	Rp11.500
5	58410M68P10-000	PANEL, FENDER APRON LH	1	Rp995.000
6	58415M68P00-000	EXTENSION, FR FENDER LWR BRKT LH	1	Rp23.000
7	58416M68P00-000	BRACKET, FRONT FENDER UPR FR LH	1	Rp16.500
8	58422M68P00-000	BRACKET, FRONT FENDER LOWER LH	1	Rp11.500
9	58600M68P10-000 SUB: 58600M68P11-000	MEMBER, FRONT SIDE RH	1	Rp5.194.000
10	58610M68P10-000	•MEMBER, APRON SIDE RH	1	Rp2.109.500
11	58614M68P10-000	••BRACE, LAMP SUPPORT RH	1	Rp113.500
12	58615M68P00-000	••PLATE, APRON SIDE MEMBER FR RH	1	Rp73.000
13	58616M68P00-000	••EXTENSION, APRON SIDE MBR INS RH	1	Rp62.500
14	58618M68P10-000	••BRACE, RADIATOR SUPPORT INNER RH	1	Rp32.500
15	58619M68P00-000	••EXTENSION, APRON SIDE MBR OUT RH	1	Rp48.000
16	58665M68P00-000	••BRACKET, FR BUMPER MEMBER	1	Rp20.500
17	58666M68P00-000	••GUSSET, LAMP SUPPORT BRACE RH	1	Rp29.000
18	58667M68P00-000	••REINF, LAMP SUPPORT BRACE RH	1	Rp23.000
19	58620M68P10-000	•MEMBER, DASH LOWER RH	1	Rp87.500
20	58628M68P10-000	•REINF, APRON SIDE MEMBER RR RH	1	Rp81.000
21	58630M68P30-000	•MEMBER, APRON SIDE OUTER RH	1	Rp1.493.500
22	58625M68P10-000	EXTENSION, DASH LOWER INNER RH	1	Rp57.500
23	58640M68P00-000	EXTENSION, DASH LWR OTR RH	1	Rp525.000
24	58650M68P00-000	CROSSMEMBER, DASH UPPER RH	1	Rp65.000
25	58700M68P21-000	MEMBER, FRONT SIDE LH	1	Rp5.080.000
26	58710M68P10-000	•MEMBER, APRON SIDE LH	1	Rp2.109.500
27	58665M68P00-000	••BRACKET, FR BUMPER MEMBER	1	Rp20.500
28	58714M68P10-000	••BRACE, LAMP SUPPORT LH	1	Rp113.500
29	58715M68P00-000	••PLATE, APRON SIDE MEMBER FR LH	1	Rp73.000
30	58716M68P00-000	••EXTENSION, APRON SIDE MBR INS LH	1	Rp64.500
31	58718M68P10-000	••BRACE, RDTR SUPPORT INNER LH	1	Rp32.500
32	58719M68P00-000	••EXTENSION, APRON SIDE MBR OUT LH	1	Rp48.000
33	58762M68P00-000	••REINF, TOWING HOOK NUT FRONT	1	Rp18.500
34	58763M68P00-000	••NUT, TOWING HOOK	1	Rp151.000
35	58766M68P00-000	••GUSSET, LAMP SUPPORT BRACE LH	1	Rp29.000
36	58767M68P00-000	••REINF, LAMP SUPPORT BRACE LH	1	Rp23.000
37	58720M68P20-000	•MEMBER, DASH LOWER LH	1	Rp43.000
38	58728M68P10-000	•REINF, APRON SIDE MEMBER RR LH	1	Rp81.000
39	58730M68P30-000	•MEMBER, APRON SIDE OUTER LH	1	Rp1.493.500
40	58725M68P10-000	EXTENSION, DASH LOWER INNER LH	1	Rp87.500
41	58740M68P00-000	EXTENSION, DASH LWR OTR LH	1	Rp530.000
42	58750M68P00-000	CROSSMEMBER, DASH UPPER LH	1	Rp65.000
43-1	59100M68PA1-000 SUB: 59100M68PA0-000	PANEL, DASH	1	Rp1.848.500	5MT
43-2	59100M68PE1-000 SUB: 59100M68PE0-000	PANEL, DASH	1	Rp1.810.000	4AT
44	59221M68P20-000	CROSSMEMBER, DASH UPPER CTR	1	Rp61.500
45	59230M68P21-000 SUB: 59230M68P20-000	PANEL, DASH SIDE RH	1	Rp842.000
46	59232M68P10-000	PANEL, DASH SIDE FRONT RH	1	Rp165.000
47	59233M68P00-000	BRACKET, FRONT FENDER RH	2	Rp8.500
48	59236M68P00-000	PATCH, FRONT HOOD HINGE RH	1	Rp11.500
49	59280M50S00-000 SUB: 59280M68P20-000	PANEL, DASH SIDE LH	1	Rp842.000
50	59282M68P10-000	PANEL, DASH SIDE FRONT LH	1	Rp165.000
51	59286M68P00-000	PATCH, FRONT HOOD HINGE LH	1	Rp11.500
52	01550M0612A-000	BOLT	2	Rp5.000
53	59300M68P40-000	PANEL, COWL UPPER	1	Rp649.000
54	59411M68P10-000	MEMBER, COWL SIDE OUTER RH	1	Rp239.000
55	59461M68P10-000	MEMBER, COWL SIDE OUTER LH	1	Rp239.000
56	01550-0820A-000 SUB: 01550B0820AN000	BOLT	6	Rp5.500
57	59710M68P10-000	PANEL, COWL TOP	1	Rp336.500
