BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.580A FRONT FENDER PANELFIG.590A FRONT BODY PANELFIG.600A FLOOR PANELFIG.640A SIDE BODY PANELFIG.660A ROOF PANELFIG.717A FRONT BUMPERFIG.718A REAR BUMPERFIG.720A INSTRUMENT PANELFIG.730A VENTILATORFIG.732A HEATER UNITFIG.740A CONSOLE BOXFIG.73AA HEATER CONTROLFIG.741A FLOOR CARPETFIG.745A INTERIOR TRIMFIG.750A COVER/CAPFIG.755A FUEL LID OPENERFIG.757A ROOF SIDE PADFIG.760A ROOF LININGFIG.772A MOLDINGFIG.774A SPLASH GUARDFIG.780A EMBLEMFIG.790A WINDSHIELDFIG.800A FRONT DOOR PANELFIG.801A REAR DOOR PANELFIG.805A BACK DOOR PANELFIG.810A FRONT DOOR REGULATORFIG.811A REAR DOOR REGULATORFIG.820A FRONT DOOR LOCKFIG.821A REAR DOOR LOCKFIG.824A BACK DOOR LOCKFIG.835A MIRROR/SUNVISORFIG.840A SEAT BELTFIG.848A FRONT LH SEATFIG.849A FRONT RH SEATFIG.850A REAR SEATFIG.860A PARCEL SHELFFIG.865A FUEL TANKFIG.893A TOOLFIG.952A AIR CONDITIONERFIG.990A COMPRESSOR

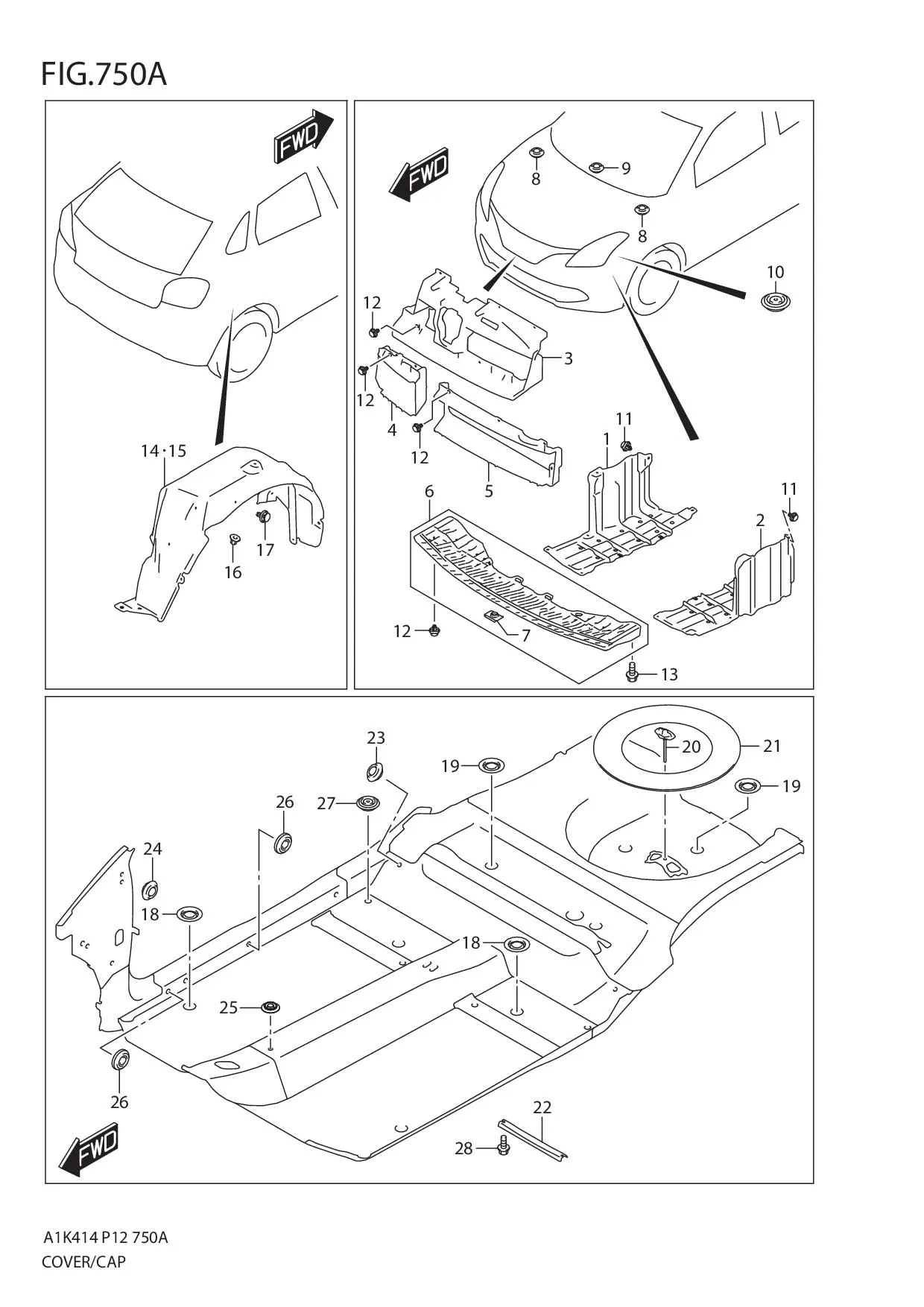

FIG.750A COVER/CAP

FIG.750A COVER/CAP
No No. Part Description Qty Price Per Pcs Remarks
1 72421M68P01-000
SUB: 72421M68P00-000		 COVER, ENGINE UNDER SIDE RH 1 Rp99.000
2 72422M68P01-000
SUB: 72422M68P00-000		 COVER, ENGINE UNDER SIDE LH 1 Rp99.000
3 72432M68P00-000 COVER, FRONT END UPPER LH 1 Rp158.500
4 72433M68P00-000 COVER, FRONT END LOWER RH 1 Rp65.000
5 72434M68P00-000 COVER, FRONT END LOWER LH 1 Rp90.000
6 72460M68P10-000 ABSORBER, FR BUMPER LOWER 1 Rp356.000
7 09148M05071-000 •NUT 4 Rp6.000
8 09250-10016-000
SUB: 09250B10016N000		 CAP (OD:16.2) 2 Rp14.000
9 09250-10016-000
SUB: 09250B10016N000		 CAP (OD:16.2) 1 Rp14.000
10 09250M25L02-000
SUB: 09250M25L01-000		 CAP (OD:25.0) 2 Rp5.500
11 09409M07346-000 CLIP 12 Rp5.500
12 09409M08006-000
SUB: 09409M08L01-000		 CLIP 16 Rp5.000
13 02162-0616A-000 SCREW 9 Rp3.000
14 72811M68P00-000 LINING, REAR FENDER RH 1 Rp373.000
15 72821M68P00-000 LINING, REAR FENDER LH 1 Rp373.000
16 09148M05065-000 NUT 8 Rp5.500
17 09409M07346-000 CLIP 12 Rp5.500
18 75431-64L00-000 CAP, MAIN FL DRAIN 4 Rp43.000
19 75431-64L00-000 CAP, MAIN FL DRAIN 5 Rp43.000
20 75450M68P00-000 HOLDER, SPARE TIRE 1 Rp35.000
21 75461M68P00-000 SHEET, SPARE TIRE UNDER 1 Rp42.000
22 75591M68P00-000 BRACE, FLOOR TUNNEL 1 Rp49.000
23 09250-15012-000
SUB: 09250M15L01-000		 CAP (OD:23.5) 2 Rp5.000
24 09250-15012-000
SUB: 09250M15L01-000		 CAP (OD:23.5) 6 Rp5.000
25 09250M15019-000 CAP (OD:23.5) 1 Rp6.500
26 09250M20031-000
SUB: 09250-20015-000		 CAP (OD:28.5) 8 Rp4.500
27 09250M25L02-000
SUB: 09250M25L01-000		 CAP (OD:25.0) 2 Rp5.500
28 01551-0812A-000 BOLT 2 Rp18.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
