BALENO AK414

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANEL FIG.580A FRONT FENDER PANEL FIG.590A FRONT BODY PANEL FIG.600A FLOOR PANEL FIG.640A SIDE BODY PANEL FIG.660A ROOF PANEL FIG.717A FRONT BUMPER FIG.718A REAR BUMPER FIG.720A INSTRUMENT PANEL FIG.730A VENTILATOR FIG.732A HEATER UNIT FIG.740A CONSOLE BOX FIG.73AA HEATER CONTROL FIG.741A FLOOR CARPET FIG.745A INTERIOR TRIM FIG.750A COVER/CAP FIG.755A FUEL LID OPENER FIG.757A ROOF SIDE PAD FIG.760A ROOF LINING FIG.772A MOLDING FIG.774A SPLASH GUARD FIG.780A EMBLEM FIG.790A WINDSHIELD FIG.800A FRONT DOOR PANEL FIG.801A REAR DOOR PANEL FIG.805A BACK DOOR PANEL FIG.810A FRONT DOOR REGULATOR FIG.811A REAR DOOR REGULATOR FIG.820A FRONT DOOR LOCK FIG.821A REAR DOOR LOCK FIG.824A BACK DOOR LOCK FIG.835A MIRROR/SUNVISOR FIG.840A SEAT BELT FIG.848A FRONT LH SEAT FIG.849A FRONT RH SEAT FIG.850A REAR SEAT FIG.860A PARCEL SHELF FIG.865A FUEL TANK FIG.893A TOOL FIG.952A AIR CONDITIONER FIG.990A COMPRESSOR

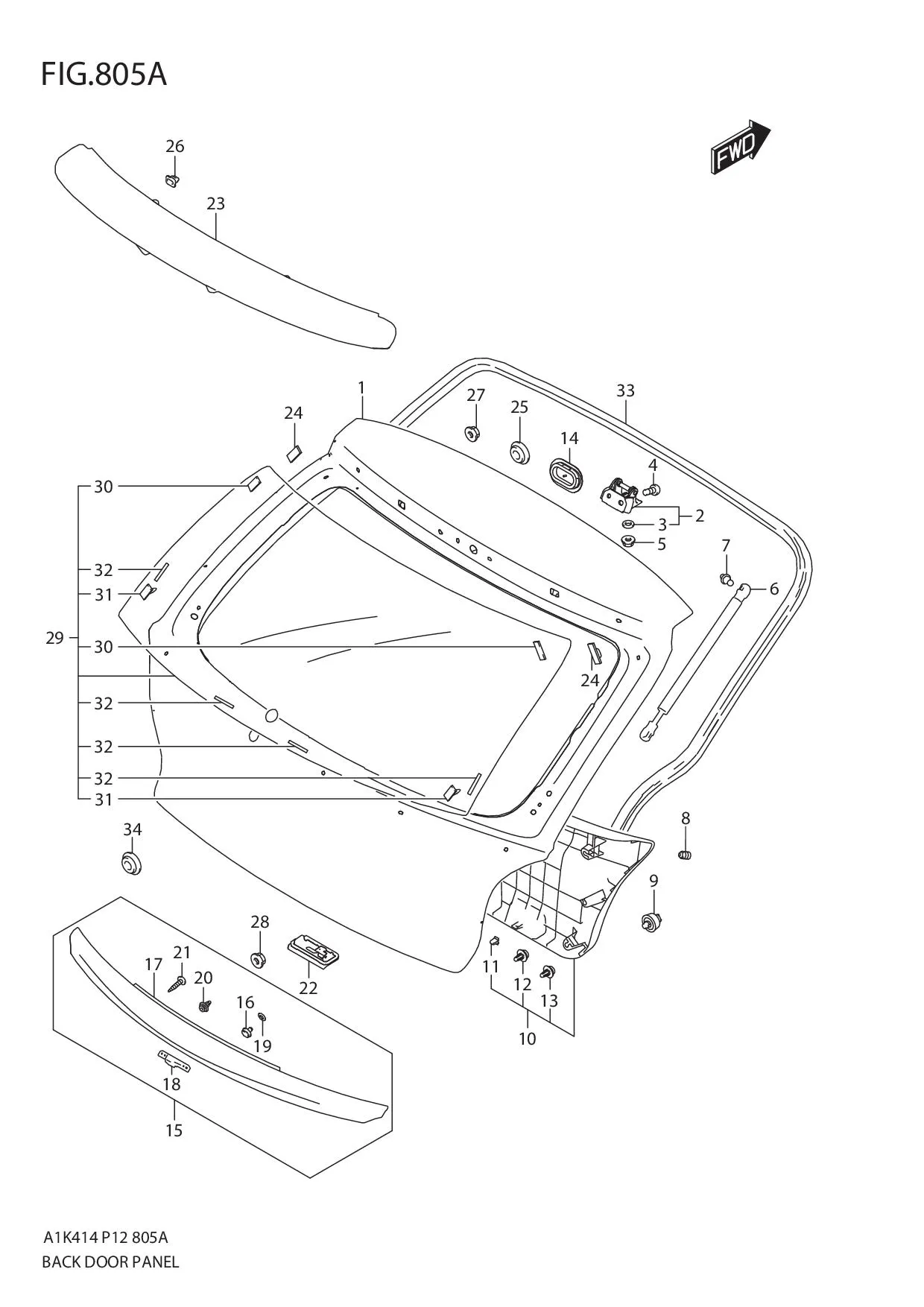

FIG.805A BACK DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	69100M68P21-000 SUB: 69100M68P20-000	PANEL ASSY, BACK DOOR	1	Rp2.219.000
2	69510M68P01-000	HINGE, BACK DR	2	Rp62.500
3	69571M76G00-000	•PACKING, BACK DR HNG	2	Rp6.500
4	09111M06115-000	BOLT (6X12)	4	Rp5.500
5	08361-2508A-000	NUT	2	Rp16.500
6	81850M68P10-000	BALANCER, BACK DOOR	2	Rp238.500
7	81871M68P01-000 SUB: 81871M68P00-000	BALLSTUD, BACK DOOR BALANCER	4	Rp31.000
8	82683M64M00-000	CUSHION, BACK DR SIDE	2	Rp6.000
9	82684-72M00-000	CUSHION, BACK DR LOWER	2	Rp21.000
10	83770M68P00-5PK	TRIM, BACK DOOR (BLACK)	1	Rp269.500
11	09409-06324-000 SUB: 09409B06324N000	•CLIP	1	Rp13.500
12	09409-08331-000	•CLIP	2	Rp17.000
13	09409-10327-000 SUB: 09409M10L02-000	•CLIP	8	Rp5.000
14	36994M68K00-000	CAP, FR DR HOLE	3	Rp10.500
15	83940M68P00-0PG	GARNISH, BACK DOOR (CHROME)	1	Rp1.174.000
16	77122-60B00-000	•SEAL, TRUNK LID GARNISH	2	Rp24.000
17	83942M68P00-000	•PROTECTER, BACK DOOR GARNISH	1	Rp99.000
18	83943M68P00-000	•CAP, BACK CAMERA HOLE	1	Rp9.500
19	09119-06118-000	•BOLT (6X15)	2	Rp18.000
20	71812M78F00-000 SUB: 71812M60M00-000	•CLIP	3	Rp8.000
21	09132M04039-000	•SCREW (4X16)	2	Rp4.500
22	83970M68P10-000	HOLDER, BACK DOOR SWITCH	1	Rp24.500
23-1	83980M68P00-ZHJ	SPOILER, BACK DOOR (WHITE)	1	Rp2.589.500
23-2	83980M68P00-ZQS	SPOILER, BACK DOOR (SILVER)	1	Rp2.589.500
23-3	83980M68P00-ZQT	SPOILER, BACK DOOR (BLUE)	1	Rp2.599.500
23-4	83980M68P00-ZTN	SPOILER, BACK DOOR (GRAY)	1	Rp2.599.500
23-5	83980M68P00-Z4Q	SPOILER, BACK DOOR (RED)	1	Rp2.589.500
23-6	83980M68P00-ZAM	SPOILER, BACK DOOR (BLACK)	1	Rp2.589.500
24	84515M65D10-000	FEMALE, GLASS FASTENER NO.2	2	Rp22.000
25	09250M20031-000 SUB: 09250M20L02-000	CAP (OD:25.8)	1	Rp4.500
26	09410M00079-000	CLIP	2	Rp5.500
27	09159M06115-000	NUT	2	Rp4.500
28	08316-1006A-000 SUB: 08316B1006AN000	NUT	2	Rp2.000
29	84570M68P30-000	GLASS, BACK DR WINDOW	1	Rp1.511.000
30	84513M75J00-000	•MALE, GLASS FASTENER NO.2	2	Rp8.500
31	84575M74L00-000	•CLIP, GLASS FASTENER	2	Rp16.000
32	84617M60M00-000	•SPACER, BACK DOOR WINDOW	4	Rp4.500
33	84681M68P00-000	WEATHERSTRIP, BACK DOOR OPNG	1	Rp384.500
34	39977M68P00-000	CAP, BACK CAMERA	1	Rp8.500
35	83994-62R01-000	CAP, BACK DR DRAIN HOLE	3	Rp26.000	FROM 2017-2,UP TO 2017-4
36	76482-51K00-000	FILM, DR CUSHION	2	Rp43.500	FROM 2017-5
