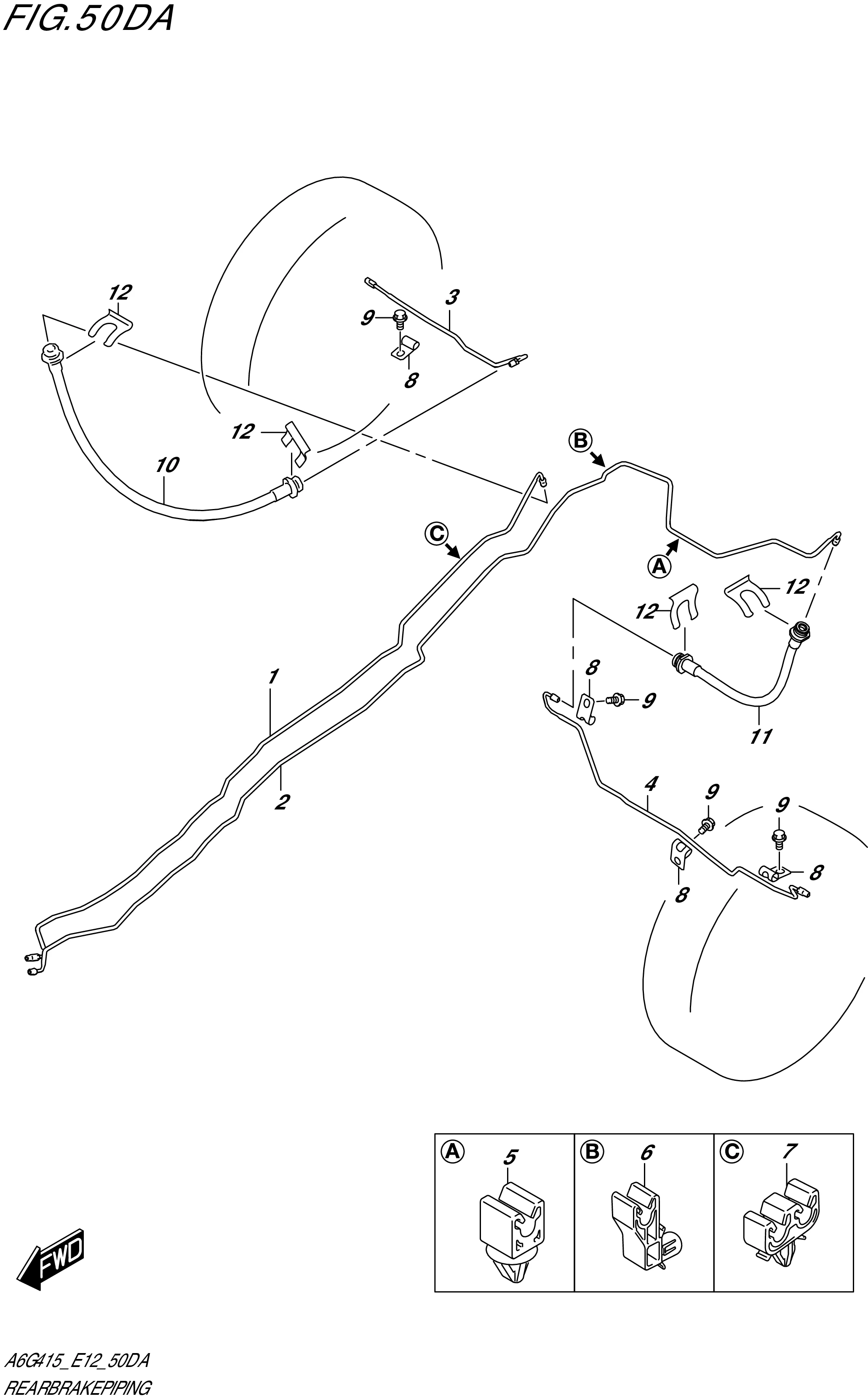

FIG. 50DA - REAR BRAKE PIPING

FIG. 50DA - REAR BRAKE PIPING
No No. Part Description Qty Price Per Pcs Remarks
1 51470-78R00-000 PIPE,BODY HOSE TO RR BK HOSE,R 1 Rp200.000
2 51480-78R00-000 PIPE,BODY HOSE TO RR BK HOSE,L 1 Rp255.500
3 51510-78R00-000 PIPE,RR BK HOSE TO RR W/C,R 1 Rp118.500
4 51520-78R00-000 PIPE,RR BK HOSE TO RR W/C,L 1 Rp151.000
5 51761-64P00-000 CLAMP, BK PIPE 1 Rp31.500
6 51761-78R10-000 CLAMP,BK PIPE FRAME SINGLE 1 Rp32.000
7 51761-78R20-000 CLAMP,BK PIPE FRAME DOUBLE 1 Rp30.500
8 09403-06401-000 CLAMP (ID:8) 4 Rp16.500
9 02162-0616A-000 SCREW (6X16) 4 Rp3.000
10 51560-78R00-000 HOSE,RR BRAKE FLEXIBLE,R 1 Rp139.500
10 51560-78R00-000 HOSE,RR BRAKE FLEXIBLE,R 1 Rp139.500
12 09383M13004-000
SUB: 09383-13003-000		 E RING 4 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
