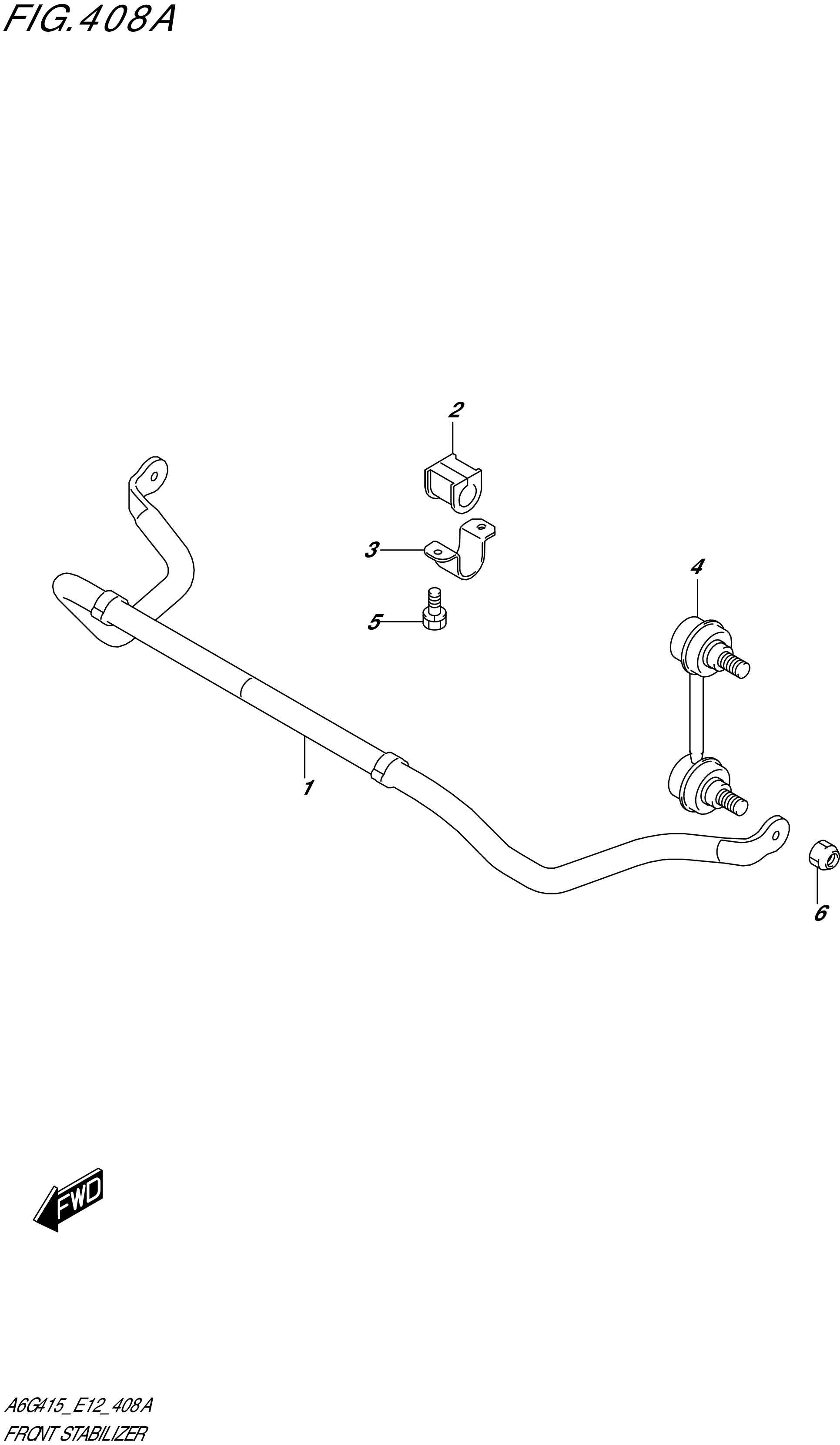

FIG. 408A- FRONT STABILIZER

FIG. 408A- FRONT STABILIZER
No No. Part Description Qty Price Per Pcs Remarks
1 42311-77R00-000 BAR,FR STABILIZER 1 Rp1.879.500
2 42412-77R00-000 BUSHING,FR STABILIZER MOUNT 2 Rp62.500
3 42415-77R00-000 BRACKET,STABILIZER BAR MOUNT 2 Rp113.500
4 42420-81A10-000 JOINT,STABILIZER BALL 2 Rp559.000
5 09117-08101-000 BOLT (8X25) 4 Rp26.500
6 09159-10118-000 NUT 4 Rp22.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
