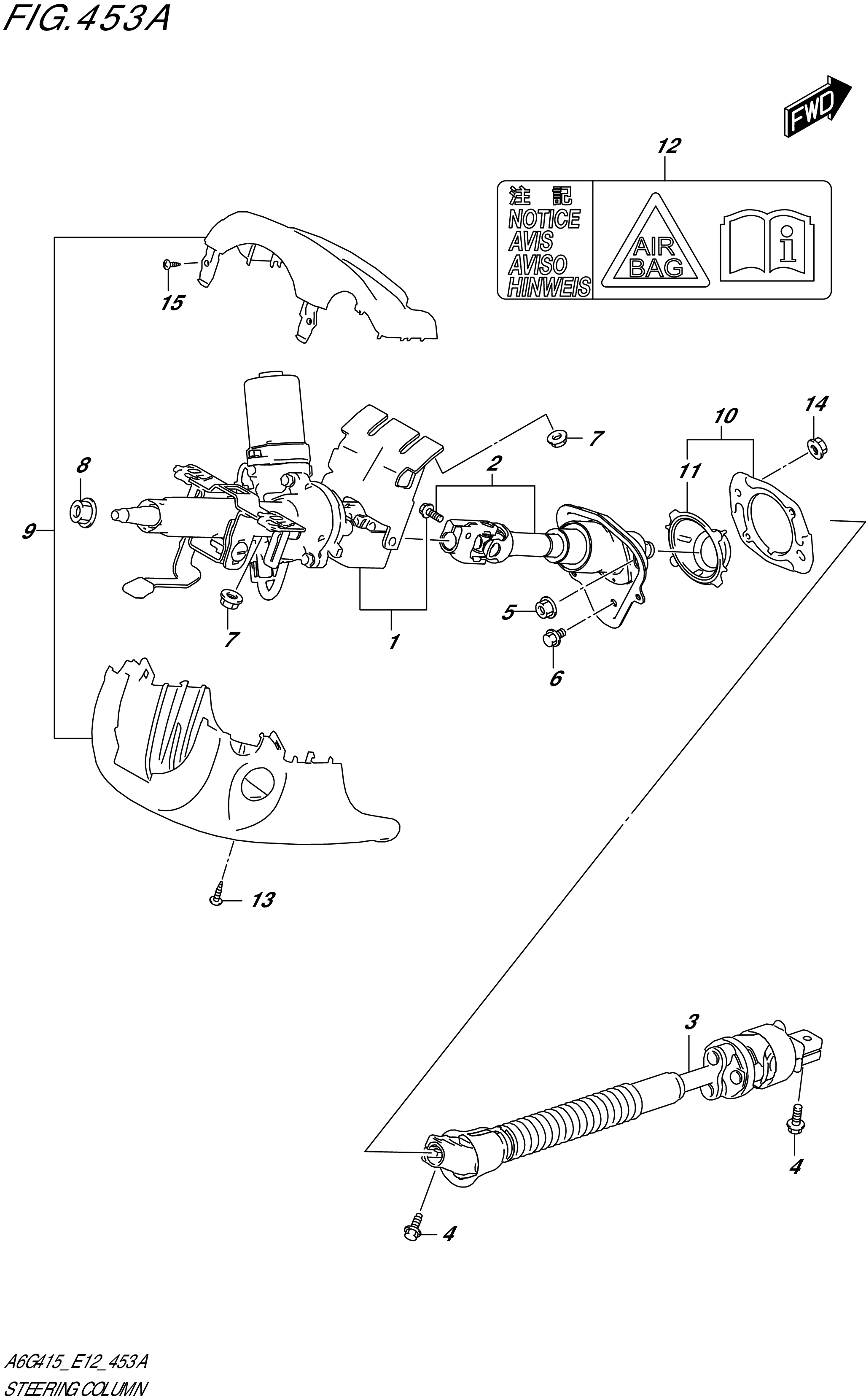

FIG. 453A- STEERING COLUMN

FIG. 453A- STEERING COLUMN
No No. Part Description Qty Price Per Pcs Remarks
1 48210-78R22-000
SUB: 48210-78R20-000		 SHAFT ASSY,STRG COLUMN UPR 1 Rp14.495.000
2 48240-78R02-000
SUB: 48240-78R00-000		 SHAFT ASSY,STRG COLUMN LWR 1 Rp3.303.500
3 48220-78R00-000 SHAFT ASSY,STRG LWR 1 Rp4.207.000
4 09117-08107-000 BOLT (8X30) 2 Rp22.000
5 08316-1008A-000 NUT (B:12) 2 Rp3.500
6 01551-0812A-000 BOLT 1 Rp18.500
7 08316-1008A-000 NUT 4 Rp3.500
8 08316-1012A-000
SUB: 08316B1012AN000		 NUT 1 Rp6.500
9 48400-78R50-5PK COVER ASSY,STEERING COLUMN (BLACK) 1 Rp443.500
10 48490-78R00-000 SEAL ASSY,STRG SHAFT 1 Rp204.500
11 48492-78R00-000 .SEAL,STRG SHAFT 1 Rp191.500
12 79172-78R00-000 LABEL,STEERING COLUMN AIRBAG 1 Rp31.500
13 09136M05030-000 SCREW (5X12) 1 Rp4.500
14 DISCONTINUE
SUB: 09159-06108-000		 NUT (M6) 2 -
15 03211-0512B-000 SCREW 2 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
