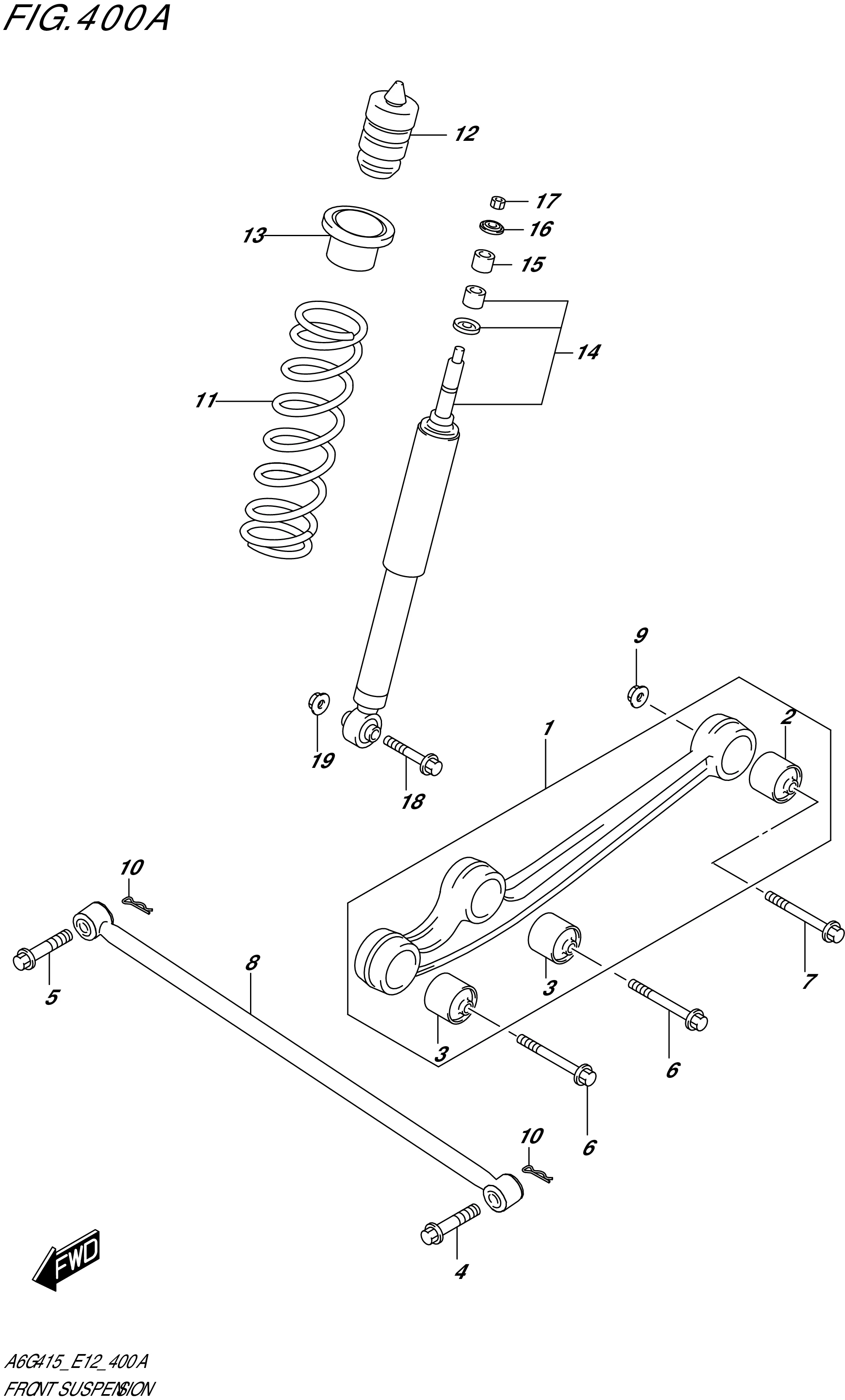

FIG. 400A- FRONT SUSPENSION

FIG. 400A- FRONT SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 45200-77R00-000 ARM ASSY,FR LEADING 2 Rp3.657.500
2 46213-77R00-000 .BUSHING,LEADING ARM BODY SIDE 2 Rp368.000
3 46283-77R00-000 .BUSHING,LEADING ARM AXLE SIDE 4 Rp347.500
4 45214-77R01-000
SUB: 45214-77R00-000		 BOLT,FR LATERAL ROD BODY SIDE 1 Rp250.500
5 45215-77R01-000
SUB: 45215-77R00-000		 BOLT,FR LATERAL ROD 1 Rp151.000
6 45216-77R01-000
SUB: 45216-77R00-000		 BOLT,LEADING ARM AXLE SIDE 4 Rp95.000
7 45217-77R01-000
SUB: 45217-77R00-000		 BOLT,LEADING ARM BODY SIDE 2 Rp86.000
8 45300-77R00-000 ROD ASSY,FR LATERAL 1 Rp905.500
9 08316-1012A-000
SUB: 08316B1012AN000		 NUT (M12) 2 Rp6.500
10 09385-12002-000
SUB: 09385B12002N000		 PIN,SNAP 2 Rp4.500
11 41111-78R01-000
SUB: 41111-78R00-000		 SPRING,FR COIL 2 Rp1.189.000
12 42111-81A10-000 STOPPER,FRONT BUMP 2 Rp191.000
13 41341-66H00-000 SEAT,REAR SPRING UPPER 2 Rp118.500
14 41610-78R00-000 ABSORBER,SHOCK 2 Rp1.777.000
15 41611-77R00-000 BUSHING,SHOCK ABS RUBBER 2 Rp102.000
16 41613-77R00-000 WASHER,SHOCK ABSORBER 2 Rp86.500
17 41814-63J00-000 NUT,RR SHOCK ABSORBER UPR 2 Rp53.000
18 09103-12118-000 BOLT (12X50) 2 Rp33.000
19 08316-1012A-000
SUB: 08316B1012AN000		 NUT (M12) 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
