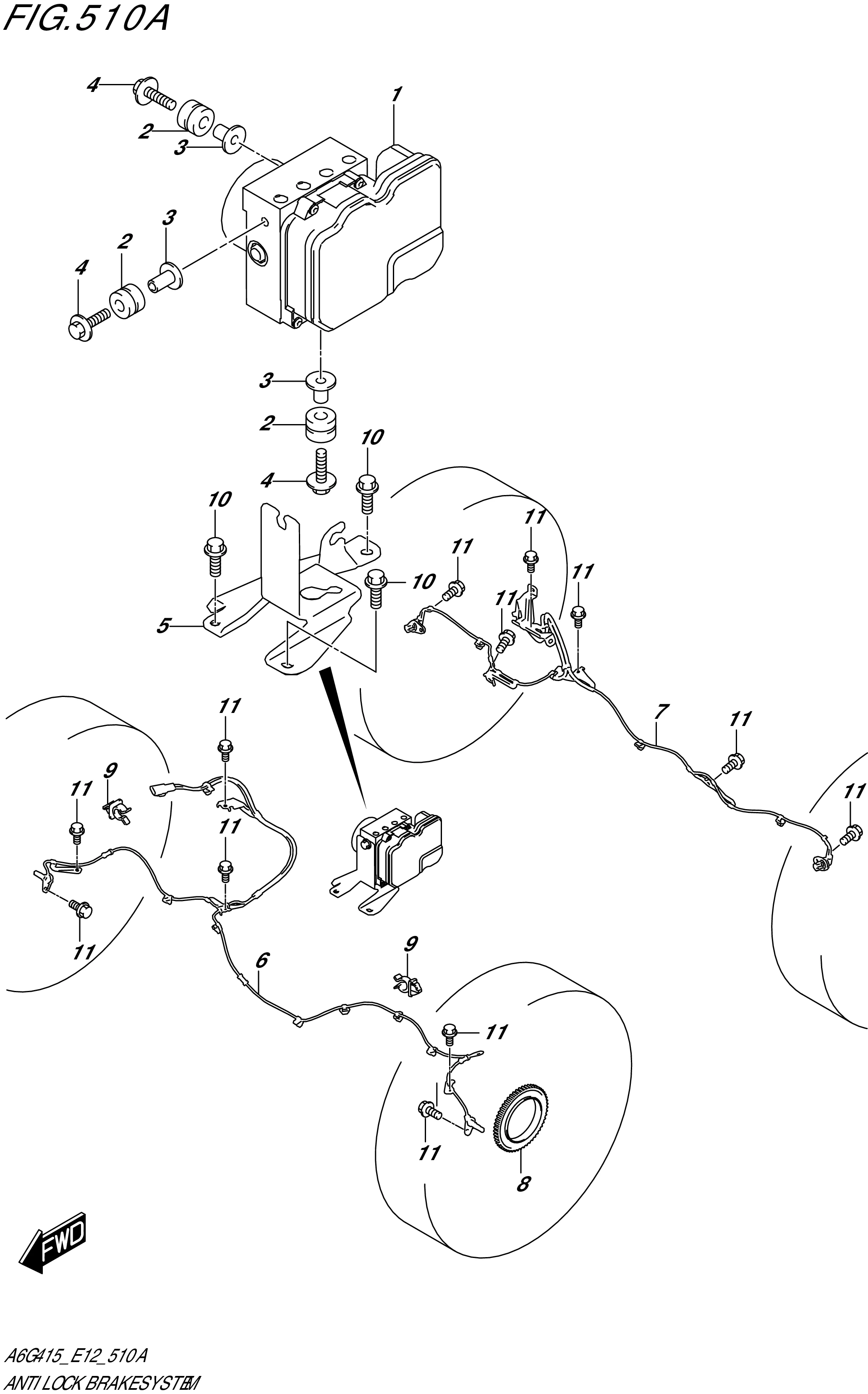

FIG. 510A- ANTI LOCK BRAKE SYSTEM

FIG. 510A- ANTI LOCK BRAKE SYSTEM
No No. Part Description Qty Price Per Pcs Remarks
1-1 56130-78RD0-000 ACTUATOR ASSY,ESP 1 Rp15.790.000
1-2 56130-78RC4-000
SUB: 56130-78RC0-000		 ACTUATOR ASSY,ESP 1 Rp15.780.000
2 56112-60K01-000 DAMPER,ACTUATOR MOUNT 3 Rp53.500
3 56113-60K01-000 SPACER,ACTUATOR MOUNT 3 Rp66.000
4 09116-06146-000 BOLT (6X25) 3 Rp18.000
5 56161-78R00-000 BRACKET,ESP ACTUATOR 1 Rp247.500
6 56200-78R00-000 SENSOR ASSY,FR WHEEL SPEED 1 Rp1.630.000
7 56300-78R00-000 SENSOR ASSY,RR WHEEL SPEED 1 Rp1.822.000
8 56411-81A10-000 RING,FRONT WHEEL SPEED SENSOR 2 Rp729.000
9 09403-08321-000 CLAMP (8X8) 2 Rp20.000
10 01551-0816C-000 BOLT 3 Rp13.500
11 02162-0616A-000 SCREW (6X16) 12 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
