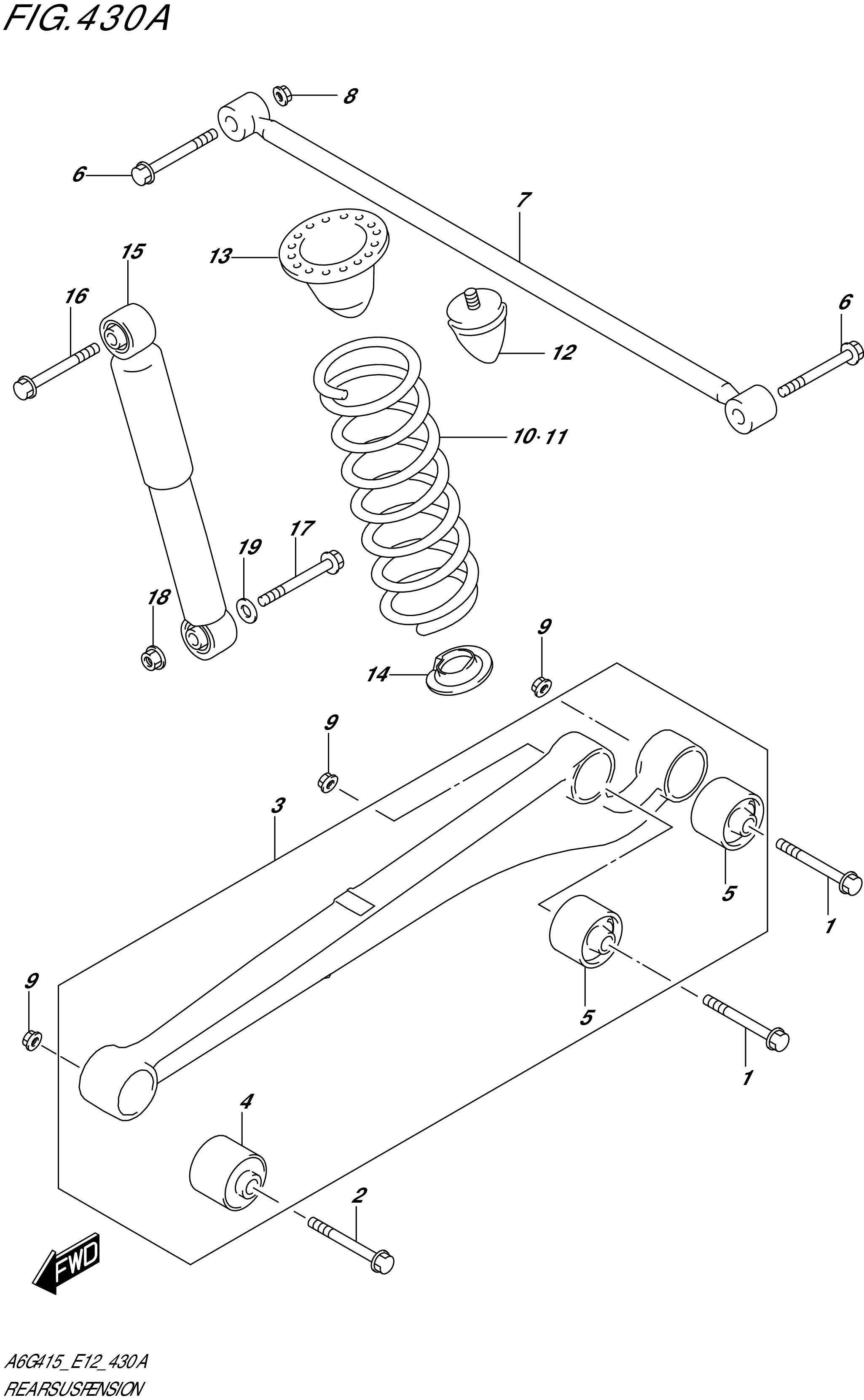

FIG. 430A- REAR SUSPENSION

FIG. 430A- REAR SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 45216-77R01-000
SUB: 45216-77R00-000		 BOLT,LEADING ARM AXLE SIDE 4 Rp95.000
2 45217-77R01-000
SUB: 45217-77R00-000		 BOLT,LEADING ARM BODY SIDE 2 Rp86.000
3 46200-77R00-000 ARM ASSY,RR TRAILING 2 Rp3.550.500
4 46213-77R00-000 .BUSHING,LEADING ARM BODY SIDE 2 Rp368.000
5 46282-77R00-000 .BUSHING,TRAILING ARM AXLE SIDE 4 Rp344.500
6 46215-77R01-000
SUB: 46215-77R00-000		 BOLT,RR LATERAL ROD 2 Rp122.500
7 47300-77R00-000 ROD ASSY,RR LATERAL 1 Rp799.000
8 08316-1012A-000
SUB: 08316B1012AN000		 NUT (M12) 1 Rp6.500
9 08316-1012A-000
SUB: 08316B1012AN000		 NUT (M12) 6 Rp6.500
10 41311-77R40-000 SPRING,RR COIL,L 1 Rp1.189.000
11 41311-77R20-000 SPRING,RR COIL,R 1 Rp1.189.000
12 42110-60A10-000 STOPPER,BUMP 2 Rp266.000
13 41211-82CB0-000 SEAT,REAR COIL SPRING 2 Rp187.500
14 41312-64P00-000 SEAT, REAR SPRING LOWER 2 Rp79.000
15 41700-78R00-000 ABSORBER ASSY,RR SHOCK 2 Rp1.583.000
16 09103-12106-000 BOLT (12X52.2) 2 Rp34.500
17 09103-12137-000 BOLT (12X142) 2 Rp65.500
18 08316-1012A-000
SUB: 08316B1012AN000		 NUT (M12) 2 Rp6.500
19 09164-12033-000 WASHER (12.6X45X2.6) 2 Rp47.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
