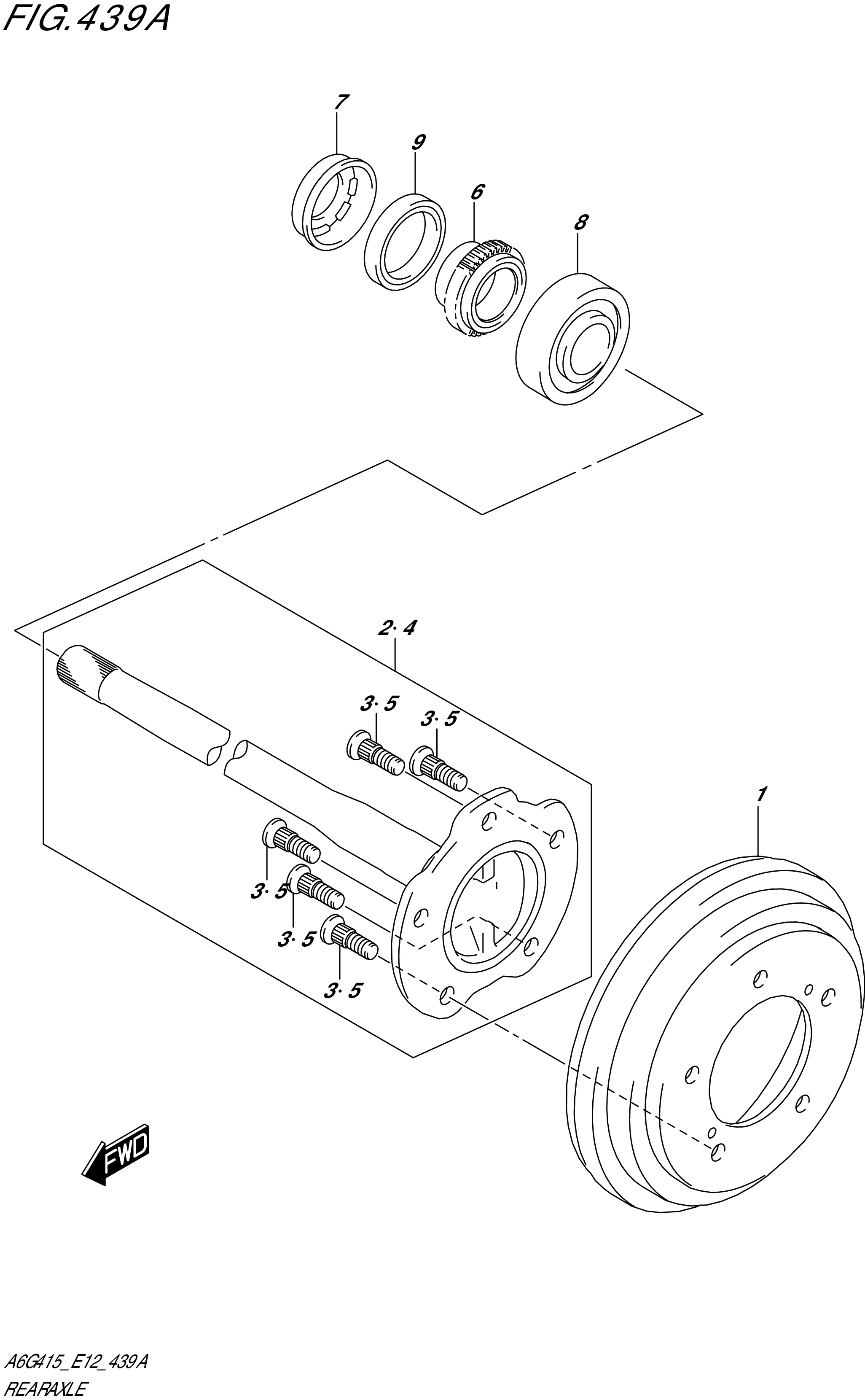

FIG. 439A- REAR AXLE

FIG. 439A- REAR AXLE
No No. Part Description Qty Price Per Pcs Remarks
1 43511-78R00-000 DRUM,RR BRAKE 2 Rp2.180.000
2 44210-78820-000 SHAFT SET,RR AXLE,R 1 Rp3.689.500
3 09119-12012-000 .BOLT (12X38) 5 Rp14.500
4 44220-78820-000 SHAFT SET,RR AXLE,L 1 Rp3.801.000
5 09119-12012-000 .BOLT (12X38) 5 Rp14.500
6 43485-76J00-000 RING,RR WHEEL BRG RETAINER 2 Rp479.000
7 43588-73000-000 PROTECTOR,OIL SEAL 2 Rp23.000
8 09269-35009-000 BEARING (35X72X22) 2 Rp573.500
9 09282-48006-000 SEAL,OIL (46X62X9) 2 Rp65.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
