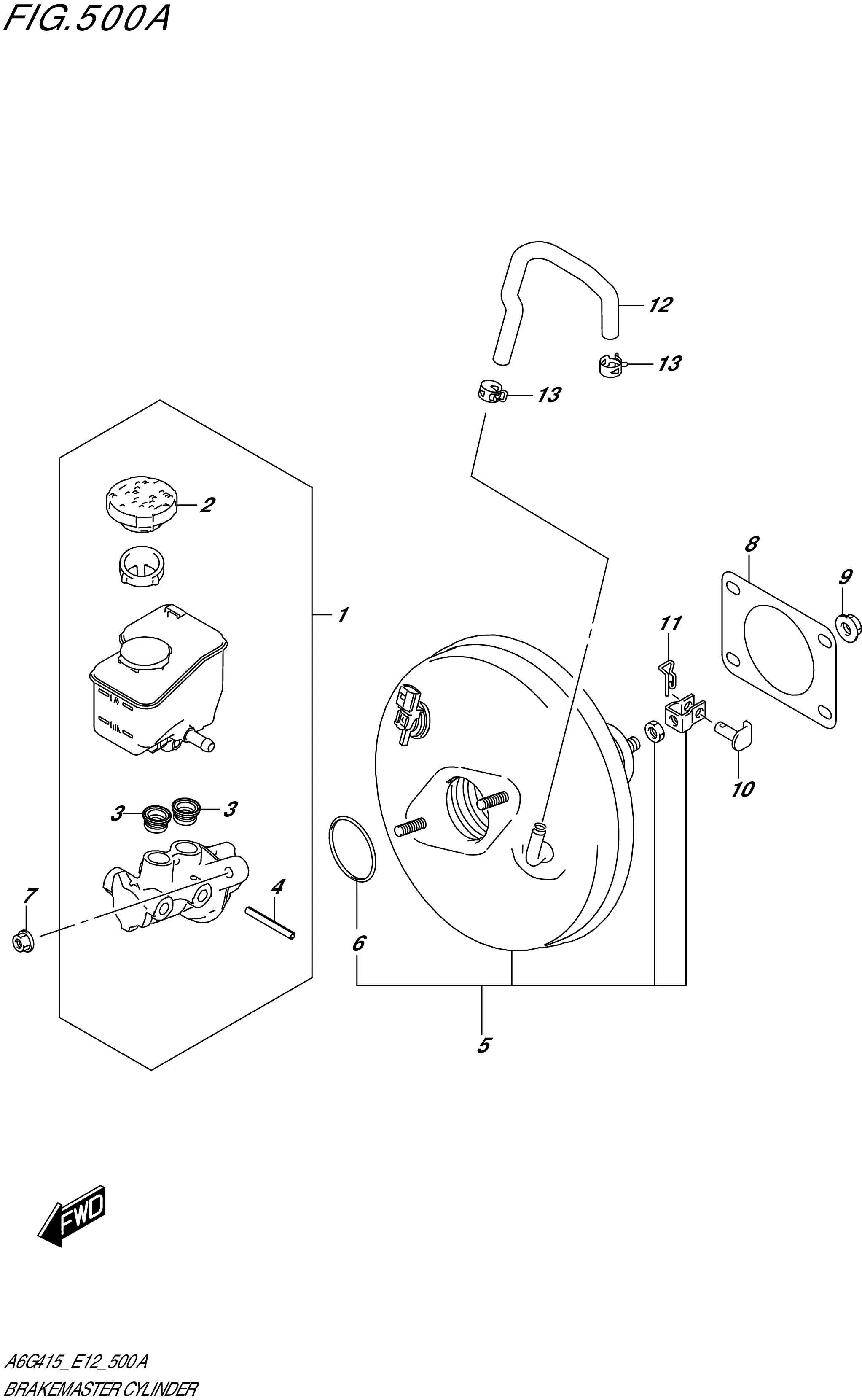

FIG. 500A- BRAKE MASTER CYLINDER

FIG. 500A- BRAKE MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1-1 51100-78R10-000 CYLINDER ASSY,BRAKE MASTER 1 Rp3.394.000
1-2 51100-78R00-000 CYLINDER ASSY,BRAKE MASTER 1 Rp3.404.000
2 51220-77M00-000 .CAP,RESERVOIR 1 Rp227.500
3 51232-65J00-000 .GROMMET,RSVR CONNECTOR 2 Rp39.500
4 51233M65J00-000 .SPRING PIN 1 Rp29.500
5-1 51300-78R10-000 BOOSTER ASSY,BRAKE MASTER 1 Rp3.691.000
5-2 51300-78R00-000 BOOSTER ASSY,BRAKE MASTER 1 Rp4.207.000
6 51311-65J00-000 .SEAL SET 1 Rp121.000
7 51313-65J00-000 NUT,BOOSTER 2 Rp42.500
8 51132-82003-000 PACKING,BRAKE MASTER CYLINDER 1 Rp33.000
9 09159-08150-000 NUT (M8X1.25) 4 Rp16.500
10 09200M08052-000
SUB: 09200-08069-000		 PIN (D:8,L1:23,L2:17.5) 1 Rp13.500
11 09385-08007-000 PIN,SNAP (L:21) 1 Rp16.500
12 51010-78R00-000 HOSE,BRAKE VACUUM INTAKE 1 Rp158.500
13 09401-14404-000 CLIP (ID:14.5) 2 Rp16.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
