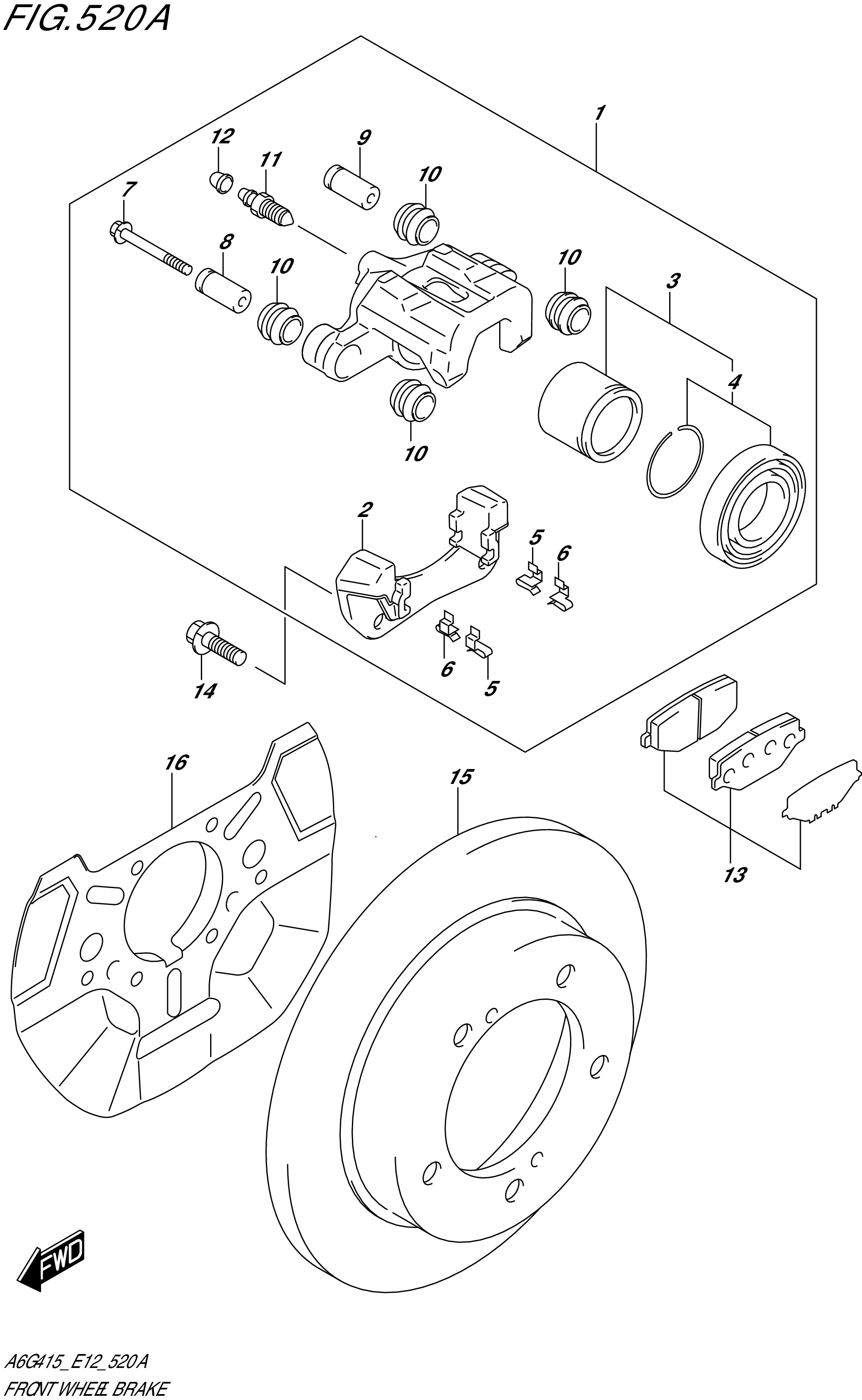

FIG. 520A- FRONT WHEEL BRAKE

FIG. 520A- FRONT WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 55100-78R01-999
SUB: 55100-78R00-999		 CALIPER,FR BRAKE 2 Rp3.811.000
2 55161-80000-000 .MOUNTING,DISC BRAKE 2 Rp472.500
3 55830-78A05-000
SUB: 55830-78A02-000		 .PISTON/SEAL SET 2 Rp526.500
4 55100-82824-000
SUB: 55100-82822-000		 ..SEAL SET,PISTON 2 Rp96.000
5 55235-60B00-000 .PLATE,PAD SUPPORT NO.2 4 Rp66.500
6 55234-60B00-000 .PLATE,PAD SUPPORT NO.1 4 Rp72.000
7 55164-61G50-000 .BOLT,BRAKE CALIPER 4 Rp45.000
8 55191-61G51-000 .BUSHING,CYLINDER SLIDER 2 Rp117.500
9 55192-61G01-000 .BUSHING,CYLINDER SLIDER 2 Rp140.500
10 55201-86040-000 .BOOT,BUSH DUST 8 Rp61.000
11 55151-78451-000
SUB: 55151B78451N000		 .PLUG,BLEEDER (M10X1) 2 Rp45.500
12 55156M66310-000 .CAP,BLEEDER PLUG (M10X1) 2 Rp23.500
13 55810-78R01-000
SUB: 55810-78R00-000		 PAD SET 1 Rp1.456.000
14 09117-12012-000 BOLT (12X32) 4 Rp38.500
15 55211-76J02-000 DISC,FRONT BRAKE 2 Rp1.587.000
16 DISCONTINUE
SUB: 55221-78R00-000		 COVER,BRAKE DISC DUST 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
