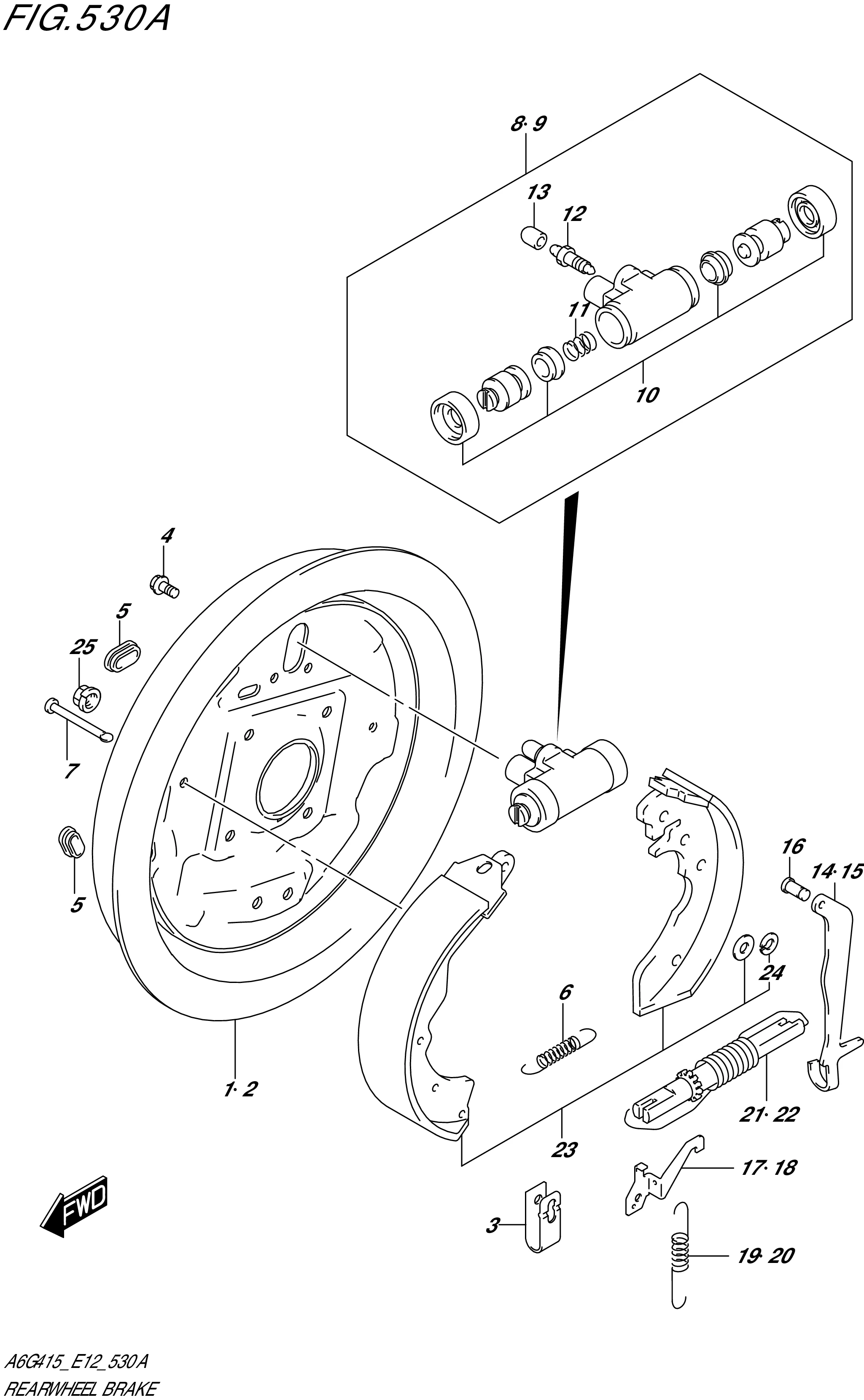

FIG. 530A- REAR WHEEL BRAKE

FIG. 530A- REAR WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 53110-78R00-000 BACK PLATE,RR BRAKE,R 1 Rp655.500
2 53160-78R00-000 BACK PLATE,RR BRAKE,L 1 Rp655.500
3 52243-70AA0-000 SPRING,SHOE CLAMP 4 Rp38.000
4 53131-70AA0-000 BOLT 4 Rp5.500
5 53141-70A00-000 PLUG,BACKING PLATE 4 Rp6.500
6 53231-81A00-000 SPRING,LOWER 2 Rp11.500
7 53241-50G10-000 PIN,SHOE HOLD DOWN 4 Rp8.500
8 53401-76J20-000 CYLINDER ASSY,RR BRAKE,R 1 Rp849.500
9 53402-81A10-000 CYLINDER ASSY,RR BRAKE,L 1 Rp803.500
10 53400-81A10-000 .PISTON CUP/BOOT SET 2 Rp57.000
11 53441-81A00-000 .SPRING,WHEEL CYLINDER 2 Rp26.000
12 52473-70AA0-000 .SCREW,BLEEDER 1 Rp11.000
13 52474-70AA0-000 .CAP,BLEEDER SCREW 1 Rp8.500
14 53721-81A01-000 LEVER,PARKING,R 1 Rp311.500
15 53726-81A01-000 LEVER,PARKING,L 1 Rp242.500
16 53731-50G10-000 PIN, PARKING LEVER 2 Rp31.000
17 53781-81A00-000 LEVER,ADJUSTER,R 1 Rp150.500
18 53782-81A00-000 LEVER,ADJUSTER,L 1 Rp146.000
19 53791-81A00-000 SPRING,ADJUSTER,R 1 Rp34.500
20 53792-81A00-000 SPRING,ADJUSTER,L 1 Rp33.000
21 53810-81A01-000 SPRING & ROD ASSY,R 1 Rp352.500
22 53860-81A01-000 SPRING & ROD ASSY,L 1 Rp352.500
23 53200-76J01-000 SHOE SET, BRAKE 1 Rp1.127.000
24 53751-50G10-000 .CLIP 2 Rp27.000
25 09159-08075-000 NUT (M8) 8 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
