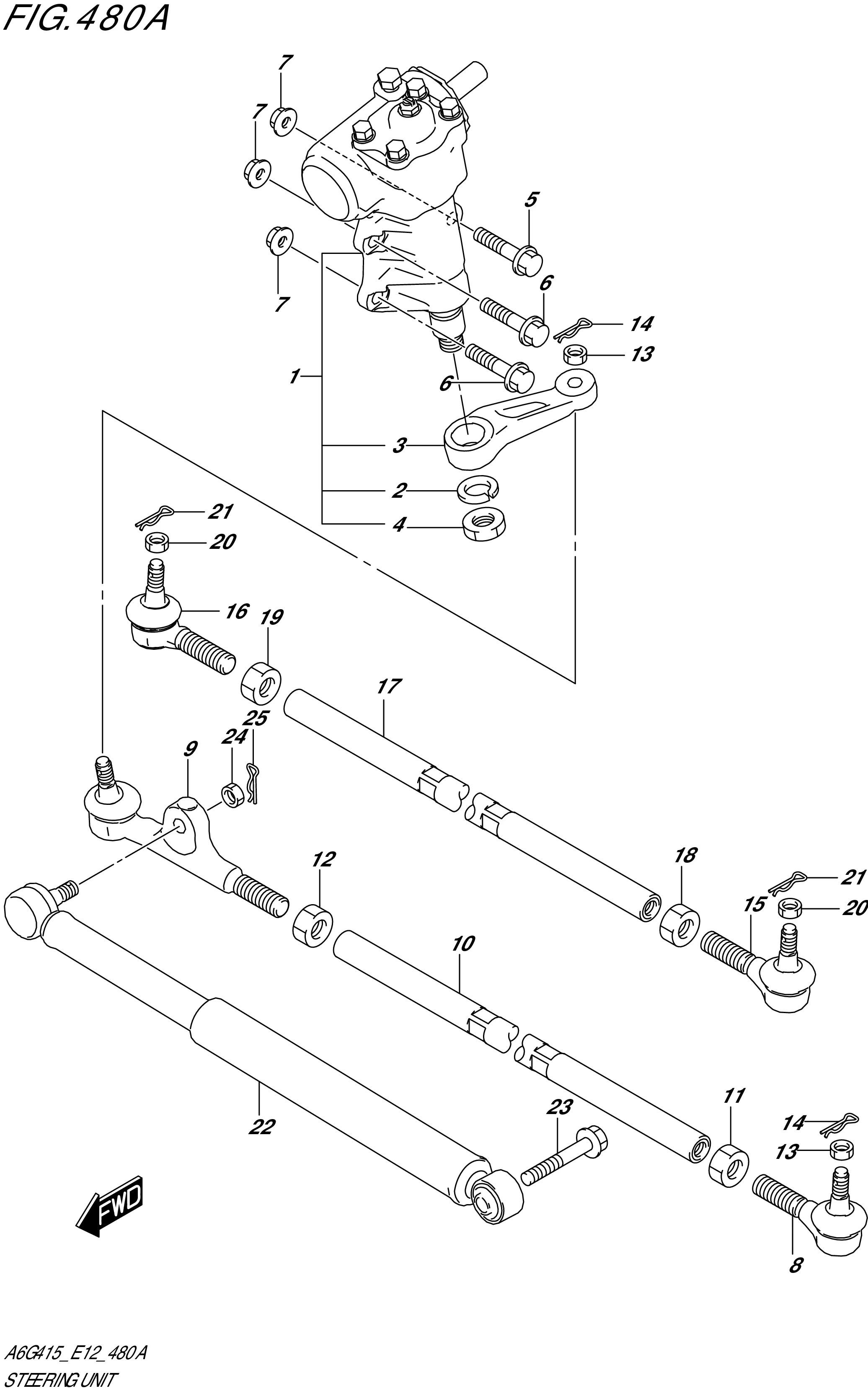

FIG. 480A- STEERING UNIT

FIG. 480A- STEERING UNIT
No No. Part Description Qty Price Per Pcs Remarks
1 48600-78R00-000 BOX ASSY,STRG GEAR 1 Rp13.041.500
2 48644-80010-000 .WASHER,PITMAN ARM LOCK 1 Rp41.000
3 48671-78R00-000 .ARM,PITMAN 1 Rp1.134.000
4 48674-63240-000 .NUT 1 Rp74.500
5 09100-12128-000 BOLT (12X70) 1 Rp42.000
6 09100-12129-000 BOLT (12X85) 2 Rp48.000
7 08316-1012A-000
SUB: 08316B1012AN000		 NUT (M12) 3 Rp6.500
8 48810-78R00-000 END,ROD,L 1 Rp585.500
9 48820-78R10-000 END,ROD,R 1 Rp1.444.500
10 48931-78R10-000 ROD,STRG DRAG 1 Rp1.215.000
11 09140-16022-000 NUT (16MM) 1 Rp23.500
12 09140-16023-000 NUT (16MM) 1 Rp24.500
13 09140-12039-000
SUB: 09140B12039N000		 NUT (M12) 2 Rp6.500
14 09385-12002-000
SUB: 09385B12002N000		 PIN,SNAP 2 Rp4.500
15 48810-78R00-000 END,ROD,L 1 Rp585.500
16 48820-78R00-000 END,ROD,R 1 Rp585.500
17 48831-78R10-000 TIE-ROD,STRG 1 Rp1.601.500
18 09140-16022-000 NUT (16MM) 1 Rp23.500
19 09140-16023-000 NUT (16MM) 1 Rp24.500
20 09140-12039-000
SUB: 09140B12039N000		 NUT (M12) 2 Rp6.500
21 09385-12002-000
SUB: 09385B12002N000		 PIN,SNAP 2 Rp4.500
22 48730-78R00-000 DAMPER ASSY,STRG 1 Rp3.341.000
23 09103M12051-000 BOLT (12X50) 1 Rp10.500
24 09140-12039-000
SUB: 09140B12039N000		 NUT (M12) 1 Rp6.500
25 09385-12002-000
SUB: 09385B12002N000		 PIN,SNAP 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
