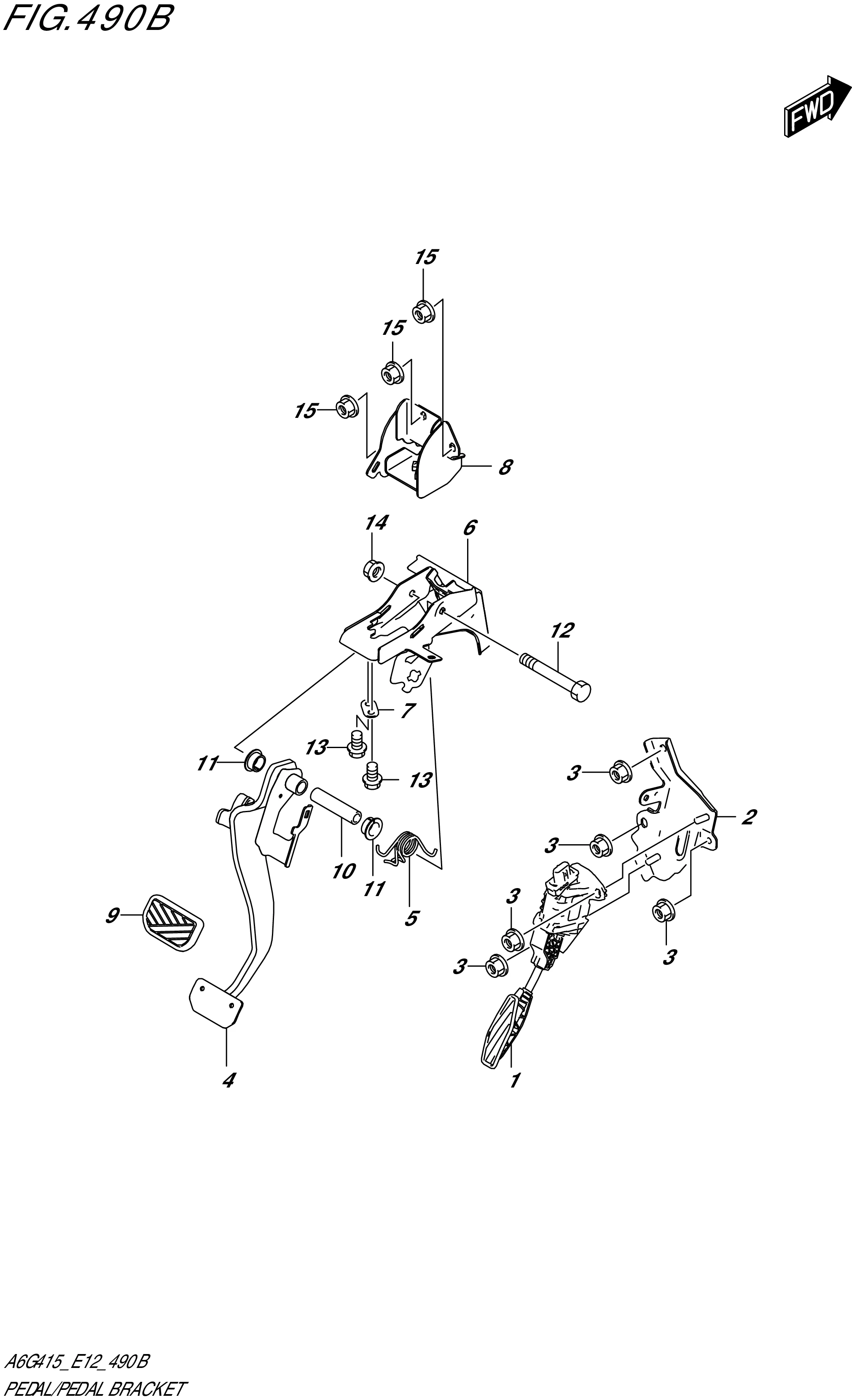

FIG. 490B- PEDAL/PEDAL BRACKET (4AT)

FIG. 490B- PEDAL/PEDAL BRACKET (4AT)
No No. Part Description Qty Price Per Pcs Remarks
1 49400-78R40-000 PEDAL ASSY,ACCELERATOR 1 Rp3.069.000
2 49511-78R00-000 BRACKET,ACCELERATOR PEDAL 1 Rp244.500
3 09159-08150-000 NUT (M8X1.25) 5 Rp16.500
4 49610-78R10-000 PEDAL,BRAKE 1 Rp1.022.000
5 49691-78R00-000 SPRING,BRAKE PEDAL RETURN 1 Rp82.000
6 49710-78R00-000 BRACKET,BRAKE PEDAL 1 Rp1.208.000
7 49719-78R00-000 WASHER,BRAKE UPR BRACKET 1 Rp46.500
8 49730-78R00-000 BRACKET,BRAKE UPR 1 Rp558.000
9 49751M50M10-000 PAD,PEDAL 1 Rp24.000
10 49871-86G00-000 SPACER,CLUTCH PEDAL SHAFT 1 Rp62.000
11 09306M13004-000 BUSH 2 Rp11.500
12 01500-1070A-000 BOLT,BRAKE PEDAL SHAFT 1 Rp37.500
13 01551-0816C-000 BOLT 2 Rp13.500
14 08316-1010A-000 NUT 1 Rp3.500
15 09159-08150-000 NUT (M8X1.25) 3 Rp16.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
