  5. FIG. 50CA - FRONT BRAKE PIPING

New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 400A- FRONT SUSPENSIONFIG. 408A- FRONT STABILIZERFIG. 413A- FRONT AXLEFIG. 416A- WHEEL HUB PIPINGFIG. 430A- REAR SUSPENSIONFIG. 437A- AXLE HOUSINGFIG. 439A- REAR AXLEFIG. 449A- ROAD WHEEL/TIREFIG. 451A- STEERING WHEELFIG. 453A- STEERING COLUMNFIG. 480A- STEERING UNITFIG. 490A- PEDAL/PEDAL BRACKET (5MT)FIG. 490B- PEDAL/PEDAL BRACKET (4AT)FIG. 500A- BRAKE MASTER CYLINDERFIG. 510A- ANTI LOCK BRAKE SYSTEMFIG. 520A- FRONT WHEEL BRAKEFIG. 530A- REAR WHEEL BRAKEFIG. 542A- PARKING BRAKEFIG. 50CA - FRONT BRAKE PIPINGFIG. 50DA - REAR BRAKE PIPING

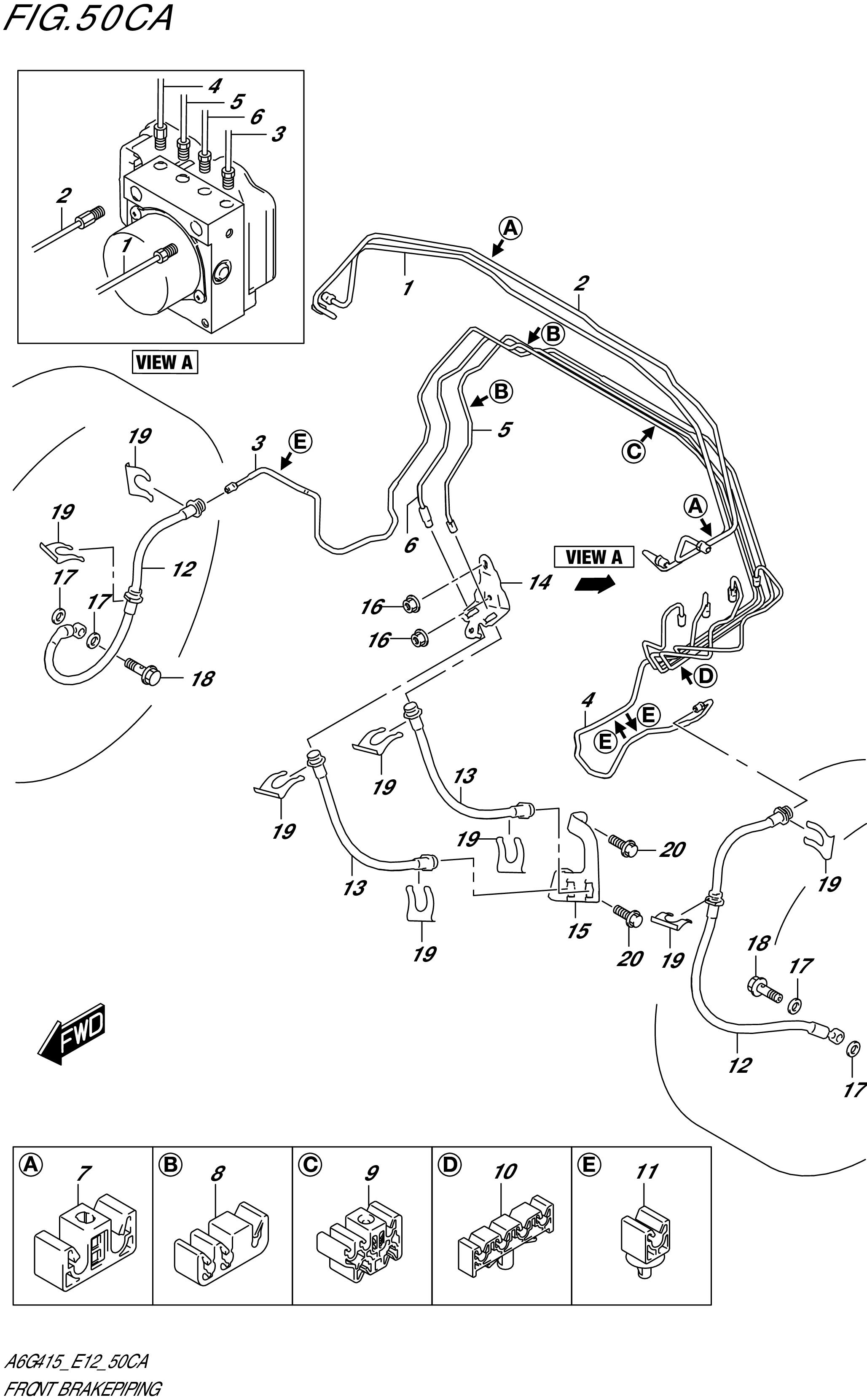

FIG. 50CA - FRONT BRAKE PIPING

FIG. 50CA - FRONT BRAKE PIPING
No No. Part Description Qty Price Per Pcs Remarks
1 51410-78R00-000 PIPE,MA PRI TO HU 1 Rp200.000
2 51420-78R00-000 PIPE,MA SEC TO HU 1 Rp206.000
3 51430-78R00-000 PIPE,HU TO FR BK HOSE,R 1 Rp232.000
4 51440-78R00-000 PIPE,HU TO FR BK HOSE,L 1 Rp146.000
5 51450-78R00-000 PIPE,HU TO HOSE RR,R 1 Rp186.500
6 51460-78R00-000 PIPE,HU TO HOSE RR,L 1 Rp192.000
7 51751-65J30-000 CLAMP,BK PIPE FR SIDE 2 Rp38.500
8 51751-77E00-000 CLAMP,BRAKE PIPE 2 Rp34.500
9 51751-78R00-000 CLAMP,BK PIPE DASH 5 1 Rp35.500
10 51761-68H40-000 CLAMP,BK PIPE 1 Rp35.500
11 51761-78R00-000 CLAMP,BK PIPE FENDER 3 Rp17.000
12 51540-78R00-000 HOSE,FR BRAKE FLEXIBLE 2 Rp293.000
13 51580-78R00-000 HOSE,BODY TO FRAME FLEX 2 Rp117.500
14 51710-78R00-000 BRACKET,HOSE BODY DASH 1 Rp82.500
15 51712-78R00-000 BRACKET,HOSE BODY FRAME 1 Rp114.000
16 DISCONTINUE
SUB: 09159-06108-000		 NUT (M6) 2 -
17 09161-10009-000 WASHER(10X15X1.5) 4 Rp12.500
18 51561M55K00-000 UNION (M10X1.0X23) 2 Rp8.500
19 09383M13004-000
SUB: 09383-13003-000		 E RING 8 Rp7.000
20 02162-0616A-000 SCREW (6X16) 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
