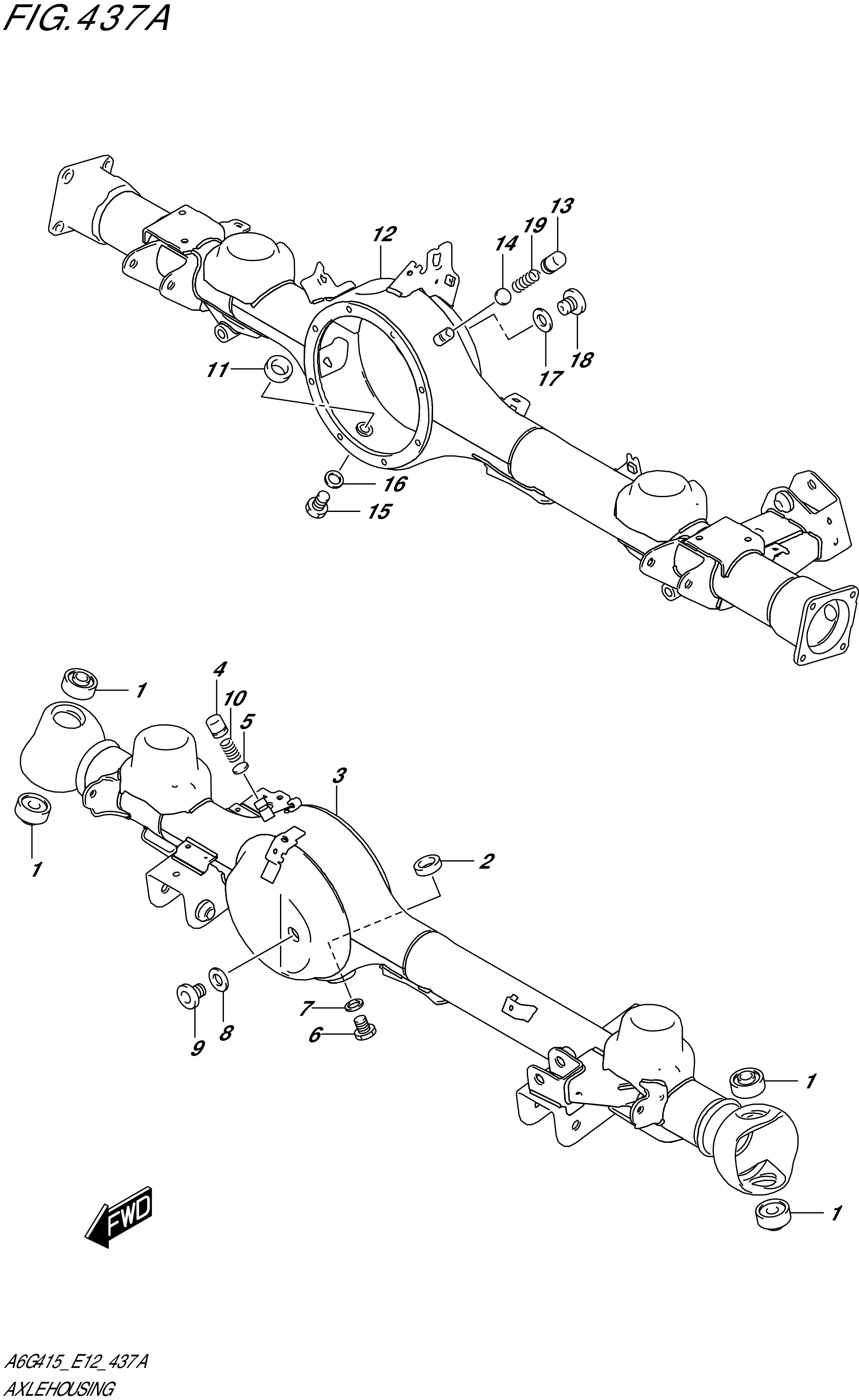

FIG. 437A- AXLE HOUSING

FIG. 437A- AXLE HOUSING
No No. Part Description Qty Price Per Pcs Remarks
1 09265-15006-000 BEARING (15X42X14.25) 4 Rp259.500
2 24861-71B70-000 MAGNET,OIL CLEANER 1 Rp73.000
3 45500-78R00-000 HOUSING,FR AXLE 1 Rp11.371.000
4 46541-52002-000 CAP,BREATER 1 Rp32.000
5 46542-52001-000 VALVE,RR AXLE HSG BREATHER 1 Rp15.000
6 46543-81P50-000 PLUG,RR AXLE HSG DRAIN 1 Rp39.500
7 09168-12002-000
SUB: 09168B12002N000		 GASKET (12.1X16.2X3.7) 1 Rp10.000
8 09168-20002-000 GASKET (20.5X30X1.5) 1 Rp17.000
9 09248-20003-000 PLUG (M20) 1 Rp28.500
10 09440-12004-000 SPRING (L:22) 1 Rp14.000
11 24861-71B70-000 MAGNET,OIL CLEANER 1 Rp73.000
12 46510-78R00-000 HOUSING,RR AXLE 1 Rp10.230.000
13 46541-52002-000 CAP,BREATER 1 Rp32.000
14 46542-52001-000 VALVE,RR AXLE HSG BREATHER 1 Rp15.000
15 46543-81P50-000 PLUG,RR AXLE HSG DRAIN 1 Rp39.500
16 09168-12002-000
SUB: 09168B12002N000		 GASKET (12.1X16.2X3.7) 1 Rp10.000
17 09168-20002-000 GASKET (20.5X30X1.5) 1 Rp17.000
18 09248-20003-000 PLUG (M20) 1 Rp28.500
19 09440-12004-000 SPRING (L:22) 1 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
