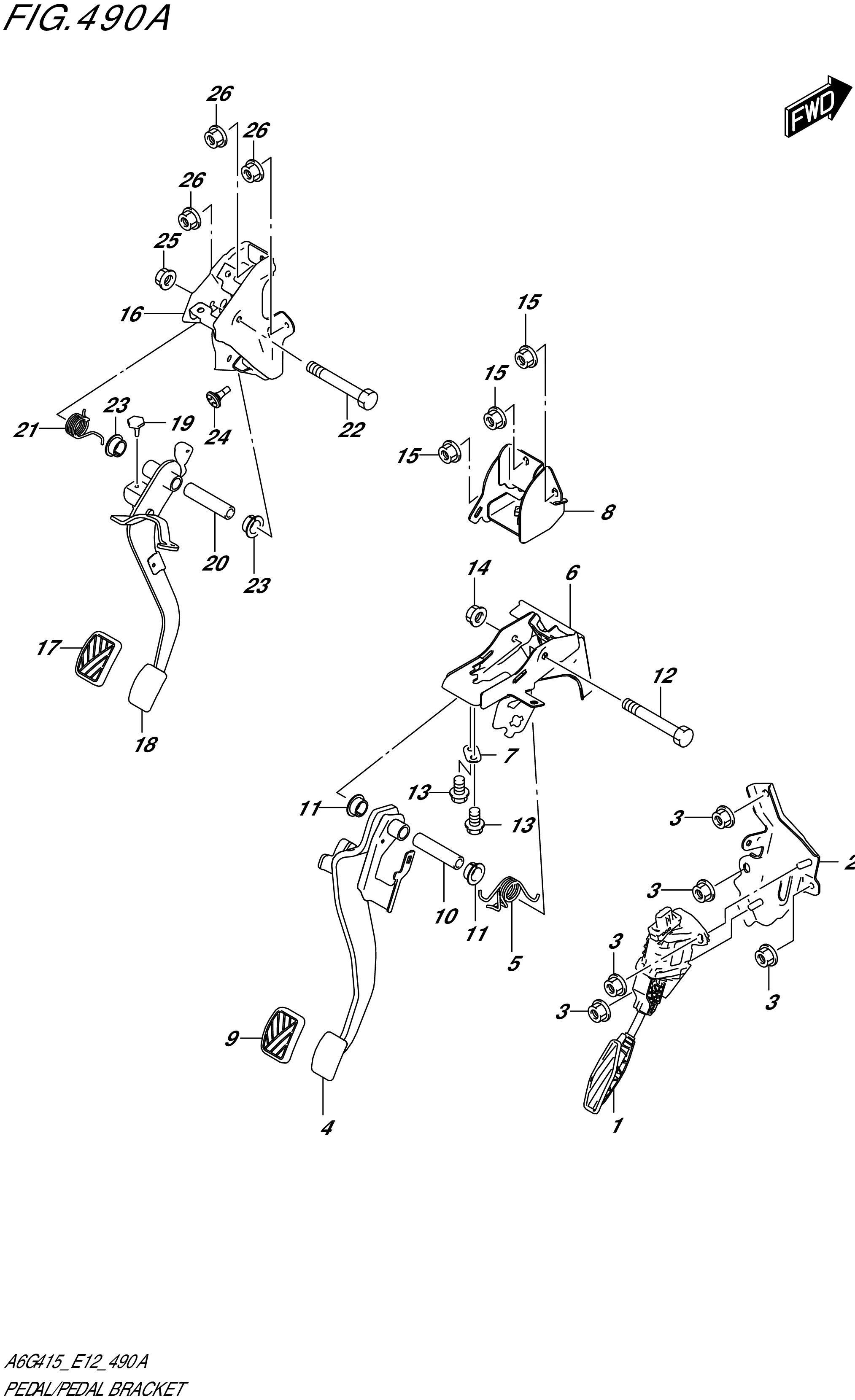

FIG. 490A- PEDAL/PEDAL BRACKET (5MT)

FIG. 490A- PEDAL/PEDAL BRACKET (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 49400-78R40-000 PEDAL ASSY,ACCELERATOR 1 Rp3.069.000
2 49511-78R00-000 BRACKET,ACCELERATOR PEDAL 1 Rp244.500
3 09159-08150-000 NUT (M8X1.25) 5 Rp16.500
4 49610-78R00-000 PEDAL,BRAKE 1 Rp1.022.000
5 49691-78R00-000 SPRING,BRAKE PEDAL RETURN 1 Rp82.000
6 49710-78R00-000 BRACKET,BRAKE PEDAL 1 Rp1.208.000
7 49719-78R00-000 WASHER,BRAKE UPR BRACKET 1 Rp46.500
8 49730-78R00-000 BRACKET,BRAKE UPR 1 Rp558.000
9 49751M58J00-000 PAD,PEDAL 1 Rp9.500
10 49871-86G00-000 SPACER,CLUTCH PEDAL SHAFT 1 Rp62.000
11 09306M13004-000 BUSH 2 Rp11.500
12 01500-1070A-000 BOLT,BRAKE PEDAL SHAFT 1 Rp37.500
13 01551-0816C-000 BOLT 2 Rp13.500
14 08316-1010A-000 NUT 1 Rp3.500
15 09159-08150-000 NUT (M8X1.25) 3 Rp16.500
16 49720-78R00-000 BRACKET,CLUTCH PEDAL 1 Rp616.500
17 49751M58J00-000 PAD,PEDAL 1 Rp9.500
18 49810-78R00-000 PEDAL,CLUTCH 1 Rp751.500
19 49825M74L10-000 CUSHION,CLUTCH PEDAL START SW 1 Rp9.000
20 49871-86G00-000 SPACER,CLUTCH PEDAL SHAFT 1 Rp62.000
21 49891-78R00-000 SPRING,CLUTCH PEDAL 1 Rp85.000
22 09100-10124-000 BOLT (10X75) 1 Rp19.500
23 09306M13004-000 BUSH 2 Rp11.500
24 09321M06026-000 CUSHION 1 Rp4.500
25 08316-1010A-000 NUT 1 Rp3.500
26 09159-08150-000 NUT (M8X1.25) 3 Rp16.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
