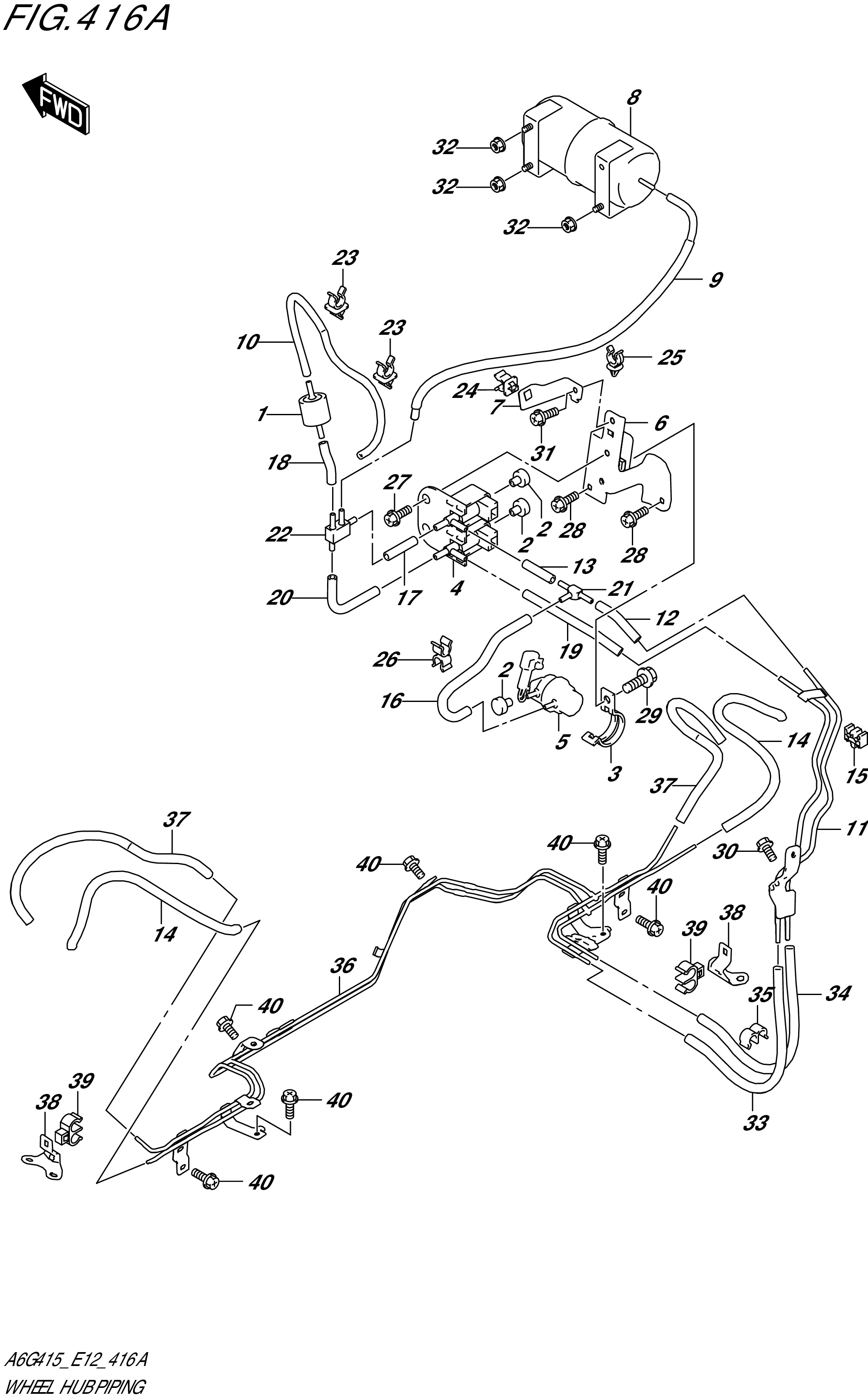

FIG. 416A- WHEEL HUB PIPING

FIG. 416A- WHEEL HUB PIPING
No No. Part Description Qty Price Per Pcs Remarks
1 18131-82150-000 VALVE,CHECK 1 Rp156.500
2 18133-80401-000 FILTER 3 Rp97.500
3 18569-78100-000 CLAMP 1 Rp31.000
4 27951-85600-000 VALVE,VACUUM SWITCH 1 Rp1.656.500
5 43830-78R00-000 SWITCH,VACUUM 1 Rp1.047.000
6 43840-77R00-000 BRACKET,VSV 1 Rp217.000
7 43843-77R00-000 BRACKET,CHECK VALVE 1 Rp93.000
8 43850-81A00-000 TANK,VACUUM ACCUMLATION 1 Rp1.224.000
9 43856-77R00-000 HOSE,VACUUM TANK 1 Rp142.000
10 43860-78R00-000 HOSE,VACUUM OUTLET 1 Rp60.000
11 43870-77R00-000 PIPE,VALVE TO AXLE VACUUM 1 Rp699.500
12 09355-35006-601
SUB: 09355-35754-601		 HOSE (3.5X7.5X601) 1 Rp66.000
13 09355-35006-601
SUB: 09355-35754-601		 HOSE (3.5X7.5X601) 1 Rp66.000
14 43926-77R50-000 HOSE,SPINDLE VACUUM 2WD 2 Rp145.500
15 51761-70F00-000 CLAMP,BK PIPE SIDE MEMBER 1 Rp33.500
16 09355-35006-601
SUB: 09355-35754-601		 HOSE (3.5X7.5X601) 1 Rp66.000
17 09355-35006-601
SUB: 09355-35754-601		 HOSE (3.5X7.5X601) 1 Rp66.000
18 09355-35006-601
SUB: 09355-35754-601		 HOSE (3.5X7.5X601) 1 Rp66.000
19 09355-35006-601
SUB: 09355-35754-601		 HOSE (3.5X7.5X601) 1 Rp66.000
20 09355-35006-601
SUB: 09355-35754-601		 HOSE (3.5X7.5X601) 1 Rp66.000
21 09367-04002-000 CONNECTOR (D:4.5) 1 Rp29.500
22 09367-04003-000 JOINT,4WAY (D:4.5) 1 Rp42.000
23 09403-07306-000 CLAMP 2 Rp21.500
24 09403-07407-000 CLAMP 1 Rp18.000
25 09403-09326-000 CLAMP 1 Rp15.000
26 09408-00067-000 CLIP 1 Rp16.000
27 02162-0612A-000 SCREW (6X12) 1 Rp11.000
28 02162-0612A-000 SCREW (6X12) 2 Rp11.000
29 02162-0612A-000 SCREW (6X12) 1 Rp11.000
30 02162-0612A-000 SCREW (6X12) 1 Rp11.000
31 02162-0612A-000 SCREW (6X12) 1 Rp11.000
32 08316-1006A-000 NUT (6X12) 3 Rp2.000
33 43885-77R00-000 HOSE,VALVE TO AXLE VACUUM 4WD 1 Rp151.000
34 43885-77R10-000 HOSE,VALVE TO AXLE VACUUM 2WD 1 Rp151.000
35 09408-00033-000 CLAMP (ID:7.2X2) 1 Rp17.000
36 43910-78R00-000 PIPE,FR AXLE HSG 1 Rp2.118.000
37 43926-77R00-000 HOSE,SPINDLE VACUUM 4WD 2 Rp155.000
38 45616-77R00-000 BRACKET,KINGPIN HOSE 2 Rp66.000
39 09403-07406-000 CLAMP 2 Rp25.000
40 02162-0616A-000 SCREW (6X16) 6 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
