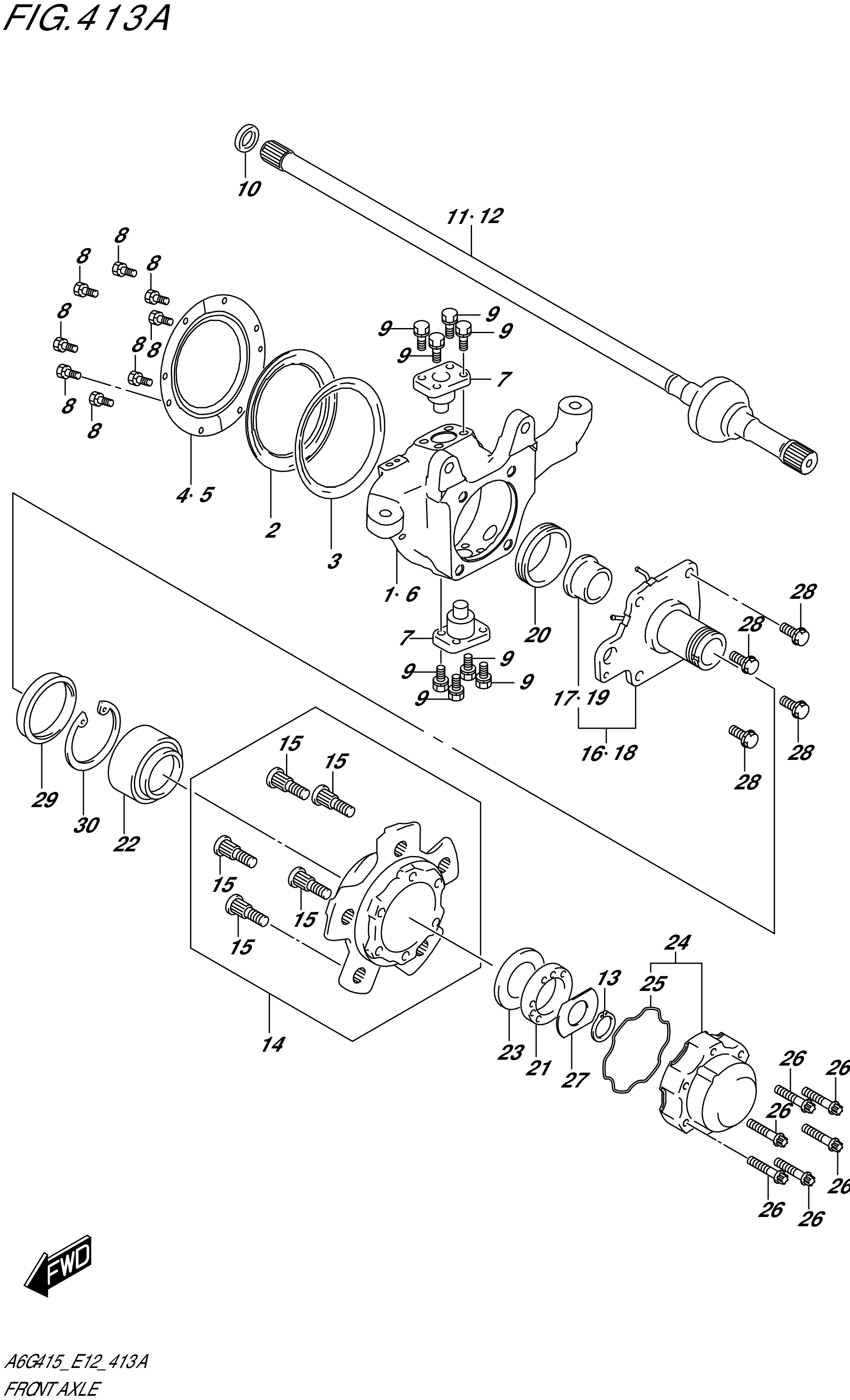

FIG. 413A- FRONT AXLE

FIG. 413A- FRONT AXLE
No No. Part Description Qty Price Per Pcs Remarks
1 45111-78R01-000
SUB: 45111-78R00-000		 KNUCKLE,STRG,R 1 Rp3.288.500
2 45121-81A03-000
SUB: 45121-81A02-000		 SEAL,KNUCKLE 2 Rp402.500
3 45122-81A01-000 RETAINER,KNUCKLE SEAL 2 Rp297.000
4 45123-77R00-000 COVER,KNUCKLE SEAL,R 2 Rp190.000
5 45123-77R50-000 COVER,KNUCKLE SEAL,L 2 Rp190.000
6 45151-78R01-000
SUB: 45151-78R00-000		 KNUCKLE,STRG,L 1 Rp3.288.500
7 45610-63002-000 PIN ASSY,KING 4 Rp622.500
8 45626-81A00-000 BOLT,KNUCKLE SEAL 16 Rp43.000
9 09117-08050-000 BOLT (8X20) 16 Rp17.500
10 43491-77R00-000 SEAL,FR AXLE SHAFT OIL 2 Rp79.500
11 44101-78R00-000 JOINT ASSY,FR AXLE SHAFT,R 1 Rp6.023.500
12 44102-78R00-000 JOINT ASSY,FR AXLE SHAFT,L 1 Rp6.023.500
13 09380-26004-000 CIRCLIP 2 Rp28.500
14 43420-77830-000
SUB: 43420-76840-000		 HUB SET,FRONT WHEEL 2 Rp1.434.000
15 09119-12012-000 .BOLT (12X38) 10 Rp14.500
16 43440-81A20-000 SPINDLE,FR WHEEL,R 1 Rp2.223.500
17 43445-60A11-000 .BUSHING,FR SPINDLE 1 Rp182.500
18 43440-81A30-000 SPINDLE,FR WHEEL,L 1 Rp2.213.500
19 43445-60A11-000 .BUSHING,FR SPINDLE 1 Rp182.500
20 43446-82CB0-000 SEAL,FR WHEEL SPINDLE 2 Rp78.000
21 43461-82CB0-000 NUT,FR WHEEL BRG LOCK 2 Rp584.000
22 43462-84A00-000 BEARING,FRONT WHEEL 2 Rp1.151.000
23 43465-60A00-000 WASHER,FR WHEEL BRG 2 Rp23.000
24 43810-76J02-000 HUB ASSY,AIR LOCKING 2 Rp4.771.500
25 43838-82CB1-000 .GASKET,AIR LOCKING HUB 2 Rp231.500
26 43811-81A00-000 BOLT,AIR LOCKING HUB 12 Rp43.500
27 44182-82CB0-000 WASHER,FR SPINDLE THRUST 2 Rp48.500
28 09117-10057-000 BOLT (10X25) 8 Rp32.500
29 09283-54001-000 SEAL,OIL (54X69X7) 2 Rp99.000
30 09381-68001-000 CIRCLIP 2 Rp46.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
