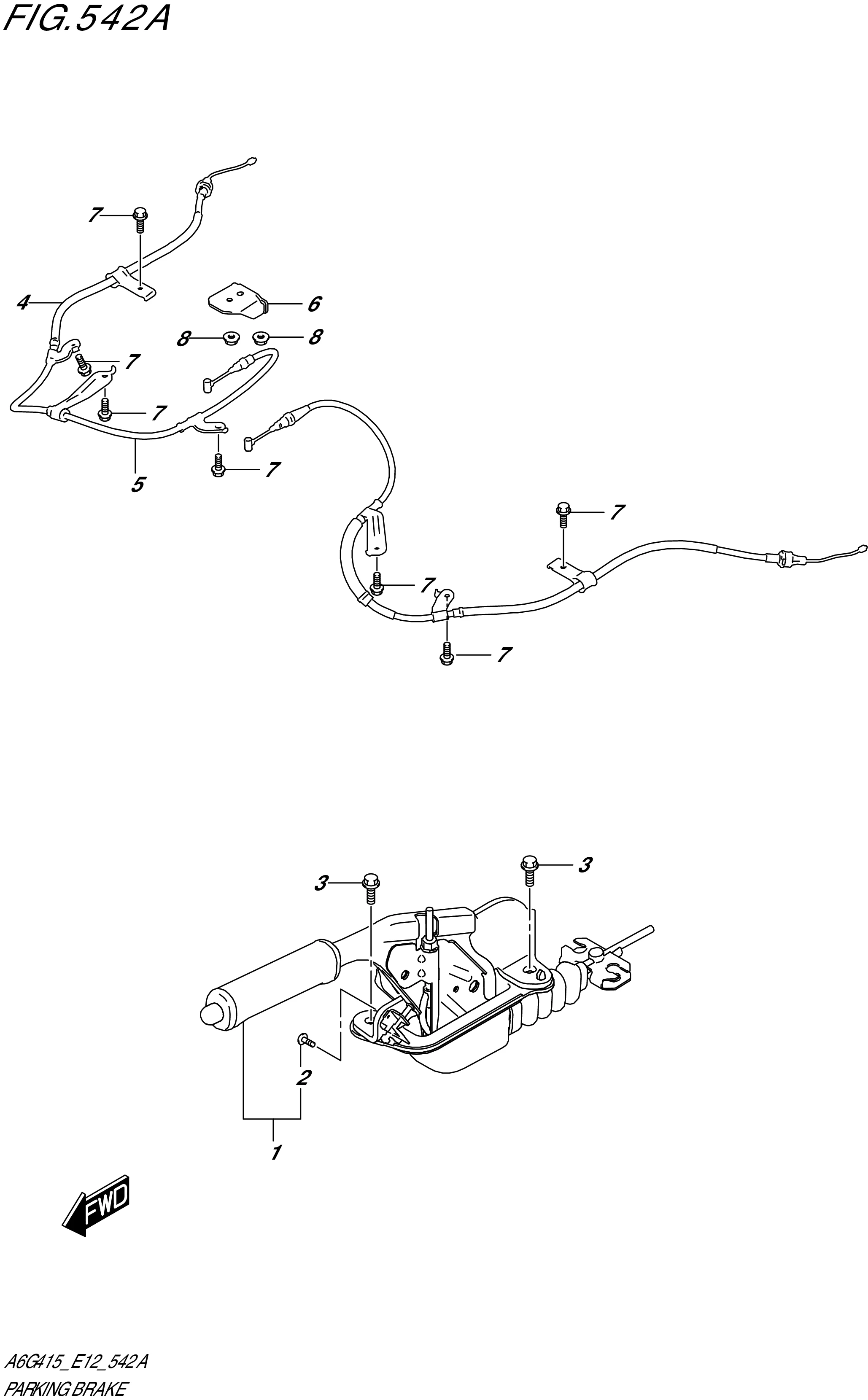

FIG. 542A- PARKING BRAKE

FIG. 542A- PARKING BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 54100-78R10-C48 LEVER ASSY,PARKING BRAKE (CHROME,BLACK) 1 Rp909.000
2 54115-76G00-000
SUB: 54115B76G00N000		 .SCREW 1 Rp16.000
3 54181-78R00-000 BOLT,PARKING BRAKE LEVER 2 Rp18.500
4 54410-78R00-000 CABLE,PARKING BRAKE,R 1 Rp599.000
5 54420-78R00-000 CABLE,PARKING BRAKE,L 1 Rp599.000
6 54495-78R00-000 BRACKET,PARKING CABLE 1 Rp124.500
7 01551-0816C-000 BOLT 7 Rp13.500
8 08316-1008A-000 NUT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
