Ignis MC 2023

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 73 FRONTHOOD PANEL FIG. 74 FRONT FENDER PANEL (GL)FIG. 75 FRONT FENDER PANEL(GLX)FIG. 76 FRONT BODY PANEL FIG. 77 FLOOR PANEL FIG. 78 SIDE BODY PANEL FIG. 79 ROOF PANEL FIG. 80 FRONT BUMPER (TYPE-1:GL)FIG. 80A FRONT BUMPER (TYPE-2:GL)FIG. 81 FRONT BUMPER (TYPE-1:GLX)FIG. 81A FRONT BUMPER (TYPE-2:GLX)FIG. 82 REAR BUMPER (TYPE-1:GL)FIG. 82A REAR BUMPER (TYPE-2:GL)FIG. 83 REAR BUMPER (TYPE-1:GLX)FIG. 83A REAR BUMPER (TYPE-2:GLX)FIG. 84 INSTRUMENT PANEL FIG. 85 VENTILATOR FIG. 86 HEATER UNIT (W/MANUAL AIR CONDITIONER)FIG. 87 HEATER UNIT (W/AUTO AIR CONDITIONER)FIG. 88 HEATER CONTROL (W/MANUAL AIR CONDITIONER:W/REAR DEFOGGER)FIG. 89 HEATER CONTROL (W/AUTO AIR CONDITIONER)FIG. 90 CONSOLE BOX FIG. 91 FLOOR CARPET FIG. 92 INTERIOR TRIM FIG. 93 COVER/CAP FIG. 94 FUEL LID OPENER FIG. 95 ROOF SIDE PAD FIG. 96 ROOF LINING FIG. 97 MOLDING FIG. 98 SPLASH GUARD (GLX)FIG. 99 EMBLEM FIG. 100 WIND SHIELD FIG. 101 FRONT DOOR PANEL FIG. 102 REAR DOOR PANEL FIG. 103 BACK DOOR PANEL FIG. 104 FRONT DOOR REGULATOR FIG. 105 REAR DOOR REGULATOR (W/REAR POWER WINDOW)FIG. 106 FRONT DOOR LOCK FIG. 107 REAR DOOR LOCK FIG. 108 BACK DOOR LOCK FIG. 109 MIRROR/SUNVISOR (GL)FIG. 110 MIRROR/SUNVISOR (GLX)FIG. 111 SEAT BELT FIG. 112 FRONT LH SEAT FIG. 113 FRONT RH SEAT (GL)FIG. 114 FRONT RH SEAT (GLX)FIG. 115 REAR SEAT FIG. 116 PARCEL SHELF FIG. 117 FUEL TANK FIG. 118 TOOL FIG. 119 AIR CONDITIONER FIG. 120 COMPRESSOR

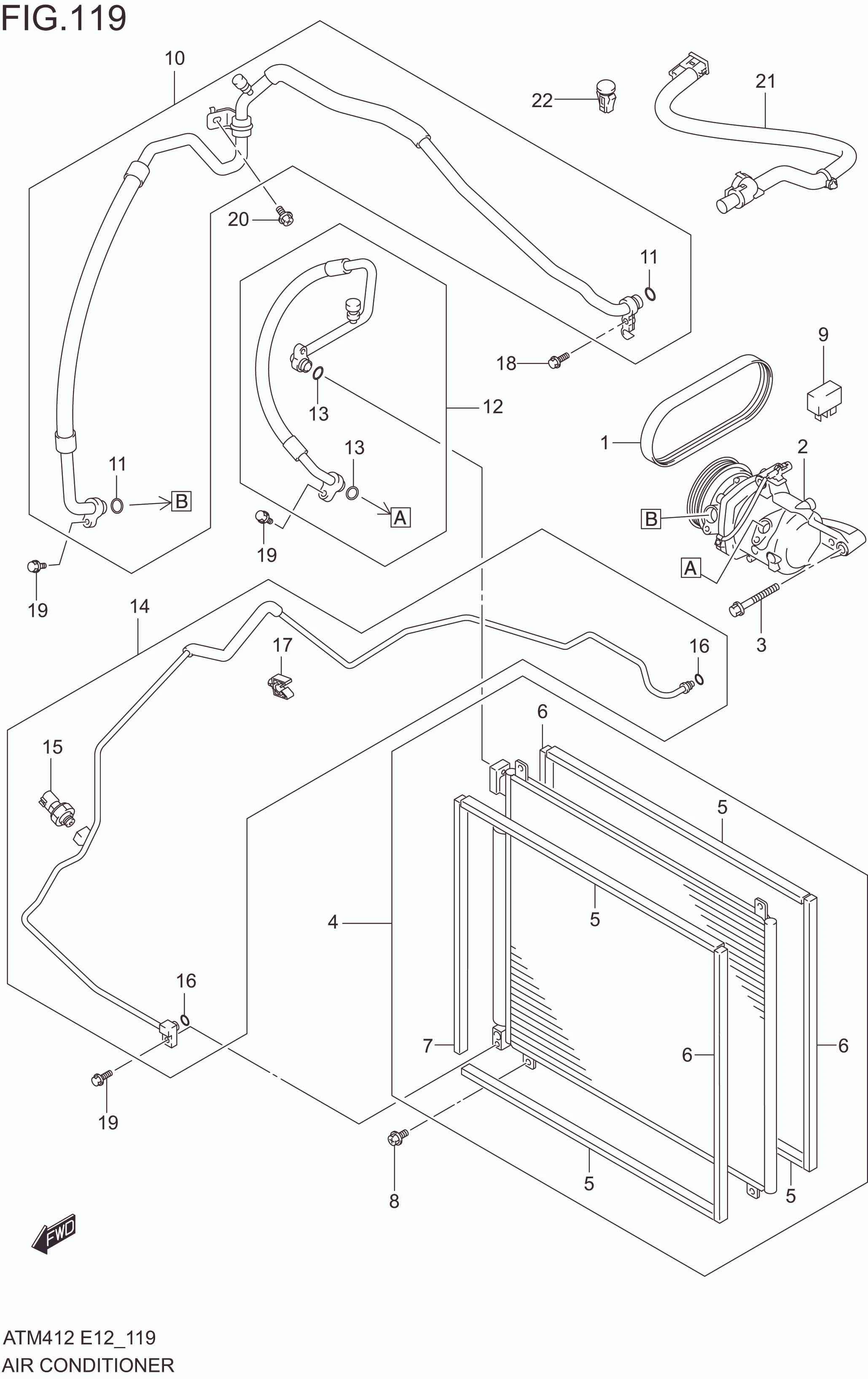

FIG. 119 AIR CONDITIONER

FIG. 119 AIR CONDITIONER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	95200M66R10-000 SUB: 95200M66R00-000	COMPRESSOR ASSY	1	Rp6.167.500	TYPE1,TYPE-2
1-2	95200M66R10-000	COMPRESSOR ASSY	1	Rp6.167.500	TYPE-3
1	95141M66R00-000	V-BELT(4PK)	1	Rp151.000
3	01550-0850A-000	BOLT, CPRSR	3	Rp3.500
4	95310M66R00-000	CONDENSER ASSY	1	Rp1.708.500
5	95811M66R00-000	.PACKING	4	Rp13.000
6	95812M66R00-000	.PACKING	3	Rp12.500
7	95813M66R00-000	.PACKING	1	Rp16.500
8	02162-0612A-000	BOLT, COND	4	Rp11.000
9-1	38860M76M00-000	RELAY ASSY	1	Rp58.500	VENDOR:DENSO
9-2	38860M76M00-000	RELAY ASSY	1	Rp58.500	VENDOR:INTERFACE MICROSYSTEMS
10	95710M66R00-000	HOSE, SUCTION	1	Rp689.000
11	95896-50G00-000	.O RING, (D:2.4,ID:13.4)	2	Rp19.000
12	95720M66R00-000	HOSE, DISCHARGE	1	Rp402.500
13	95895-50G00-000	.O RING, (D:2.4,ID:10.8)	2	Rp12.500
14-1	95731M66R00-000	HOSE, LIQUID	1	Rp925.000	TYPE-1
14-2	95731M82S00-000	HOSE, LIQUID	1	Rp773.000	TYPE-2,TYPE-3
15	95546M74L00-000	.SENSOR, REFRIGERANT PRESSURE	1	Rp675.500
16	95891-50G00-000	.O RING, (D:1.8,ID:6.7)	2	Rp12.500
17	95761-55K00-000	.CLAMP, LIQUID PIPE	2	Rp10.500
18	01550-0620B-000	BOLT	2	Rp3.500
19	01550-0620C-000	BOLT	3	Rp5.500
20	02162-0612A-000	SCREW	1	Rp11.000
21	95640M66R00-000	SENSOR ASSY, ROOM TEMP	1	Rp382.000	W/AUTO AIR CONDITIONER
22	95642-64G20-000	SENSOR, SUN LIGHT	1	Rp578.000	W/AUTO AIR CONDITIONER

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
