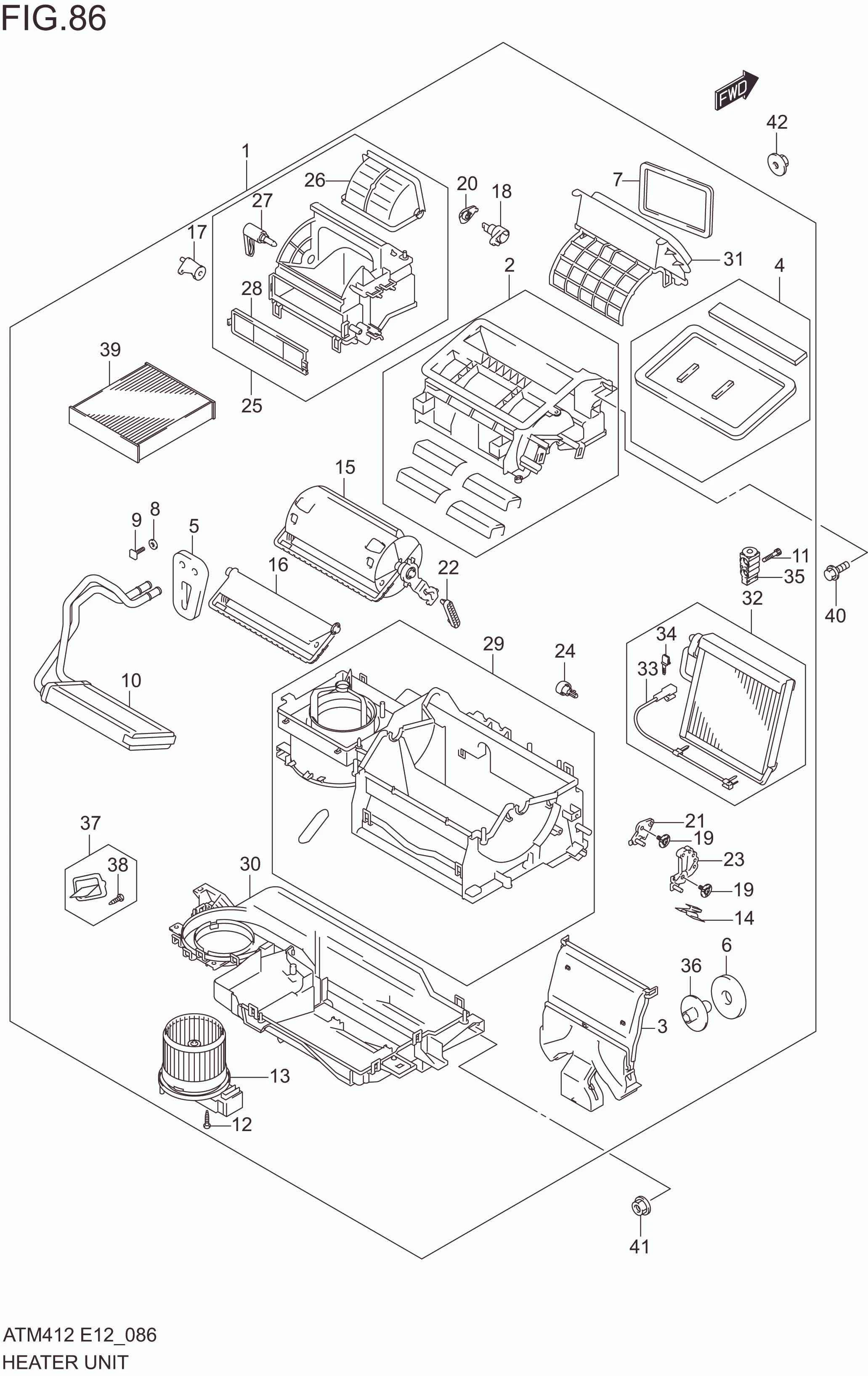

FIG. 86 HEATER UNIT (W/MANUAL AIR CONDITIONER)

No	No. Part	Description	Qty	Price Per Pcs
1	74100M66RC0-000	HVAC UNIT	1	Rp6.880.500
2	74110M66RC0-000	.CASE, HEATER	1	Rp270.500
3	74115M66RC0-000	.FOOT DUCT S/ASSY	1	Rp49.000
4	74116M66RC0-000	.PACKING, FACE OUTLET	1	Rp23.000
5	74117M66RC0-000	.PACKING, DASH	1	Rp48.500
6	74118M66RC0-000	.PACKING, DRAIN	1	Rp22.500
7	74119M66RC0-000	.PACKING, AIR INTAKE	1	Rp13.000
8	74119-78F10-000	.BUSH	1	Rp8.000
9	74119M79M10-000	.BOLT	1	Rp8.500
10	74120M66RC0-000	.CORE S/ASSY, HEATER	1	Rp939.000
11	74134-58J00-000	.BOLT	2	Rp14.000
12	74135-82000-000	.SCREW TAPPING	3	Rp19.500
13	74150M66RC0-000	.MOTOR ASSY, W/FAN	1	Rp573.500
14	74151M79M00-000	.LOCK CLAMP	3	Rp10.500
15	74172M66RC0-000	.DOOR S/ASSY, MODE	1	Rp303.500
16	74173M66RC0-000	.DOOR S/ASSY, A/M	1	Rp107.500
17	74182M66RC0-000	.LEVER, F/R MAIN	1	Rp10.500
18	74183M66RC0-000	.LEVER, MODE DOOR	1	Rp10.500
19	74183-82005-000	.SCREW TAPPING	2	Rp19.000
20	74184M66RC0-000	.LEVER, A/M DOOR	1	Rp7.000
21	74185M66RC0-000	.LEVER, A/M MAIN	1	Rp9.000
22	74186M66RC0-000	.ROD	1	Rp9.000
23	74187M66RC0-000	.LEVER, MODE MAIN	1	Rp8.000
24	74193M66L00-000	.STOPPER	3	Rp37.500
25	74210M66RC0-000	.CASE S/ASSY BLOWER	1	Rp136.000
26	74171M66RC0-000	..DOOR S/ASSY, F/R	1	Rp40.000
27	74181M66RC0-000	..LEVER, F/R DOOR	1	Rp8.000
28	95423M66RC0-000	..HOLDER, FILTER	1	Rp8.500
29	74211M66RC0-000	.CASE BLOWER, UPPER	1	Rp176.500
30	74212M66RC0-000	.CASE BLOWER, LOWER	1	Rp154.500
31	74213M66RC0-000	.DUCT	1	Rp53.000
32	95411M66RC0-000	.EVAPORATOR S/ASSY	1	Rp788.000
33	95541M66RC0-000	..THERMISTOR ASSY	1	Rp208.000
34	95452-63J00-000	..CLAMP	1	Rp9.000
35	95431M66RC0-000	.VALVE, EXPANSION	1	Rp547.000
36	95481M66RC0-000	.HOSE DRAIN	1	Rp11.000
37	95626M66RE0-000 SUB: 95626M66RC0-000	.RESISTER BLOWER, KIT	1	Rp640.500
38	03112-0416A-000	..SCREW, TAPPING	3	Rp23.500
39	95850M66RC0-000	.FILTER SUB ASSY	1	Rp98.500
40	09116-06115-000	BOLT, HVAC	2	Rp14.500
41	09159-06081-000	NUT, HVAC	2	Rp14.500
42	09159-06086-000	NUT, HVAC	1	Rp26.500
