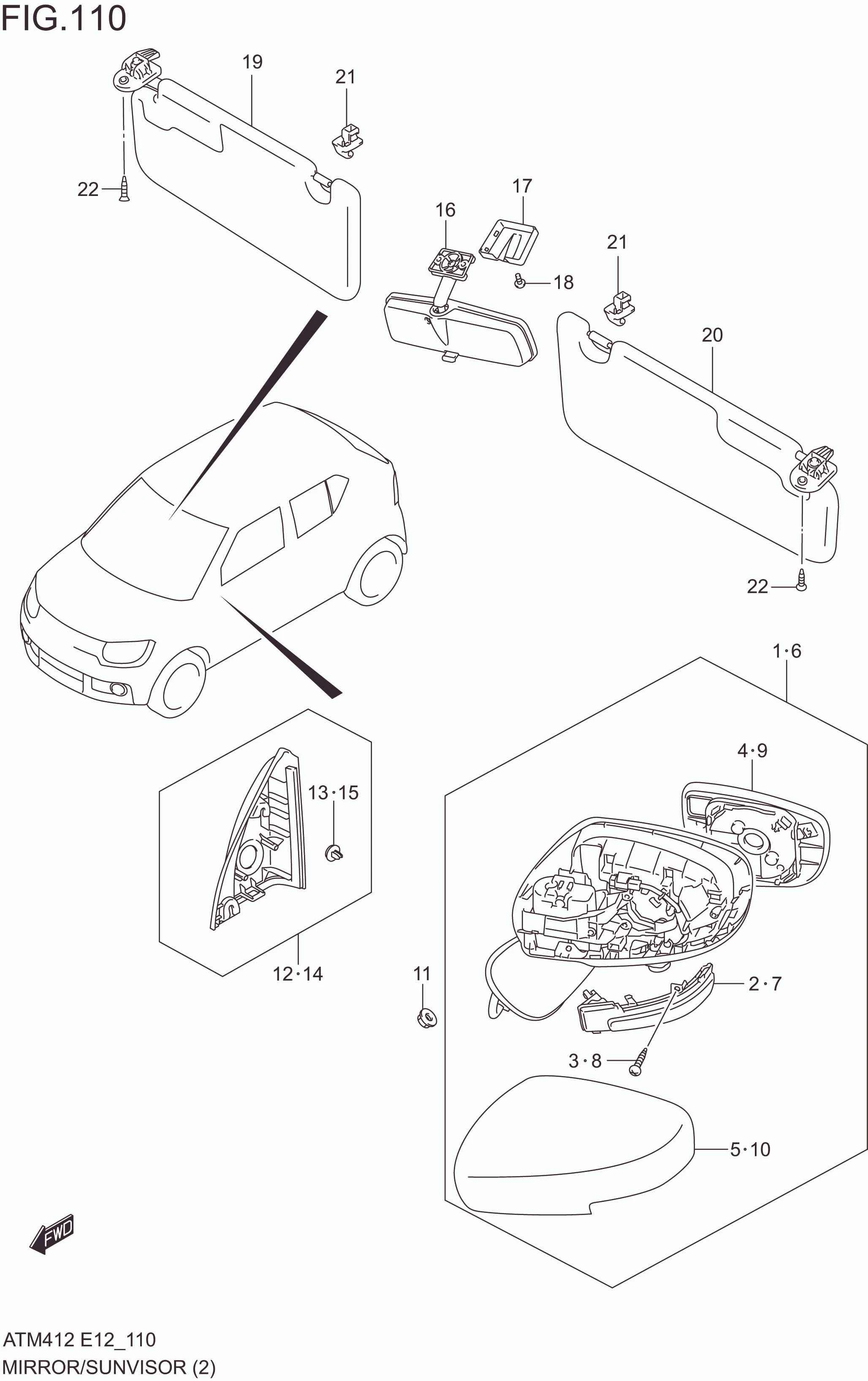

FIG. 110 MIRROR/SUNVISOR (GLX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	84701M66R21-ZHJ	MIRROR ASSY, OUT REAR VIEW RH	1	Rp2.583.000
1-1	84701M66R21-ZAM	MIRROR ASSY, OUT REAR VIEW RH	1	Rp2.522.000
1-6	84701M66R21-Z2S	MIRROR ASSY, OUT REAR VIEW RH	1	Rp2.642.500
1-5	84701M66R21-ZWS	MIRROR ASSY, OUT REAR VIEW RH	1	Rp2.492.000	TYPE-1
1-3	84701M66R21-ZNZ	MIRROR ASSY, OUT REAR VIEW RH	1	Rp2.642.500
1-4	84701M66R21-ZWR	MIRROR ASSY, OUT REAR VIEW RH	1	Rp2.492.000	TYPE-1
2	36410M76M00-000	.LAMP ASSY, SIDE TURN SIG RH	1	Rp357.500
3	84717M76M00-000	.SCREW, TURN SIGNAL LAMP	1	Rp8.500
4	84730M66R00-000	.GLASS, OUT RR VIEW MIR RH	1	Rp99.000
5-5	84718M66R20-ZWS	.COVER, MIRROR VISOR RH	1	Rp270.000	TYPE-1
5-6	84718M66R20-Z2S	.COVER, MIRROR VISOR RH	1	Rp270.000
5-4	84718M66R20-ZWR	.COVER, MIRROR VISOR RH	1	Rp270.000	TYPE-1
5-3	84718M66R20-ZNZ	.COVER, MIRROR VISOR RH	1	Rp623.500
5-2	84718M66R20-ZHJ	.COVER, MIRROR VISOR RH	1	Rp263.500
5-1	84718M66R20-ZAM	.COVER, MIRROR VISOR RH	1	Rp257.500
6-1	84702M66R21-ZAM	MIRROR ASSY, OUT REAR VIEW LH	1	Rp2.522.000
6-2	84702M66R21-ZHJ	MIRROR ASSY, OUT REAR VIEW LH	1	Rp2.583.000
6-3	84702M66R21-ZNZ	MIRROR ASSY, OUT REAR VIEW LH	1	Rp2.642.500
6-4	84702M66R21-ZWR	MIRROR ASSY, OUT REAR VIEW LH	1	Rp2.492.000	TYPE-1
6-5	84702M66R21-ZWS	MIRROR ASSY, OUT REAR VIEW LH	1	Rp2.492.000	TYPE-1
6-6	84702M66R21-Z2S	MIRROR ASSY, OUT REAR VIEW LH	1	Rp2.642.500
7	36430M76M00-000	.LAMP ASSY, SIDE TURN SIG LH	1	Rp357.500
8	84717M76M00-000	.SCREW, TURN SIGNAL LAMP	1	Rp8.500
9	84740M66R00-000	.GLASS, OUT RR VIEW MIR LH	1	Rp99.000
10-1	84728M66R20-ZAM	.COVER, MIRROR VISOR LH	1	Rp257.500
10-2	84728M66R20-ZHJ	.COVER, MIRROR VISOR LH	1	Rp263.500
10-3	84728M66R20-ZNZ	.COVER, MIRROR VISOR LH	1	Rp623.500
10-4	84728M66R20-ZWR	.COVER, MIRROR VISOR LH	1	Rp270.000	TYPE-1
10-5	84728M66R20-ZWS	.COVER, MIRROR VISOR LH	1	Rp270.000	TYPE-1
10-6	84728M66R20-Z2S	.COVER, MIRROR VISOR LH	1	Rp270.000
11	08316-1006A-000	NUT	6	Rp2.000
12	84750M66R10-5PK	GARNISH, FR DOOR INR RH (BLACK)	1	Rp34.000
13	09409M10321-000	.CLIP	2	Rp5.000
14	84790M66R10-5PK	GARNISH, FR DOOR INR LH (BLACK)	1	Rp34.000
15	09409M10321-000	.CLIP	2	Rp5.000
16	84703M75J12-6GS	MIRROR ASSY, INSIDE REAR VIEW (GRAY)	1	Rp249.500
17	84781M75J00-6GS	COVER, INSIDE MIRROR STAY (GRAY)	1	Rp6.000
18	02142-0516A-000	SCREW	2	Rp3.500
19	84801M76M00-6GS	SUNVISOR ASSY, RH (GRAY)	1	Rp186.000
20	84802M76M21-6GS	SUNVISOR ASSY, LH (GRAY)	1	Rp340.500
21	84851M66R00-6GS	HOLDER, SUNVISOR (GRAY)	2	Rp8.500
22	09139M05089-000	SCREW	2	Rp5.500
