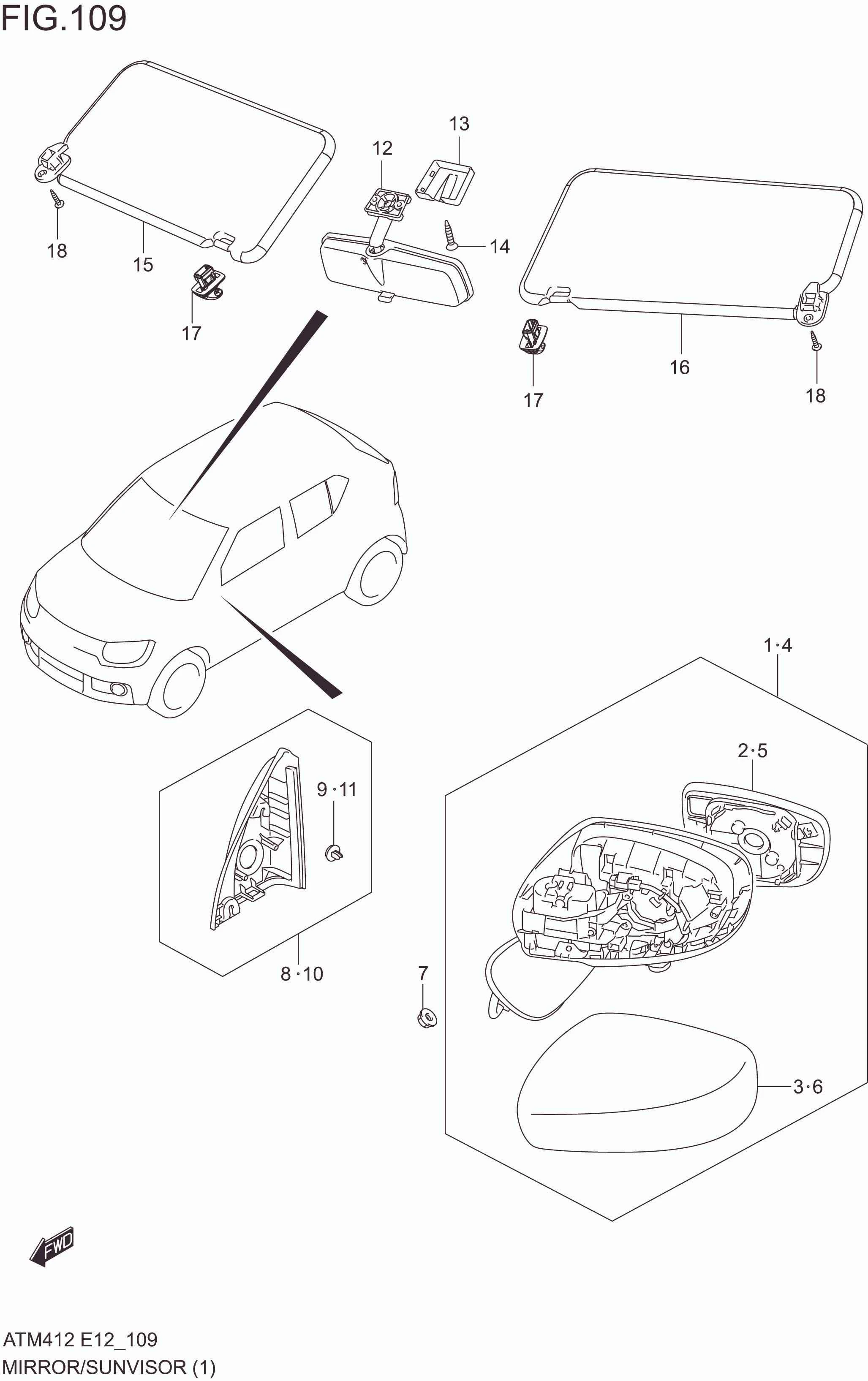

FIG. 109 MIRROR/SUNVISOR (GL)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	84701M66R30-ZHJ	MIRROR ASSY, OUT REAR VIEW RH	1	Rp1.119.000
1-3	84701M66R30-ZNZ	MIRROR ASSY, OUT REAR VIEW RH	1	Rp1.119.000
1-4	84701M66R30-ZWR	MIRROR ASSY, OUT REAR VIEW RH	1	Rp1.119.000	TYPE-1
1-5	84701M66R30-ZWS	MIRROR ASSY, OUT REAR VIEW RH	1	Rp1.106.000	TYPE-1
1-6	84701M66R30-Z2S	MIRROR ASSY, OUT REAR VIEW RH	1	Rp1.119.000
1-7	84701M66R30-WAD	MIRROR ASSY, OUT REAR VIEW RH	1	Rp1.017.000	TYPE-2,TYPE-3
1-8	84701M66R30-ZYE	MIRROR ASSY, OUT REAR VIEW RH	1	Rp968.500	TYPE-2,TYPE-3
1-1	84701M66R30-ZAM	MIRROR ASSY, OUT REAR VIEW RH	1	Rp943.000
2	84730M66R00-000	.GLASS, OUT RR VIEW MIR RH	1	Rp99.000
3-2	84718M66R10-ZHJ	.COVER, MIRROR VISOR RH	1	Rp275.500
3-8	84718M66R10-ZYE	.COVER, MIRROR VISOR RH	1	Rp94.000	TYPE-2,TYPE-3
3-7	84718M66R10-WAD	.COVER, MIRROR VISOR RH	1	Rp94.000	TYPE-2,TYPE-3
3-6	84718M66R10-Z2S	.COVER, MIRROR VISOR RH	1	Rp275.500
3-5	84718M66R10-ZWS	.COVER, MIRROR VISOR RH	1	Rp270.000	TYPE-1
3-4	84718M66R10-ZWR	.COVER, MIRROR VISOR RH	1	Rp270.000	TYPE-1
3-3	84718M66R10-ZNZ	.COVER, MIRROR VISOR RH	1	Rp275.500
3-1	84718M66R10-ZAM	.COVER, MIRROR VISOR RH	1	Rp269.500
4-7	84702M66R30-WAD	MIRROR ASSY, OUT REAR VIEW LH	1	Rp1.017.000	TYPE-2,TYPE-3
4-8	84702M66R30-ZYE	MIRROR ASSY, OUT REAR VIEW LH	1	Rp968.500	TYPE-2,TYPE-3
4-6	84702M66R30-Z2S	MIRROR ASSY, OUT REAR VIEW LH	1	Rp1.119.000
4-5	84702M66R30-ZWS	MIRROR ASSY, OUT REAR VIEW LH	1	Rp1.106.000	TYPE-1
4-3	84702M66R30-ZNZ	MIRROR ASSY, OUT REAR VIEW LH	1	Rp1.119.000
4-2	84702M66R30-ZHJ	MIRROR ASSY, OUT REAR VIEW LH	1	Rp1.119.000
4-1	84702M66R30-ZAM	MIRROR ASSY, OUT REAR VIEW LH	1	Rp943.000
4-4	84702M66R30-ZWR	MIRROR ASSY, OUT REAR VIEW LH	1	Rp1.119.000	TYPE-1
5	84740M66R00-000	.GLASS, OUT RR VIEW MIR LH	1	Rp99.000
6-8	84728M66R10-ZYE	.COVER, MIRROR VISOR LH	1	Rp94.000	TYPE-2,TYPE-3
6-7	84728M66R10-WAD	.COVER, MIRROR VISOR LH	1	Rp94.000	TYPE-2,TYPE-3
6-6	84728M66R10-Z2S	.COVER, MIRROR VISOR LH	1	Rp275.500
6-5	84728M66R10-5PK SUB: 84728M66R10-ZWS	.COVER, MIRROR VISOR LH	1	Rp270.000	TYPE-1
6-4	84728M66R10-ZWR	.COVER, MIRROR VISOR LH	1	Rp270.000	TYPE-1
6-3	84728M66R10-ZNZ	.COVER, MIRROR VISOR LH	1	Rp275.500
6-2	84728M66R10-ZHJ	.COVER, MIRROR VISOR LH	1	Rp275.500
6-1	84728M66R10-ZAM	.COVER, MIRROR VISOR LH	1	Rp269.500
7	08316-1006A-000	NUT, OUT REAR VIEW MIRROR	6	Rp2.000
8	84750M66R00-5PK	GARNISH, FR DOOR INR RH (BLACK)	1	Rp33.500
9	09409M10321-000	.CLIP	2	Rp5.000
10	84790M66R00-5PK	GARNISH, FR DOOR INR LH (BLACK)	1	Rp33.500
11	09409M10321-000	.CLIP	2	Rp5.000
12	84703M75J12-6GS	MIRROR ASSY, INSIDE REAR VIEW (GRAY)	1	Rp249.500
13	84781M75J00-6GS	COVER, INSIDE MIRROR STAY (GRAY)	1	Rp6.000
14	02142-0516A-000	SCREW, INSIDE RR VIEW MIR BASE	2	Rp3.500
15	84801M76M00-6GS	SUNVISOR ASSY, RH (GRAY)	1	Rp186.000
16	84802M76M21-6GS	SUNVISOR ASSY, LH (GRAY)	1	Rp340.500
17	84851M66R00-6GS	HOLDER, SUNVISOR	2	Rp8.500
18	09139M05089-000	SCREW, SUNVISOR	2	Rp5.500
