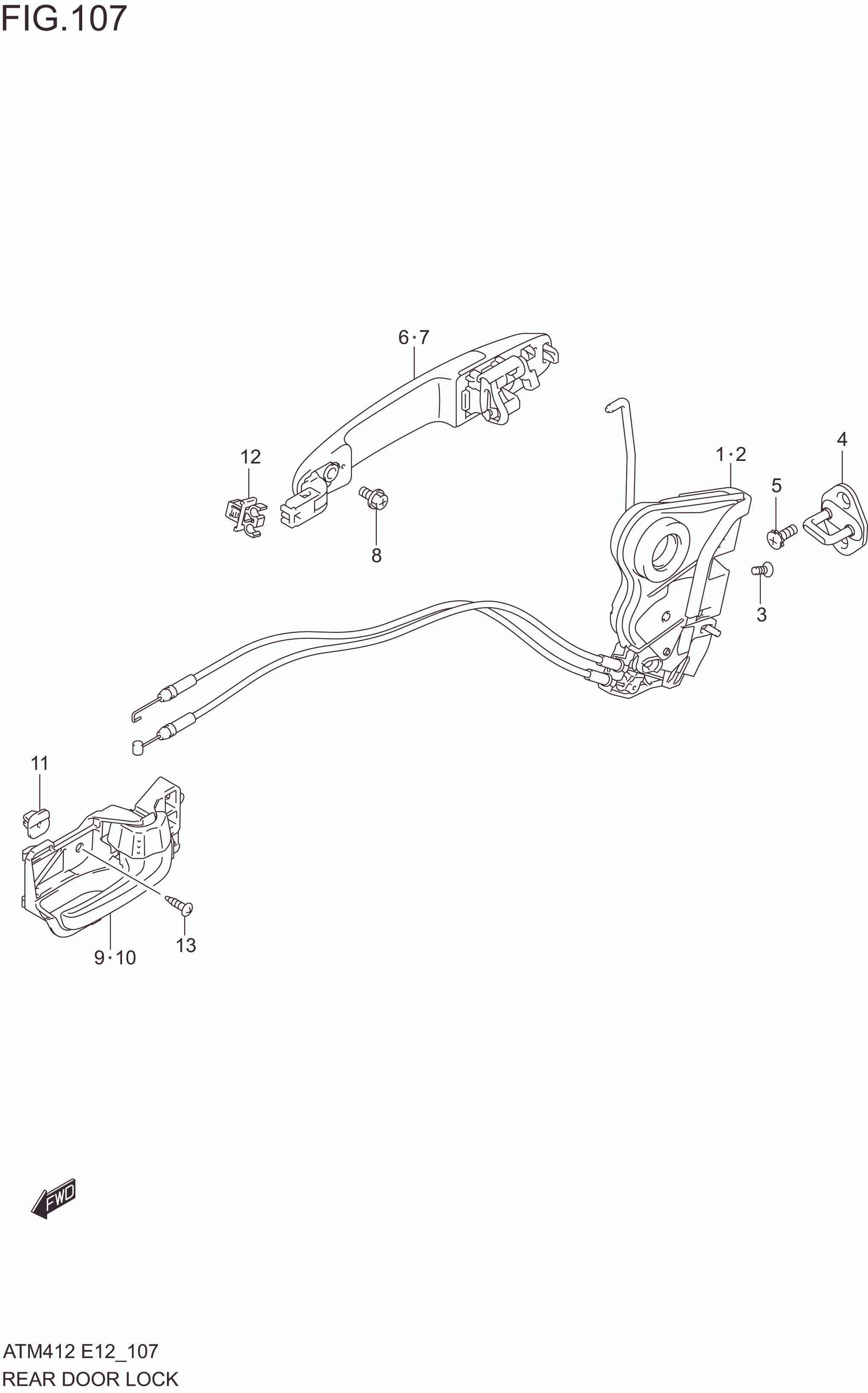

FIG. 107 REAR DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	82301M66R13-000 SUB: 82301M66R12-000	LATCH ASSY, REAR DOOR RH	1	Rp519.000
2	82302M66R13-000 SUB: 82302M66R12-000	LATCH ASSY, REAR DOOR LH	1	Rp519.000
3	09137-06032-000	SCREW	6	Rp16.500
4	82610M76M01-000	STRIKER, DOOR LATCH	2	Rp27.000
5	DISCONTINUE SUB: 09137M08004-000	SCREW	4	-
6-5	82830M66R10-ZWS	HANDLE, REAR DOOR OUT RH	1	Rp338.000	TYPE-1
6-9	82830M66R10-ZYR	HANDLE, REAR DOOR OUT RH	1	Rp241.500	TYPE-2,3:GLX:BODY COLOUR:D8R,D8S
6-8	82830M66R10-ZYE	HANDLE, REAR DOOR OUT RH	1	Rp241.500	TYPE-2,TYPE-3
6-7	82830M66R10-WAD	HANDLE, REAR DOOR OUT RH	1	Rp241.500	TYPE-2,3:GL
6-6	82830M66R10-Z2S	HANDLE, REAR DOOR OUT RH	1	Rp338.000
6-4	82830M66R10-ZWR	HANDLE, REAR DOOR OUT RH	1	Rp338.000	TYPE-1
6-3	82830M66R10-ZNZ	HANDLE, REAR DOOR OUT RH	1	Rp338.000
6-2	82830M66R10-ZHJ	HANDLE, REAR DOOR OUT RH	1	Rp338.000
6-1	82830M66R10-ZAM	HANDLE, REAR DOOR OUT RH	1	Rp338.000
7-2	82840M66R10-ZHJ	HANDLE, REAR DOOR OUT LH	1	Rp338.000
7-9	82840M66R10-ZYR	HANDLE, REAR DOOR OUT RH	1	Rp241.500	TYPE-2,3:GLX:BODY COLOUR:D8R,D8S
7-8	82840M66R10-ZYE	HANDLE, REAR DOOR OUT RH	1	Rp241.500	TYPE-2,TYPE-3
7-7	82840M66R10-WAD	HANDLE, REAR DOOR OUT RH	1	Rp241.500	TYPE-2,3:GL
7-6	82840M66R10-Z2S	HANDLE, REAR DOOR OUT LH	1	Rp338.000
7-5	82840M66R10-ZWS	HANDLE, REAR DOOR OUT LH	1	Rp338.000	TYPE-1
7-4	82840M66R10-ZWR	HANDLE, REAR DOOR OUT LH	1	Rp338.000	TYPE-1
7-3	82840M66R10-ZNZ	HANDLE, REAR DOOR OUT LH	1	Rp338.000
7-1	82840M66R10-ZAM	HANDLE, REAR DOOR OUT LH	1	Rp338.000
8	09116-06168-000	BOLT	4	Rp15.000
9-1	83110M76M01-5PK	HANDLE, SIDE DOOR INSIDE RH	1	Rp65.500	GL
9-2	83110M55K21-C48	HANDLE, SIDE DOOR INSIDE RH	1	Rp130.500	GLX
10-1	83130M76M01-5PK	HANDLE, SIDE DOOR INSIDE LH	1	Rp65.500	GL
10-2	83130M55K21-C48	HANDLE, SIDE DOOR INSIDE LH	1	Rp130.500	GLX
11	83119M75J00-000	NUT	2	Rp5.500
12	83271M66R00-000	CLIP	2	Rp6.500
13	09132-05058-000	SCREW	2	Rp14.000
