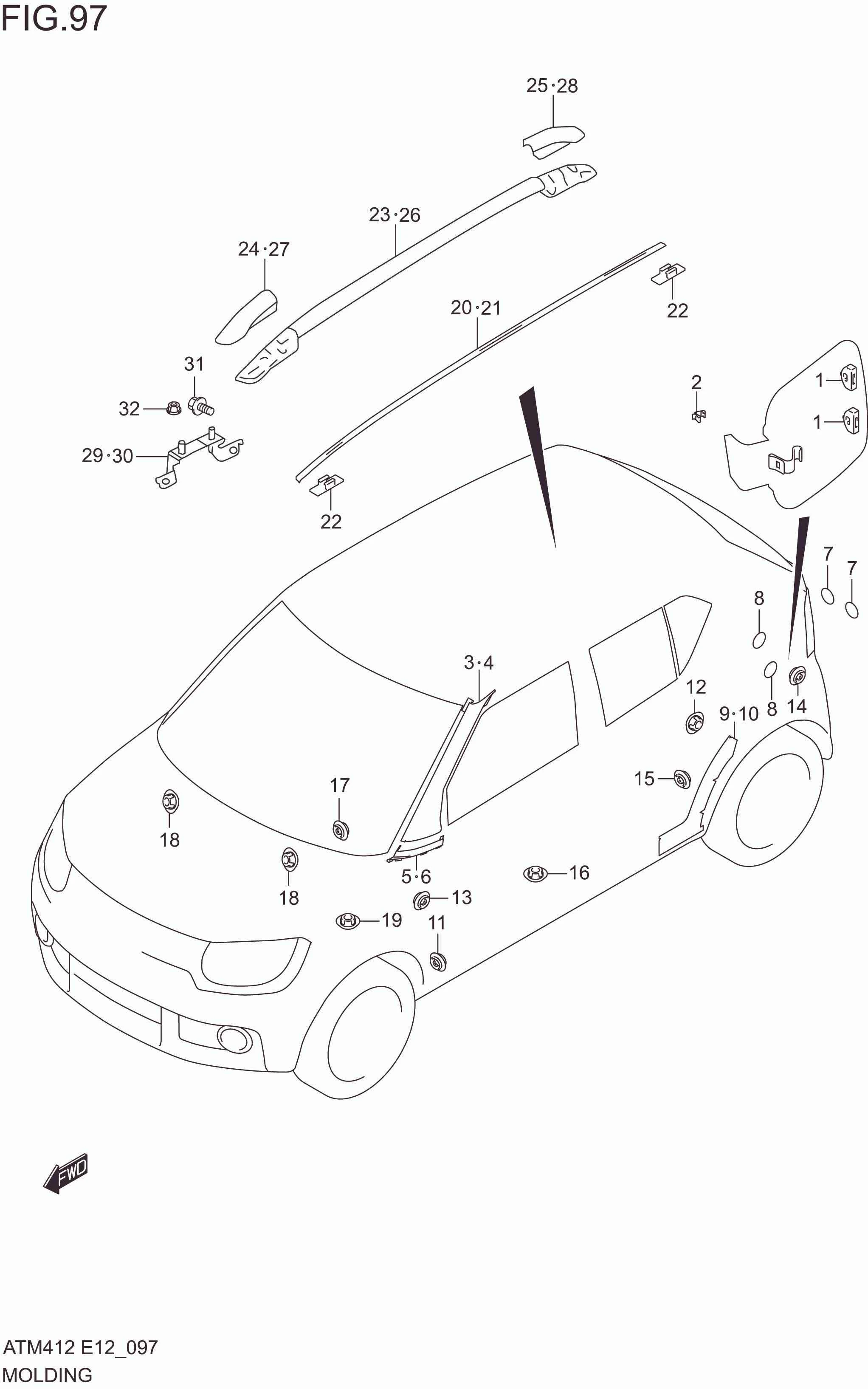

FIG. 97 MOLDING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	77116M74L00-000	CUSHION, FUEL LID	2	Rp5.500
2	77121M63J10-000	SPRING, FUEL FILLER DOOR	1	Rp11.500
3	77141M66R00-0CB	TAPE, FR PILLAR UPPER RH (BLACK)	1	Rp133.000	BODY COLOR:ZHJ,Z2S,ZNZ,ZWR,
4	77146M66R00-0CB	TAPE, FR PILLAR UPPER LH (BLACK)	1	Rp133.000	BODY COLOR:ZHJ,Z2S,ZNZ,ZWR,
5	77131M62R00-000	MOLDING, FR PILLAR LOWER RH	1	Rp24.000
6	77181M62R00-000	MOLDING, FR PILLAR LOWER LH	1	Rp24.000
7	77191-79F00-000	FILM, BACK DOOR CUSHION	4	Rp7.500
8	77191-79F00-000	FILM, FUEL LID CUSHION	2	Rp7.500
9	77198M66R00-000	FILM, SIDE SILL PROTECTION RH	1	Rp82.000	GL
10	77199M66R00-000	FILM, SIDE SILL PROTECTION LH	1	Rp82.000	GL
11	09250-15012-000	CAP,SIDE SILL FR	4	Rp5.000
12	09250-15012-000	CAP,SIDE SILL RR	2	Rp5.000
13	09250M17005-000	CAP,FR PILLAR OUTER	2	Rp5.500
14	09250M17005-000	CAP,SIDE BODY OUTER RR	2	Rp5.500
15	09250M15022-000	CAP,RR WHL HOUSE OUTER	2	Rp6.500
16	09250M15022-000	CAP,SIDE SILL OUTER	14	Rp6.500	GL
17	09250M15022-000	CAP,DASH UPPER X MBR	2	Rp6.500
18	09250M30011-000	CAP,COWL FRONT	2	Rp4.500
19	72397M67L00-000	CAP,DASH LOWER	2	Rp7.000
20	78151M66R01-000	MOLDING, ROOF RH	1	Rp158.000
21	78161M66R01-000	MOLDING, ROOF LH	1	Rp158.000
22	78171M76M00-000	CLIP, ROOF MOLDING BODY	4	Rp23.000
23	78210-62R00-DTA	RAIL,ROOF,R	1	Rp3.038.500	GLX
24-1	78216-62R00-DTA	CAP,ROOF RAIL FR,R	1	Rp481.500	GLX:TILL:SEP-17
24-2	78216-62R10-DTA	CAP,ROOF RAIL FR,R	1	Rp450.500	GLX:FROM:OCT-17
25-1	78217-62R00-DTA	CAP,ROOF RAIL RR,R	1	Rp545.500	GLX:TILL:SEP-17
25-2	78217-62R10-DTA	CAP,ROOF RAIL RR,R	1	Rp450.500	GLX:FROM:OCT-17
26	78220-62R00-DTA	RAIL,ROOF,L	1	Rp2.866.500	GLX
27-1	78226-62R00-DTA	CAP,ROOF RAIL FR,L	1	Rp480.000	GLX:TILL:SEP-17
27-2	78226-62R10-DTA	CAP,ROOF RAIL FR,L	1	Rp450.500	GLX:FROM:OCT-17
28-1	78227-62R00-DTA	CAP,ROOF RAIL RR,L	1	Rp531.000	GLX:TILL:SEP-17
28-2	78227-62R10-DTA	CAP,ROOF RAIL RR,L	1	Rp450.500	GLX:FROM:OCT-17
29	78231M62R00-000	BRACKET,ROOF RAIL FR	1	Rp13.000	GLX
30	78232M62R00-000	BRACKET,ROOF RAIL RR	1	Rp11.500	GLX
31	02162-0612A-000	BOLT,ROOF RAIL BRACKET	8	Rp11.000	GLX
32	09159-06081-000	NUT,ROOF RAIL	8	Rp14.500	GLX
