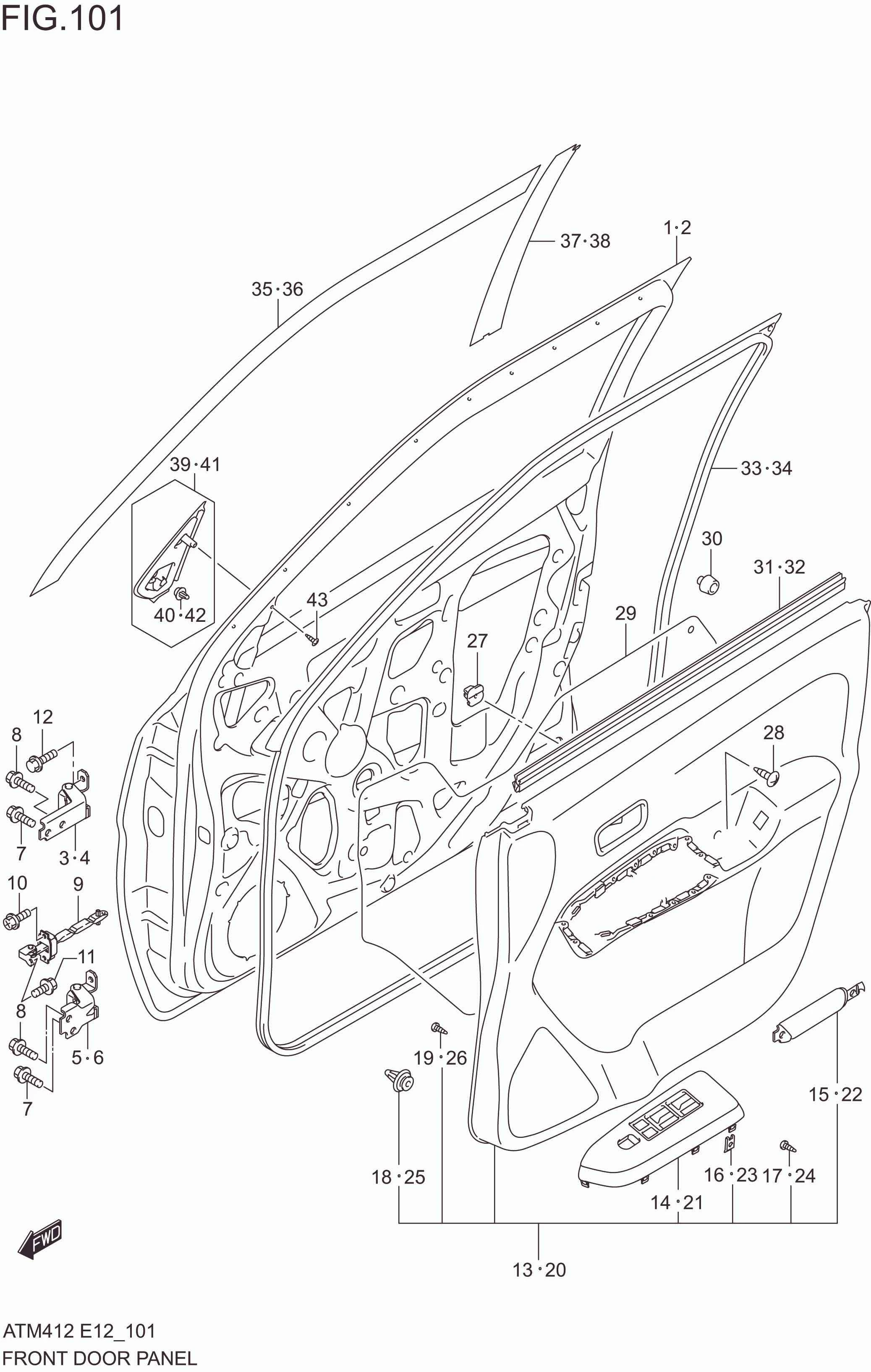

FIG. 101 FRONT DOOR PANEL

FIG. 101 FRONT DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 68001M66R01-000 PANEL ASSY, FRONT DOOR RH 1 Rp1.835.000
2 68002M66R01-000 PANEL ASSY, FRONT DOOR LH 1 Rp1.835.000
3-1 69310M82S00-000 HINGE, FRONT DOOR UPPER RH 1 Rp61.500 TYPE-1
3-2 69310M82S00-000 HINGE, FRONT DOOR UPPER RH 1 Rp61.500 TYPE-2,TYPE-3
4-1 69320M82S00-000 HINGE, FRONT DOOR UPPER LH 1 Rp61.500 TYPE-1
4-2 69320M82S00-000 HINGE, FRONT DOOR UPPER LH 1 Rp61.500 TYPE-2,TYPE-3
5-1 69330M82S00-000 HINGE, FRONT DOOR LOWER RH 1 Rp61.500 TYPE-1
5-2 69330M82S00-000 HINGE, FRONT DOOR LOWER RH 1 Rp61.500 TYPE-2,TYPE-3
6-1 69340M82S00-000 HINGE, FRONT DOOR LOWER LH 1 Rp61.500 TYPE-1
6-2 69340M82S00-000 HINGE, FRONT DOOR LOWER LH 1 Rp61.500 TYPE-2,TYPE-3
7 09113M08L02-000 BOLT 4 Rp8.500
8 01550-0820A-000 BOLT 4 Rp5.500
9 81830M66R00-000 STOP, FRONT DOOR OPEN 2 Rp63.000
10 09103-06248-000 BOLT 4 Rp23.500
11 09112-08015-000 BOLT 2 Rp32.000
12 09103M08557-000 BOLT 8 Rp8.500
13-7 83710M66RN0-CNM TRIM, FRONT DOOR RH 1 Rp1.000.000 TYPE-1:GLX:BODY COLOR:ZWS,CMM
13-9 83710M66RN0-D6V TRIM, FRONT DOOR RH 1 Rp691.500 TYPE-2:GLX:BODY COLOUR:D8R,D8S
13-8 83710M66RN0-D6W TRIM, FRONT DOOR RH 1 Rp686.500 TYPE-2,3:GLX:BODY COLOUR
13-6 83710M66RN0-CLY TRIM, FRONT DOOR RH 1 Rp1.000.000 TYPE-1:GLX:BODY COLOR:ZWR,CMN
13-4 83710M66RN0-D6W TRIM, FRONT DOOR RH 1 Rp686.500 TYPE-2,3:GL
13-1 83710M66RN0-CE8 TRIM, FRONT DOOR RH 1 Rp1.000.000 TYPE-1:GL:BODY COLOR:ZHJ,Z2S,ZNZ,ZAM
13-3 83710M66RN0-CNM TRIM, FRONT DOOR RH 1 Rp1.000.000 TYPE-1:GL:BODY COLOR:ZWS
13-2 83710M66RN0-CLY TRIM, FRONT DOOR RH 1 Rp1.000.000 TYPE-1:GL:BODY COLOR:ZWR
13-5 83710M66RN0-CE8 TRIM, FRONT DOOR RH 1 Rp1.000.000 TYPE-1:GLX:BODY COLOR:ZHJ,Z2S,ZNZ
14 83715M66R30-PF4 .BEZEL, FR DOOR TRIM RH 1 Rp45.000
15-7 83718M66R10-CN4 .GRIP, FRONT DOOR TRIM RH 1 Rp212.000 TYPE-1:GLX:BODY COLOR:ZWS,CMM
15-9 83718M66R10-D7T .GRIP, FRONT DOOR TRIM RH 1 Rp147.500 TYPE-2,3:GLX:BODY COLOUR:D8R,D8S
15-8 83718M66R10-CV5 .GRIP, FRONT DOOR TRIM RH 1 Rp147.500 TYPE-2,3:GLX:BODY COLOUR:ZHJ,Z2S,XZNZ,D9D,ZAM
15-6 83718M66R10-CNZ .GRIP, FRONT DOOR TRIM RH 1 Rp208.000 TYPE-1:GLX:BODY COLOR:ZWR,CMN
15-5 83718M66R10-CHB .GRIP, FRONT DOOR TRIM RH 1 Rp197.000 TYPE-1:GLX:BODY COLOR:ZHJ,Z2S,ZNZ
15-4 83718M66R10-CV5 .GRIP, FRONT DOOR TRIM RH 1 Rp147.500 TYPE-2,3:GL
15-3 83718M66R10-CN4 .GRIP, FRONT DOOR TRIM RH 1 Rp212.000 TYPE-1:GL:BODY COLOR:ZWS
15-2 83718M66R10-CNZ .GRIP, FRONT DOOR TRIM RH 1 Rp208.000 TYPE-1:GL:BODY COLOR:ZWR
15-1 83718M66R10-CHB .GRIP, FRONT DOOR TRIM RH 1 Rp197.000 TYPE-1:GL:BODY COLOR:ZHJ,Z2S,ZNZ,ZAM
16 09148M05L04-000 .NUT 2 Rp5.000
17 03241M0516A-000 .SCREW 2 Rp4.500
18 09409M10321-000 .CLIP 11 Rp5.000
19 03541-0410A-000 .SCREW 2 Rp11.000
20-1 83720M66RH0-CE8 TRIM, FRONT DOOR LH 1 Rp1.000.000 TYPE-1:GL:BODY COLOR:ZHJ,Z2S,ZNZ,ZAM
20-9 83720M66RH0-D6V TRIM, FRONT DOOR LH 1 Rp687.500 TYPE-2:GLX:BODY COLOUR:D8R,D8S
20-8 83720M66RH0-D6W TRIM, FRONT DOOR LH 1 Rp682.500 TYPE-2:GLX:BODY COLOUR:ZHJ,Z2S,ZNZ,D9D,ZAM
20-7 83720M66RH0-CNM TRIM, FRONT DOOR LH 1 Rp1.005.000 TYPE-1:GLX:BODY COLOR:ZWS,CMM
20-6 83720M66RH0-CLY TRIM, FRONT DOOR LH 1 Rp1.000.000 TYPE-1:GLX:BODY COLOR:ZWR,CMN
20-4 83720M66RH0-D6W TRIM, FRONT DOOR LH 1 Rp682.500 TYPE-2:GL
20-5 83720M66RH0-CE8 TRIM, FRONT DOOR LH 1 Rp1.000.000 TYPE-1:GLX:BODY COLOR:ZHJ,Z2S,ZNZ
20-2 83720M66RH0-CLY TRIM, FRONT DOOR LH 1 Rp1.000.000 TYPE-1:GL:BODY COLOR:ZWR
20-3 83720M66RH0-CNM TRIM, FRONT DOOR LH 1 Rp1.005.000 TYPE-1:GL:BODY COLOR:ZWS
21 83725M66R10-PF4 .BEZEL, FR DOOR TRIM LH 1 Rp47.000
22-1 83728M66R10-CHB .GRIP, FRONT DOOR TRIM LH 1 Rp197.000 TYPE-1:GL:BODY COLOR:ZHJ,Z2S,ZNZ,ZAM
22-2 83728M66R10-CNZ .GRIP, FRONT DOOR TRIM LH 1 Rp208.000 TYPE-1:GL:BODY COLOR:ZWR
22-3 83728M66R10-CN4 .GRIP, FRONT DOOR TRIM LH 1 Rp212.000 TYPE-1:GL:BODY COLOR:ZWS
22-4 83728M66R10-CV5 .GRIP, FRONT DOOR TRIM LH 1 Rp147.500 TYPE-2:GL
22-5 83728M66R10-CHB .GRIP, FRONT DOOR TRIM LH 1 Rp197.000 TYPE-1:GLX:BODY COLOR:ZHJ,Z2S,ZNZ
22-6 83728M66R10-CNZ .GRIP, FRONT DOOR TRIM LH 1 Rp208.000 TYPE-1:GLX:BODY COLOR:ZWR,CMN
22-7 83728M66R10-CN4 .GRIP, FRONT DOOR TRIM LH 1 Rp212.000 TYPE-1:GLX:BODY COLOR:ZWS,CMM
22-8 83728M66R10-CV5 .GRIP, FRONT DOOR TRIM LH 1 Rp147.500 TYPE-2:GLX:BODY COLOUR:ZHJ,Z2S,ZNZ,D9D,ZAM
22-9 83728M66R10-D7T .GRIP, FRONT DOOR TRIM LH 1 Rp147.500 TYPE-2:GLX:BODY COLOUR:D8R,D8S
23 09148M05L04-000 .NUT 2 Rp5.000
24 03241M0516A-000 .SCREW 2 Rp4.500
25 09409M10321-000 .CLIP 11 Rp5.000
26 03541-0410A-000 .SCREW 2 Rp11.000
27 83119M75J00-000 NUT, SIDE DOOR TRIM BRKT 2 Rp5.500
28 09132-05058-000 SCREW 2 Rp14.000
29 83911M62R00-000 COVER, FRONT DOOR SEALING 2 Rp14.500
30 82711-51K00-000 STOPPER, DOOR 4 Rp39.000
31 83851M66R00-000 WEATHERSTRIP, FR DOOR INNER RH 1 Rp83.500
32 83861M66R00-000 WEATHERSTRIP, FR DOOR INNER LH 1 Rp83.500
33 84641M66R00-000 WEATHERSTRIP, FRONT DOOR OPNG RH 1 Rp281.000
34 84651M66R00-000 WEATHERSTRIP, FRONT DOOR OPNG LH 1 Rp281.000
35 83921M66R00-0CB TAPE, FRONT DOOR OUTER ROOF RH (BLACK) 1 Rp129.000 BODY COLOR:ZHJ,Z2S,ZNZ,ZWR,ZWS,CMN,CMM
36 83922M66R00-0CB TAPE, FRONT DOOR OUTER ROOF LH (BLACK) 1 Rp129.000 BODY COLOR:ZHJ,Z2S,ZNZ,ZWR,ZWS,CMN,CMM
37 83923M66R00-0CB TAPE, FRONT DOOR PILLAR RR RH (BLACK) 1 Rp55.000 BODY COLOR:ZHJ,Z2S,ZNZ,ZWR,ZWS,CMN,CMM
38 83924M66R00-0CB TAPE, FRONT DOOR PILLAR RR LH (BLACK) 1 Rp55.000 BODY COLOR:ZHJ,Z2S,ZNZ,ZWR,ZWS,CMN,CMM
39 83950M66R00-000 GARNISH, FR DOOR OUTER RH 1 Rp83.500
40 09409-10327-000 .CLIP 2 Rp5.000
41 83960M66R00-000 GARNISH, FR DOOR OUTER LH 1 Rp81.500
42 09409-10327-000 .CLIP 2 Rp5.000
43 03541-0512A-000 SCREW, FR DOOR OUTER GARNISH 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
