Ignis MC 2023

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 73 FRONTHOOD PANEL FIG. 74 FRONT FENDER PANEL (GL)FIG. 75 FRONT FENDER PANEL(GLX)FIG. 76 FRONT BODY PANEL FIG. 77 FLOOR PANEL FIG. 78 SIDE BODY PANEL FIG. 79 ROOF PANEL FIG. 80 FRONT BUMPER (TYPE-1:GL)FIG. 80A FRONT BUMPER (TYPE-2:GL)FIG. 81 FRONT BUMPER (TYPE-1:GLX)FIG. 81A FRONT BUMPER (TYPE-2:GLX)FIG. 82 REAR BUMPER (TYPE-1:GL)FIG. 82A REAR BUMPER (TYPE-2:GL)FIG. 83 REAR BUMPER (TYPE-1:GLX)FIG. 83A REAR BUMPER (TYPE-2:GLX)FIG. 84 INSTRUMENT PANEL FIG. 85 VENTILATOR FIG. 86 HEATER UNIT (W/MANUAL AIR CONDITIONER)FIG. 87 HEATER UNIT (W/AUTO AIR CONDITIONER)FIG. 88 HEATER CONTROL (W/MANUAL AIR CONDITIONER:W/REAR DEFOGGER)FIG. 89 HEATER CONTROL (W/AUTO AIR CONDITIONER)FIG. 90 CONSOLE BOX FIG. 91 FLOOR CARPET FIG. 92 INTERIOR TRIM FIG. 93 COVER/CAP FIG. 94 FUEL LID OPENER FIG. 95 ROOF SIDE PAD FIG. 96 ROOF LINING FIG. 97 MOLDING FIG. 98 SPLASH GUARD (GLX)FIG. 99 EMBLEM FIG. 100 WIND SHIELD FIG. 101 FRONT DOOR PANEL FIG. 102 REAR DOOR PANEL FIG. 103 BACK DOOR PANEL FIG. 104 FRONT DOOR REGULATOR FIG. 105 REAR DOOR REGULATOR (W/REAR POWER WINDOW)FIG. 106 FRONT DOOR LOCK FIG. 107 REAR DOOR LOCK FIG. 108 BACK DOOR LOCK FIG. 109 MIRROR/SUNVISOR (GL)FIG. 110 MIRROR/SUNVISOR (GLX)FIG. 111 SEAT BELT FIG. 112 FRONT LH SEAT FIG. 113 FRONT RH SEAT (GL)FIG. 114 FRONT RH SEAT (GLX)FIG. 115 REAR SEAT FIG. 116 PARCEL SHELF FIG. 117 FUEL TANK FIG. 118 TOOL FIG. 119 AIR CONDITIONER FIG. 120 COMPRESSOR

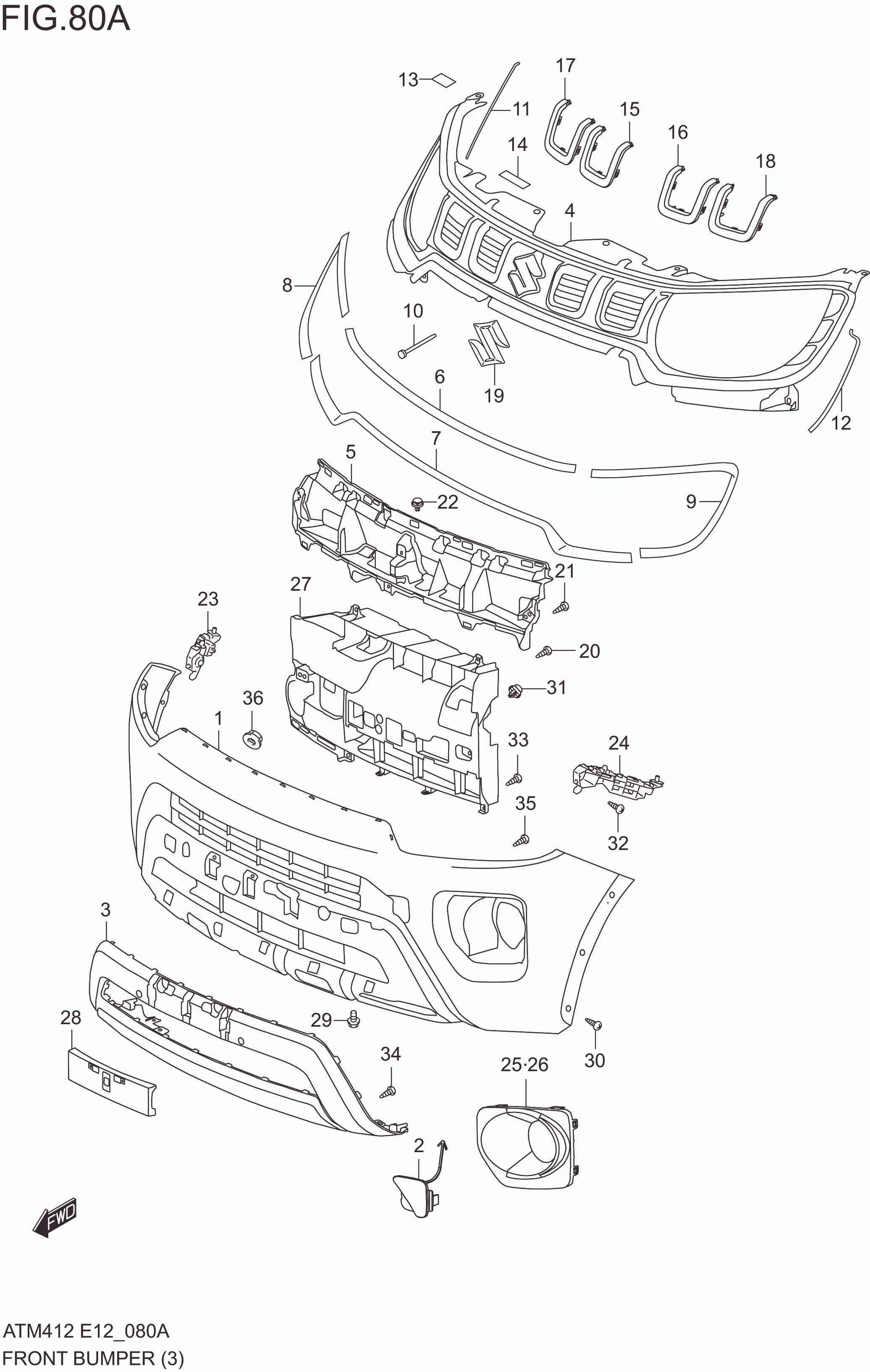

FIG. 80A FRONT BUMPER (TYPE-2:GL)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	71711M73S00-799	BUMPER, FRONT(PRIMARY)	1	Rp1.205.000	PAINT TO MATCH
2	71712M82S00-5PK	CAP, TOWING HOOK(PRIMARY)	1	Rp11.500	PAINT TO MATCH
3	71721M82S10-5PK	GARNISH,FR BUMPER LOWER	1	Rp223.500
4	72111M82S00-5PK	GRILLE,RADIATOR UPPER	1	Rp659.500
5	72112M82S00-000	COVER,RADIATOR UPPER GRILLE	1	Rp95.500
6	72121M82S00-5PK	MOLDING,RADIATOR GRILLE UPR	1	Rp71.000
7	72122M82S00-5PK	MOLDING,RADIATOR GRILLE LWR	1	Rp134.500
8	72123M82S00-5PK	MOLDING,RADIATOR GRILLE SIDE, RH	1	Rp49.000
9	72124M82S00-5PK	MOLDING,RADIATOR GRILLE SIDE, LH	1	Rp49.000
10	72127M62R00-000	PIN,RADIATOR GRILLE UPR	2	Rp8.000
11	72131M66R00-000	PROTECTOR,RADIATOR GRILLE,RH	1	Rp5.500
12	72132M66R00-000	PROTECTOR,RADIATOR GRILLE,LH	1	Rp5.500
13	72151M62R00-000	PAD,RADIATOR GRILLE NO.1	2	Rp6.500
14	72152M62R00-000	PAD,RADIATOR GRILLE NO.2	4	Rp7.000
15	72161M73S00-0PG	GARNISH,RADIATOR GRILLE NO.1, RH	1	Rp67.500
16	72162M73S00-0PG	GARNISH,RADIATOR GRILLE NO.1, LH	1	Rp67.500
17	72163M73S00-0PG	GARNISH,RADIATOR GRILLE NO.2, RH	1	Rp70.000
18	72164M73S00-0PG	GARNISH,RADIATOR GRILLE NO.2, LH	1	Rp70.000
19	77811M54GC0-0PG	EMBLEM,MARK(S)	1	Rp85.500
20	03541-0412A-000	SCREW	19	Rp3.500
21	03541-0516A-000	SCREW	6	Rp3.500
22	09409M08006-000	CLIP	8	Rp5.000
23	71731M66R00-000	HOLDER,FRBUMPER SIDE,RH	1	Rp23.000
24	71732M66R00-000	HOLDER,FRBUMPER SIDE,LH	1	Rp23.000
25	71751M82S00-5PK	BEZEL,FRONT FOG LAMP,RH	1	Rp31.000
26	71761M82S00-5PK	BEZEL,FRONT,FOG LAMP,LH	1	Rp31.000
27	71772M82S00-000	GUIDE,GRILLEAIR	1	Rp219.500
28	71790M82S00-5PK	GARNISH,BUMPER LICENSE	1	Rp79.500
29	09122-76006-000	BOLT	3	Rp13.000
30	09136-05068-000	SCREW	2	Rp15.000
31	09409M07L01-000	CLIP	2	Rp5.000
32	03541-0512A-000	SCREW	4	Rp3.500
33	03541-0516A-000	SCREW	6	Rp3.500
34	03541-0516A-000	SCREW	4	Rp3.500
35	03541-0516A-000	SCREW	4	Rp3.500
36	08316-1005A-000	NUT	2	Rp2.500
