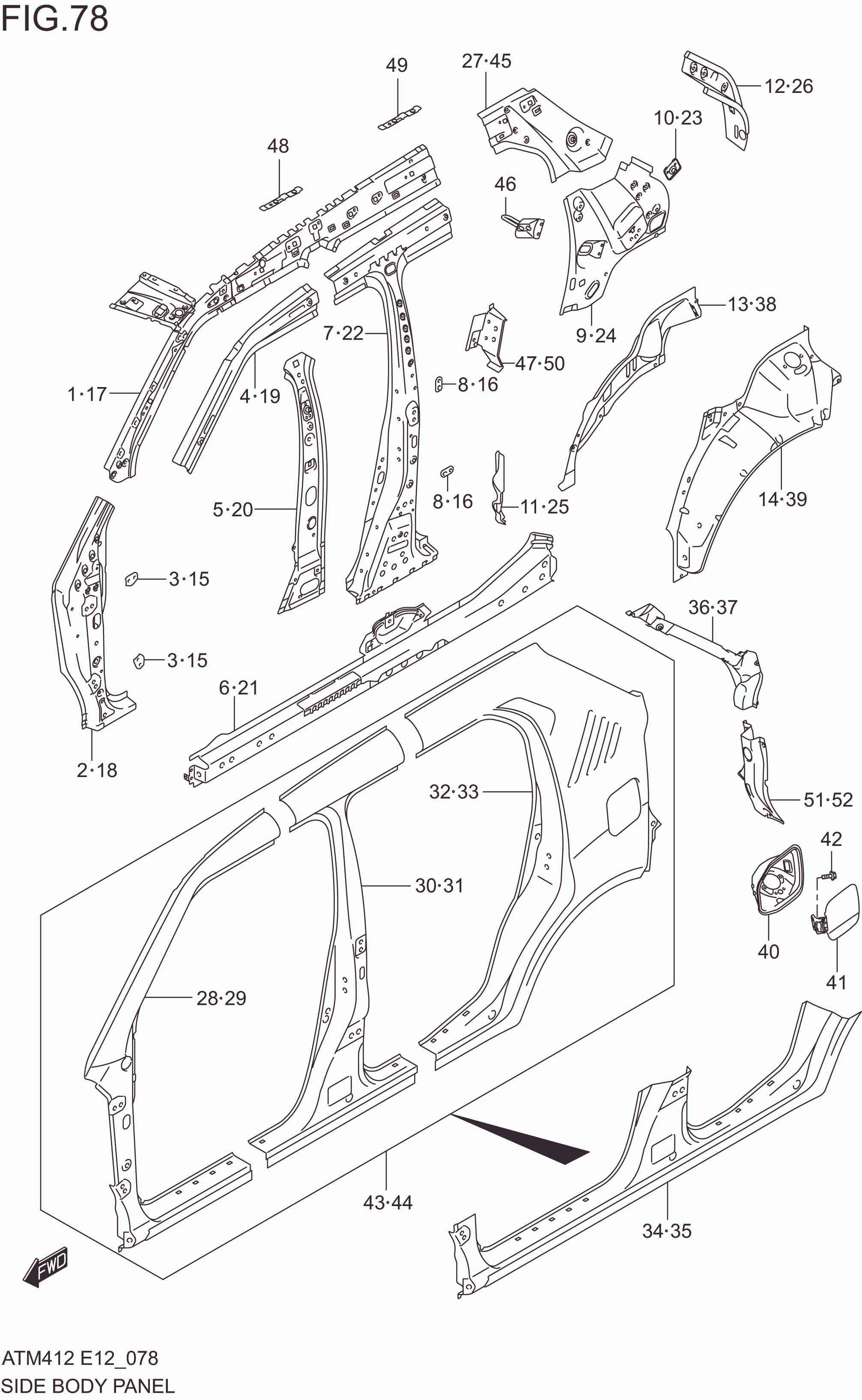

FIG. 78 SIDE BODY PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	63110M66R00-000	PANEL, FR PILLAR INNER RH	1	Rp510.500
2	63140M66R00-000	REINF, FR DOOR HINGE RH	1	Rp675.000
3	63144M76M00-000	RETAINER, FRONT DOOR HINGE LWR	2	Rp9.500
4	63150M66R00-000	REINF, FR PLR UPR RH	1	Rp366.500
5	63210M66R00-000	PANEL, CTR PILLAR INNER RH	1	Rp230.500
6	63230M66R00-000	STRENGTH, SIDE SILL RH	1	Rp796.000
7	63240M66R00-000	REINFORCEMENT, CTR PILLAR RH	1	Rp1.033.000
8	63243M74P00-000	RETAINER, RR DOOR HINGE	2	Rp8.500
9	63311M66R00-000	PANEL, QUARTER INNER RH	1	Rp267.000
10	63391M62R00-000	REINF,SEAT BELT RETRACTOR	1	Rp13.500
11	63314M66R00-000	REINF,RR WHEEL HOUSE FR,R	1	Rp71.000
12	63320M66R00-000	PANEL,QTR INNER REAR,R	1	Rp186.000
13	63410M66R00-000	PANEL, WHEEL HOUSE INNER RH	1	Rp617.500
14	63480M66R00-000	PANEL, WHL HS OTR RH	1	Rp309.000
15	63144M76M00-000	RETAINER, FRONT DOOR HINGE LWR	1	Rp9.500
16	63243M74P00-000	RETAINER,REAR DOOR HINGE	2	Rp8.500
17	63510M66R00-000	PANEL, FR PILLAR INNER LH	1	Rp510.500
18	63540M66R00-000	REINF, FRONT DOOR HINGE LH	1	Rp675.000
19	63550M66R00-000	REINF,HINGE PILLAR UPR,LH	1	Rp366.500
20	63610M66R00-000	PANEL, CTR PILLAR INNER LH	1	Rp230.500
21	63630M66R00-000	STRENGTH, SIDE SILL LH	1	Rp796.000
22	63640M66R00-000	REINF,REAR DOOR HINGE,LH	1	Rp1.033.000
23	63391M62R00-000	REINF,SEAT BELT RETRACTOR	1	Rp13.500
24	63711M66R00-000	PANEL, QUARTER INNER LH	1	Rp267.000
25	63714M66R00-000	REINF,RR WHEEL HOUSE FR,LH	1	Rp75.000
26	63720M66R00-000	PANEL,QTR INNER REAR,LH	1	Rp186.000
27	63730M66R00-000	PANEL,QTR INNER UPPER,LH	1	Rp226.000
28-1	64111M66R00-P11	PANEL, A-PLR RH	1	Rp1.180.000	GL
28-2	64111M66R10-P11	PANEL, A-PLR RH	1	Rp1.072.500	GLX
29-1	64511M66R00-P11	PANEL, A-PLR LH	1	Rp1.180.000	GL
29-2	64511M66R10-P11	PANEL, A-PLR LH	1	Rp1.072.500	GLX
30-1	64111M66R00-P21	PANEL, B-PLR RH	1	Rp1.200.500	GL
30-2	64111M66R10-P21	PANEL, B-PLR RH	1	Rp1.200.500	GLX
31-1	64511M66R00-P21	PANEL, B-PLR LH	1	Rp1.200.500	GL
31-2	64511M66R10-P21	PANEL, B-PLR LH	1	Rp1.200.500	GLX
32-1	64111M66R00-P31	PANEL, QTR RH	1	Rp1.453.500	GL
32-2	64111M66R10-P31	PANEL, QTR RH	1	Rp1.453.500	GLX
33-1	64511M66R00-P31	PANEL, QTR LH	1	Rp1.453.500	GL
33-2	64511M66R10-P31	PANEL, QTR LH	1	Rp1.453.500	GLX
34-1	64111M66R00-P41	PANEL, SIDE SILL RH	1	Rp3.445.000	GL
34-2	64111M66R10-P41	PANEL, SIDE SILL RH	1	Rp3.445.000	GLX
35-1	64511M66R00-P41	PANEL, SIDE SILL LH	1	Rp3.445.000	GL
35-2	64511M66R10-P41	PANEL, SIDE SILL LH	1	Rp3.445.000	GLX
36	64120M66R00-000	EXTENSION, SIDE BODY OTR RH	1	Rp176.000
37	64520M66R00-000	EXTENSION, SIDE BODY OTR LH	1	Rp176.000
38	63810M66R00-000	PANEL,WHEEL HOUSE INR,LH	1	Rp617.500
39	63880M66R00-000	PANEL,WHEEL HOUSE OTR,LH	1	Rp309.000
40	64561M66R00-000	BOX,FUEL INLET	1	Rp79.000
41	64570M66R00-000	LID,FUEL INLET	1	Rp99.000
42	01550M0612A-000	BOLT	2	Rp5.000
43-1	64111M66R00-000	PANEL ASSY, BODY OUTER RH	1	Rp3.728.000	GL
43-2	64111M66R10-000	PANEL ASSY, BODY OUTER RH	1	Rp3.728.000	GLX
44-1	64511M66R00-000	PANEL ASSY, BODY OUTER LH	1	Rp3.728.000	GL
44-2	64511M66R10-000	PANEL ASSY, BODY OUTER LH	1	Rp3.728.000	GLX
45	63330M66R00-000	PANEL,QTR INNER UPPER,R	1	Rp226.000
46	63340M66R00-000	STRIKER,RR SEAT BACK	2	Rp31.500
47	63350M66R00-000	REINF,RR DOOR STRIKER,R	1	Rp35.000
48	63161M62R00-000	BRACKET,ROOF RAIL FR	2	Rp11.000	GLX
49	63162M62R00-000	BRACKET,ROOF RAIL RR	2	Rp10.500	GLX
50	63750M66R00-000	REINF,RR DOOR STRIKER,LH	1	Rp37.000
51	64130M66R00-000	PANEL,RR LAMP HOUSE OTR,RH	1	Rp136.500
52	64530M66R00-000	PANEL,RR LAMP HOUSE OTR,LH	1	Rp136.500
