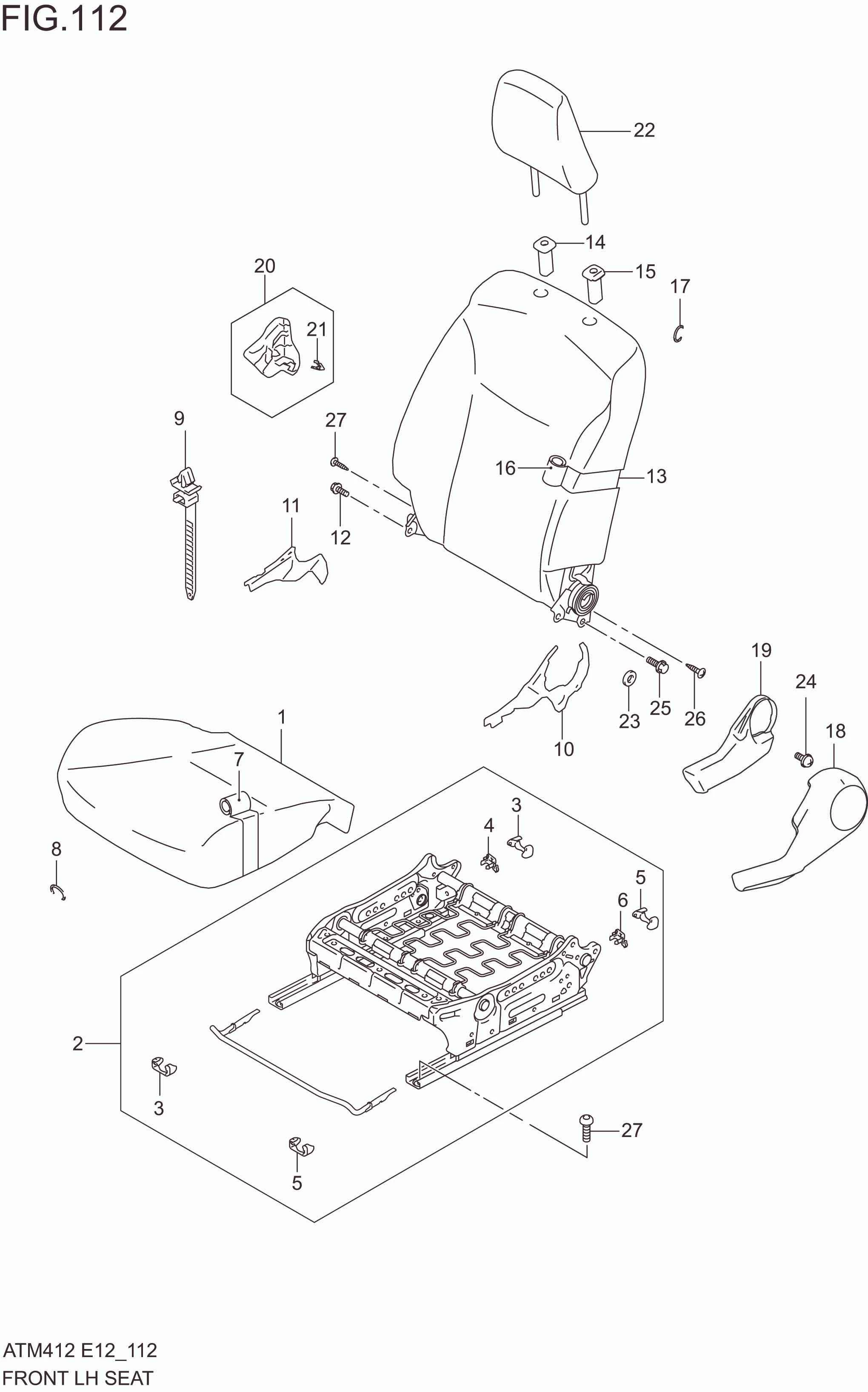

FIG. 112 FRONT LH SEAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	85160M66RA0-000	PAD, FR CUSH	1	Rp523.000
2	85603M66R02-000	FRAME ASSY, FR CUSH LH	1	Rp2.257.000
3	86652M74P50-000	.CAP, FR ADJUSTER LOWER	2	Rp5.500
4	86653M74P50-000	.CAP, FR ADJUSTER UPPER	1	Rp5.500
5	86652M74P50-000	.CAP, FR ADJUSTER LOWER	2	Rp5.500
6	86653M74P50-000	.CAP, FR ADJUSTER UPPER	1	Rp5.500
7-1	85680M66RA0-CMC	TRIM, FR CUSH LH	1	Rp466.500	TYPE-1
7-2	85680M82SA0-D6Q	TRIM, FR CUSH LH	1	Rp266.500	TYPE-2,3:GL
7-3	85680M82SA0-D6U	TRIM, FR CUSH LH	1	Rp277.500	TYPE-2,3:GLX
8	09387-19001-000	RING	10	Rp9.000
9	85191M74L00-000	CLAMP	1	Rp9.000	TYPE-1
10	85242M68P00-5PK	COVER, FR RCLNG INSIDE LOWER LH (BLACK)	1	Rp22.000
11	85242M68P10-5PK	COVER, FR RCLNG INSIDE LOWER LH (BLACK)	1	Rp23.000
12	85295M58J01-000	BOLT, FR BACK FIX	1	Rp9.000
13	85306M66RA0-000	BACK S/ASSY, FR LH	1	Rp1.659.000
14	85341M68P00-5PK	GUIDE, HEADRESTRAINT (BLACK)	1	Rp15.000
15	85840M68P00-5PK	GUIDE, HEADRESTRAINT (BLACK)	1	Rp31.000
16-1	85880M66RB0-CMC	TRIM, FR BACK LH	1	Rp652.500	TYPE-1
16-2	85880M66RB0-D6Q	TRIM, FR BACK LH	1	Rp458.000	TYPE-2,3:GL
16-3	85880M66RB0-D6U	TRIM, FR BACK LH	1	Rp458.000	TYPE-2,3:GLX
17	09387-19001-000	RING	12	Rp9.000
18	85711M62R00-5PK	KNOB, RCLNG LH (BLACK)	1	Rp38.500
19	85720M62R00-5PK	COVER, FR RCLNG OUTSIDE LH (BLACK)	1	Rp24.000
20	85741M68P10-5PK	COVER, FR RCLNG INSIDE LH (BLACK)	1	Rp29.000
21	85249M68P00-000	CLIP	1	Rp9.500
22-1	86401M68P70-PWC	HEADRESTRAINT ASSY, FR	1	Rp430.500	TYPE-1
22-2	86401M68P70-QMK	HEADRESTRAINT ASSY, FR	1	Rp361.500	TYPE-2,TYPE-3
23	87286-81P00-000	BUSH, FR BACK FIX	1	Rp37.000
24	09132M04038-000	SCREW	1	Rp5.500
25	01550-1016A-000	BOLT	2	Rp5.500
26	03541-0410A-000	SCREW	2	Rp11.000
27	09119M08118-000	BOLT	4	Rp6.500
