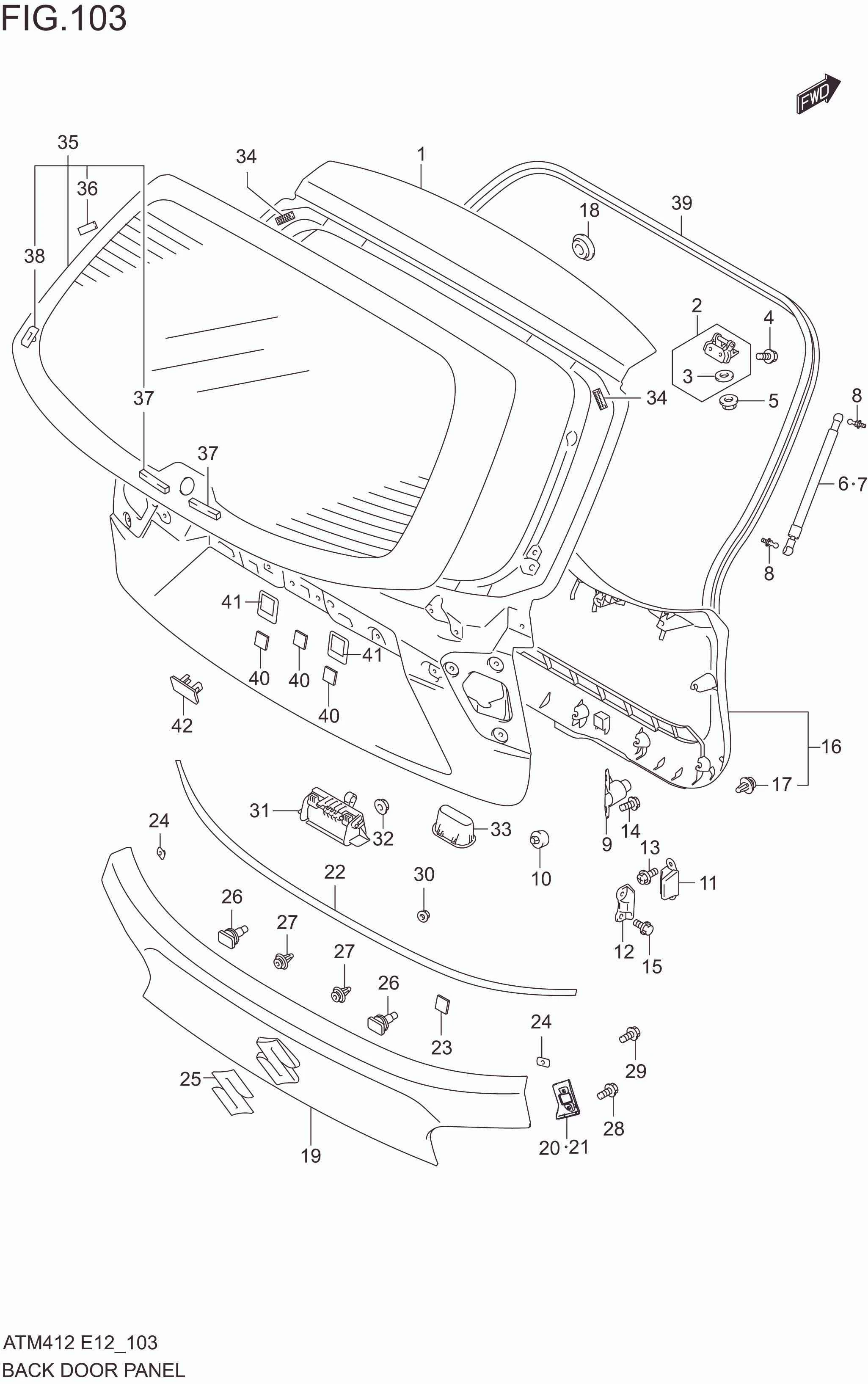

FIG. 103 BACK DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	69100M66R00-000	PANEL ASSY, BACK DOOR	1	Rp1.481.500
2	69510M68P01-000	HINGE, BACK DOOR	2	Rp62.500
3	69571M76G00-000	.PACKING, BACK DR HINGE FEMALE	2	Rp6.500
4	09111M06115-000	BOLT	4	Rp5.500
5	08361-2508A-000	NUT	2	Rp16.500
6	81850M66R00-000	BALANCER, BACK DOOR RH	1	Rp235.000
7	81860M66R00-000	BALANCER, BACK DOOR LH	1	Rp235.000
8	81871M68P01-000	BALLSTUD, BACK DOOR BALANCER	4	Rp31.000
9	82760M62R00-000	CUSHION, BACK DOOR SIDE	2	Rp17.000
10	82684-72M00-000	CUSHION, BACK DOOR LOWER	2	Rp21.000
11	82771-62R00-000	STOPPER, BACK DOOR SIDE PILLAR	2	Rp158.500
12	82781M62R00-000	STOPPER, BACK DOOR SIDE DOOR	2	Rp11.000
13	35181-71L00-000	SCREW, BACK DR SIDE STOPPER PLR	4	Rp22.500
14	01551-0612C-000	SCREW	4	Rp18.000
15	01551-0612C-000	SCREW	4	Rp18.000
16	83770M66R00-5PK	TRIM, BACK DOOR	1	Rp417.500
17	09409M10321-000	.CLIP	12	Rp5.000
18	09250M20031-000	CAP	1	Rp4.500
19-9	83941M66R11-ZYR	GARNISH, BACK DOOR LICENSE	1	Rp1.145.500	TYPE-2,3:GLX
19-8	83941M66R11-ZYE	GARNISH, BACK DOOR LICENSE	1	Rp1.145.500	TYPE-2,TYPE-3
19-7	83941M66R11-WAD	GARNISH, BACK DOOR LICENSE	1	Rp1.145.500	TYPE-2,3:GL
19-6	83941M66R11-Z2S	GARNISH, BACK DOOR LICENSE	1	Rp1.190.000
19-4	83941M66R11-ZWR	GARNISH, BACK DOOR LICENSE	1	Rp1.255.000	TYPE-1
19-3	83941M66R11-ZNZ	GARNISH, BACK DOOR LICENSE	1	Rp1.224.500
19-2	83941M66R11-ZHJ	GARNISH, BACK DOOR LICENSE	1	Rp1.193.500
19-1	83941M66R11-ZAM	GARNISH, BACK DOOR LICENSE	1	Rp1.133.500
19-5	83941M66R11-ZWS	GARNISH, BACK DOOR LICENSE	1	Rp1.231.000	TYPE-1
20	83942M62R00-000	COVER, BACK DOOR LIC GARNISH RH	1	Rp14.000
21	83943M62R00-000	COVER, BACK DOOR LIC GARNISH LH	1	Rp14.000
22	83948M62R00-000	PAD, BACK DOOR LICENSE GARNISH	1	Rp12.500
23	83949M66R00-000	PAD, BACK DOOR LICENSE GARNISH	2	Rp6.500
24	77272M65P00-000	NUT, BACK DOOR LICENSE GARNISH	2	Rp6.000
25	77811M54GC0-0PG	EMBLEM, MARK(S)	1	Rp85.500
26	83947M66R00-000	BOLT, BACK DOOR LICENSE GARNISH	4	Rp9.000
27	09409M08003-000	CLIP	7	Rp6.500
28	03541-0512A-000	SCREW	2	Rp3.500
29	09116M05026-000	BOLT	2	Rp6.500
30	08316-1006A-000	NUT	4	Rp2.000
31-1	82850M66R00-000	HANDLE ASSY, BACK DOOR LOCK	1	Rp93.500	GL
31-2	82850M66R10-000	HANDLE ASSY, BACK DOOR LOCK	1	Rp101.000	GLX
32	08316-1006A-000	NUT	2	Rp2.000
33	82841-82G02-000	HANDLE, BACK DOOR INNER	1	Rp7.000
34	84515M65D10-000	FEMALE, GLASS FASTENER NO.2	2	Rp22.000
35	84570M66R20-000	GLASS, BACK DOOR WINDOW	1	Rp1.037.000
36	84513M75J00-000	.MALE, GLASS FASTENER NO.2	2	Rp8.500
37	84572M71L00-000	.SPACER, BACK DOOR GLASS	2	Rp5.500
38	84575M74L00-000	.CLIP, GLASS FASTENER	2	Rp16.000
39	84681M66R00-000	WEATHERSTRIP, BACK DOOR OPNG	1	Rp316.500
40	44281-29C00-000	PAD, LICENSE PLATE	3	Rp6.000
41	77151-82000-000	SEAL, BACK DOOR LICENSE PLATE	2	Rp7.000
42	39977M66R00-000	CAP, BACK CAMERA	1	Rp16.000
