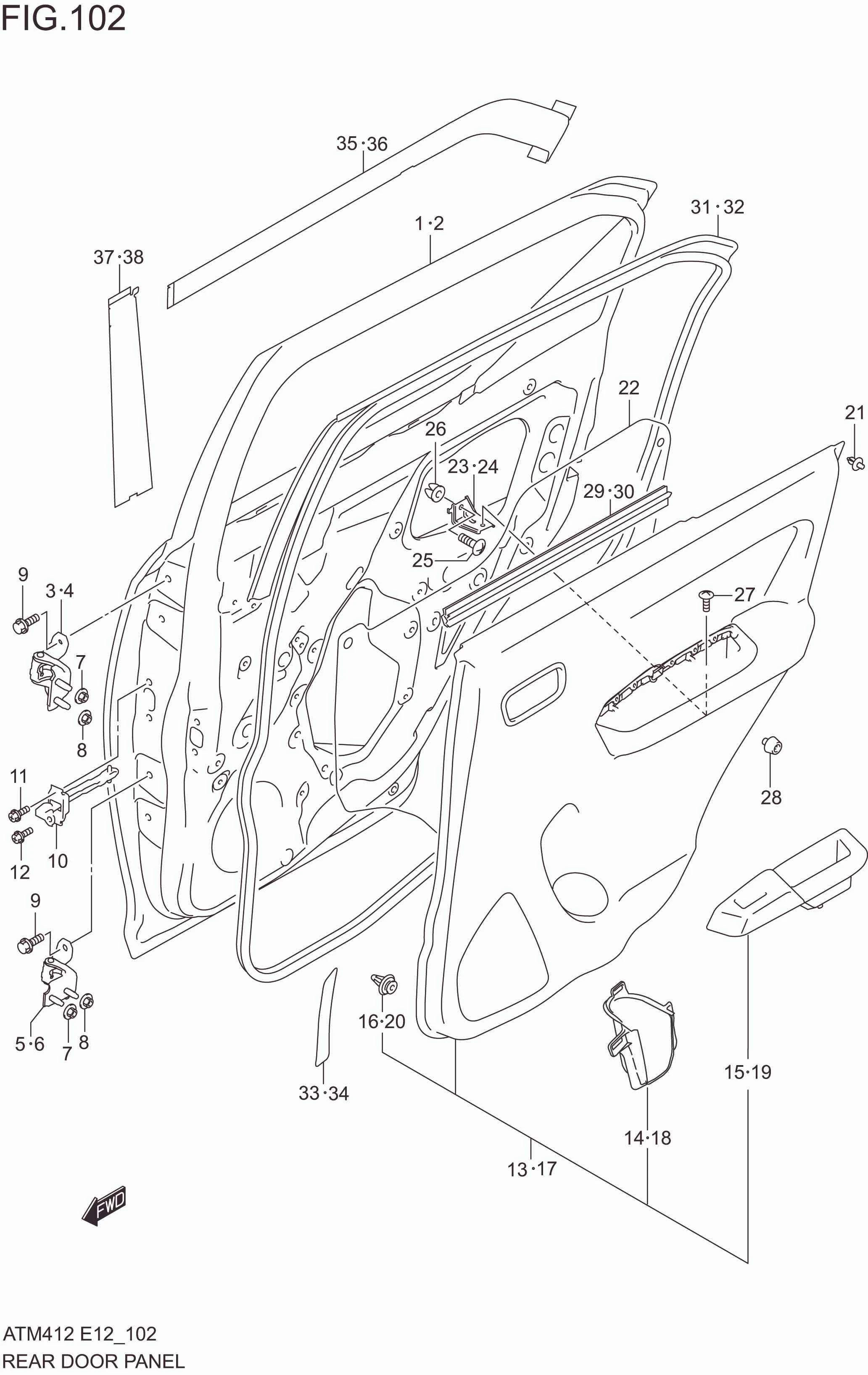

FIG. 102 REAR DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	68003M66R01-000	PANEL ASSY, REAR DOOR RH	1	Rp3.411.000
2	68004M66R01-000	PANEL ASSY, REAR DOOR LH	1	Rp3.411.000
3	69410M66R00-000	HINGE, REAR DOOR UPPER RH	1	Rp85.500
4	69420M66R00-000	HINGE, REAR DOOR UPPER LH	1	Rp85.500
5	69430M66R00-000	HINGE, REAR DOOR LOWER RH	1	Rp85.500
6	69440M66R00-000	HINGE, REAR DOOR LOWER LH	1	Rp85.500
7	08361-2508A-000	NUT	4	Rp16.500
8	09159M08151-000	NUT	4	Rp11.500
9	09103M08557-000	BOLT	8	Rp8.500
10	81830M66R00-000	STOP, REAR DOOR OPEN	2	Rp63.000
11	09103-06248-000	BOLT	4	Rp23.500
12	09112-08015-000	BOLT	2	Rp32.000
13	83730M66RA0-CFG	TRIM, REAR DOOR RH	1	Rp586.000
14	83734M62R00-000	.POCKET, RR DOOR TRIM RH	1	Rp29.500
15	83735M62R10-PF4	.BEZEL, RR DOOR TRIM RH	1	Rp31.500
16	09409M10321-000	.CLIP	8	Rp5.000
17	83740M66RA0-CFG	TRIM, REAR DOOR LH	1	Rp586.000
18	83744M62R00-000	.POCKET, RR DOOR TRIM LH	1	Rp29.500
19	83745M62R10-PF4	.BEZEL, RR DOOR TRIM LH	1	Rp31.500
20	09409M10321-000	.CLIP	8	Rp5.000
21	09409M06314-000	CLIP	2	Rp5.500
22	83913M62R00-000	COVER, REAR DOOR SEALING	2	Rp12.500
23	83751-75HA0-000	BRACKET, REAR DOOR TRIM RH	1	Rp8.000
24	83756-75HA0-000	BRACKET, REAR DOOR TRIM LH	1	Rp8.000
25	03241M0612A-000	SCREW	2	Rp6.500
26	71851M70F00-000	NUT, SIDE DOOR TRIM BRKT	2	Rp4.000
27	09132-05058-000	SCREW	2	Rp14.000
28	82711-51K00-000	STOPPER, DOOR	4	Rp39.000
29	83871M66R00-000	WEATHERSTRIP, RR DOOR INNER RH	1	Rp64.000
30	83881M66R00-000	WEATHERSTRIP, RR DOOR INNER LH	1	Rp64.000
31	84661M66R00-000	WEATHERSTRIP, RR DOOR OPNG RH	1	Rp338.000
32	84671M66R00-000	WEATHERSTRIP, RR DOOR OPNG LH	1	Rp338.000
33	83935M66R00-000	PROTECTOR, RR DR OUTER LWR RH	1	Rp49.500
34	83936M66R00-000	PROTECTOR, RR DR OUTER LWR LH	1	Rp49.500
35	83925M66R00-0CB	TAPE, REAR DOOR OUTER ROOF RH (BLACK)	1	Rp88.500	BODY COLOR:ZHJ,Z2S,ZNZ,ZWR,ZWS,CMN,CMM
36	83926M66R00-0CB	TAPE, REAR DOOR OUTER ROOF LH (BLACK)	1	Rp91.000	BODY COLOR:ZHJ,Z2S,ZNZ,ZWR,ZWS,CMN,CMM
37	83927M66R00-0CB	TAPE, REAR DOOR PILLAR FR RH (BLACK)	1	Rp55.000	BODY COLOR:ZHJ,Z2S,ZNZ,ZWR,ZWS,CMN,CMM
38	83928M66R00-0CB	TAPE, REAR DOOR PILLAR FR LH (BLACK)	1	Rp55.000	BODY COLOR:ZHJ,Z2S,ZNZ,ZWR,ZWS,CMN,CMM
