Ignis MC 2023

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 73 FRONTHOOD PANEL FIG. 74 FRONT FENDER PANEL (GL)FIG. 75 FRONT FENDER PANEL(GLX)FIG. 76 FRONT BODY PANEL FIG. 77 FLOOR PANEL FIG. 78 SIDE BODY PANEL FIG. 79 ROOF PANEL FIG. 80 FRONT BUMPER (TYPE-1:GL)FIG. 80A FRONT BUMPER (TYPE-2:GL)FIG. 81 FRONT BUMPER (TYPE-1:GLX)FIG. 81A FRONT BUMPER (TYPE-2:GLX)FIG. 82 REAR BUMPER (TYPE-1:GL)FIG. 82A REAR BUMPER (TYPE-2:GL)FIG. 83 REAR BUMPER (TYPE-1:GLX)FIG. 83A REAR BUMPER (TYPE-2:GLX)FIG. 84 INSTRUMENT PANEL FIG. 85 VENTILATOR FIG. 86 HEATER UNIT (W/MANUAL AIR CONDITIONER)FIG. 87 HEATER UNIT (W/AUTO AIR CONDITIONER)FIG. 88 HEATER CONTROL (W/MANUAL AIR CONDITIONER:W/REAR DEFOGGER)FIG. 89 HEATER CONTROL (W/AUTO AIR CONDITIONER)FIG. 90 CONSOLE BOX FIG. 91 FLOOR CARPET FIG. 92 INTERIOR TRIM FIG. 93 COVER/CAP FIG. 94 FUEL LID OPENER FIG. 95 ROOF SIDE PAD FIG. 96 ROOF LINING FIG. 97 MOLDING FIG. 98 SPLASH GUARD (GLX)FIG. 99 EMBLEM FIG. 100 WIND SHIELD FIG. 101 FRONT DOOR PANEL FIG. 102 REAR DOOR PANEL FIG. 103 BACK DOOR PANEL FIG. 104 FRONT DOOR REGULATOR FIG. 105 REAR DOOR REGULATOR (W/REAR POWER WINDOW)FIG. 106 FRONT DOOR LOCK FIG. 107 REAR DOOR LOCK FIG. 108 BACK DOOR LOCK FIG. 109 MIRROR/SUNVISOR (GL)FIG. 110 MIRROR/SUNVISOR (GLX)FIG. 111 SEAT BELT FIG. 112 FRONT LH SEAT FIG. 113 FRONT RH SEAT (GL)FIG. 114 FRONT RH SEAT (GLX)FIG. 115 REAR SEAT FIG. 116 PARCEL SHELF FIG. 117 FUEL TANK FIG. 118 TOOL FIG. 119 AIR CONDITIONER FIG. 120 COMPRESSOR

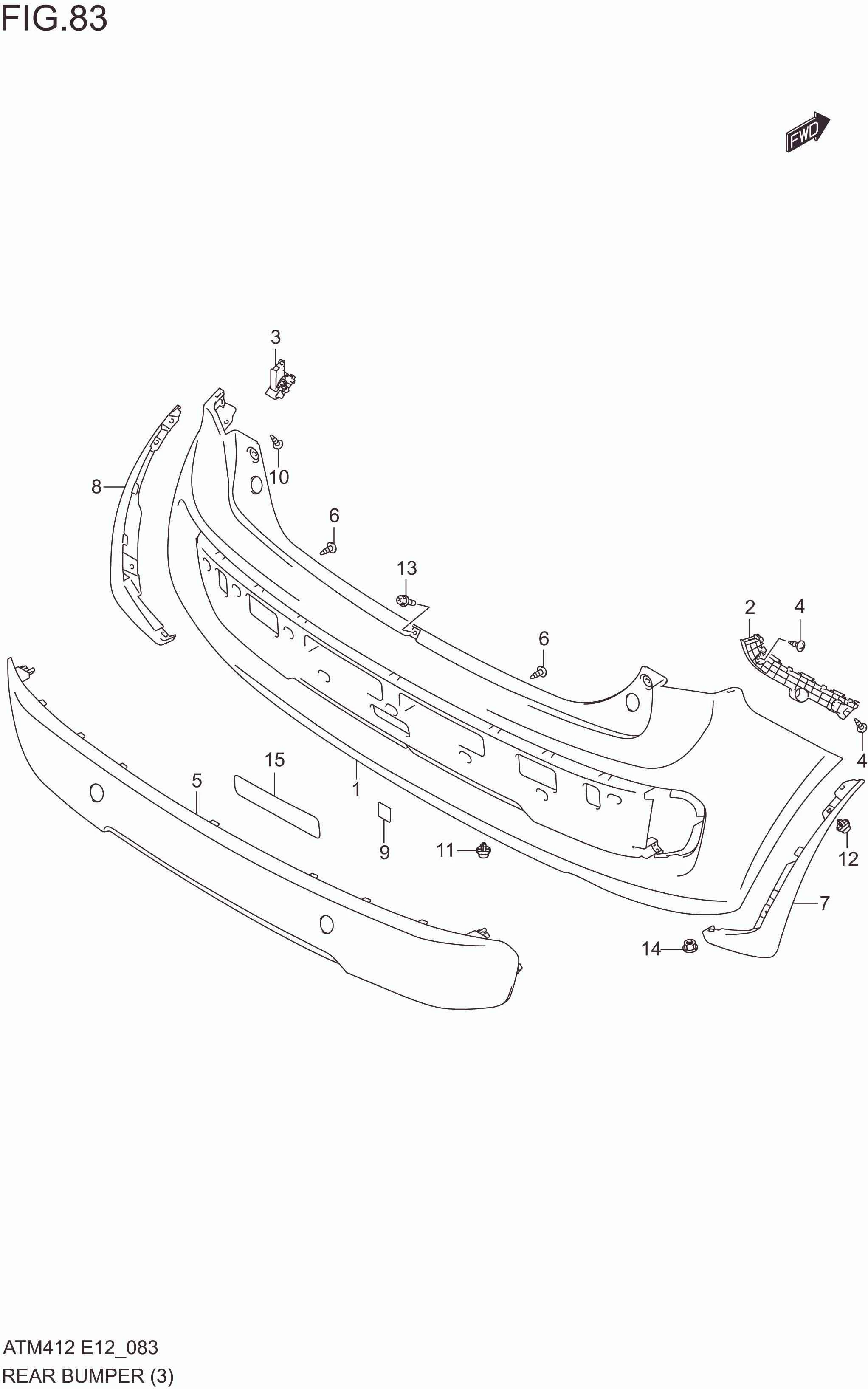

FIG. 83 REAR BUMPER (TYPE-1:GLX)

FIG. 83 REAR BUMPER (TYPE-1:GLX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	71811M66R30-799	BUMPER,REAR(PRIMARY)	1	Rp1.189.000	PAINT TO MATCH
2	71821M66R00-000	HOLDER, RR BUMPER SIDE RH	1	Rp27.000
3	71822M66R00-000	HOLDER, RR BUMPER SIDE LH	1	Rp27.000
4	03541-0512A-000	SCREW, RR BUMPER HOLDER SIDE	4	Rp3.500
5	71831M66R20-5PK	GARNISH, REAR BUMPER	1	Rp232.500
6	03541-0516A-000	SCREW	3	Rp3.500
7	71870M66R10-5PK	EXTENSION ASSY, RR BPR SIDE RH	1	Rp93.500
8	71880M66R10-5PK	EXTENSION ASSY, RR BPR SIDE LH	1	Rp93.500
9	75463-74P10-000 SUB: 75463-71L00-000	PAD, REAR BUMPER	1	Rp92.500
10	09136-05068-000	SCREW	2	Rp15.000
11	09409M08006-000	CLIP	3	Rp5.000
12	09409M08006-000	CLIP	4	Rp5.000
13	01551-0616C-000	BOLT	3	Rp14.500
14	08316-1005A-000	NUT	6	Rp2.500
15	71851M62R00-000	PAD,REAR SKIRT	1	Rp23.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
