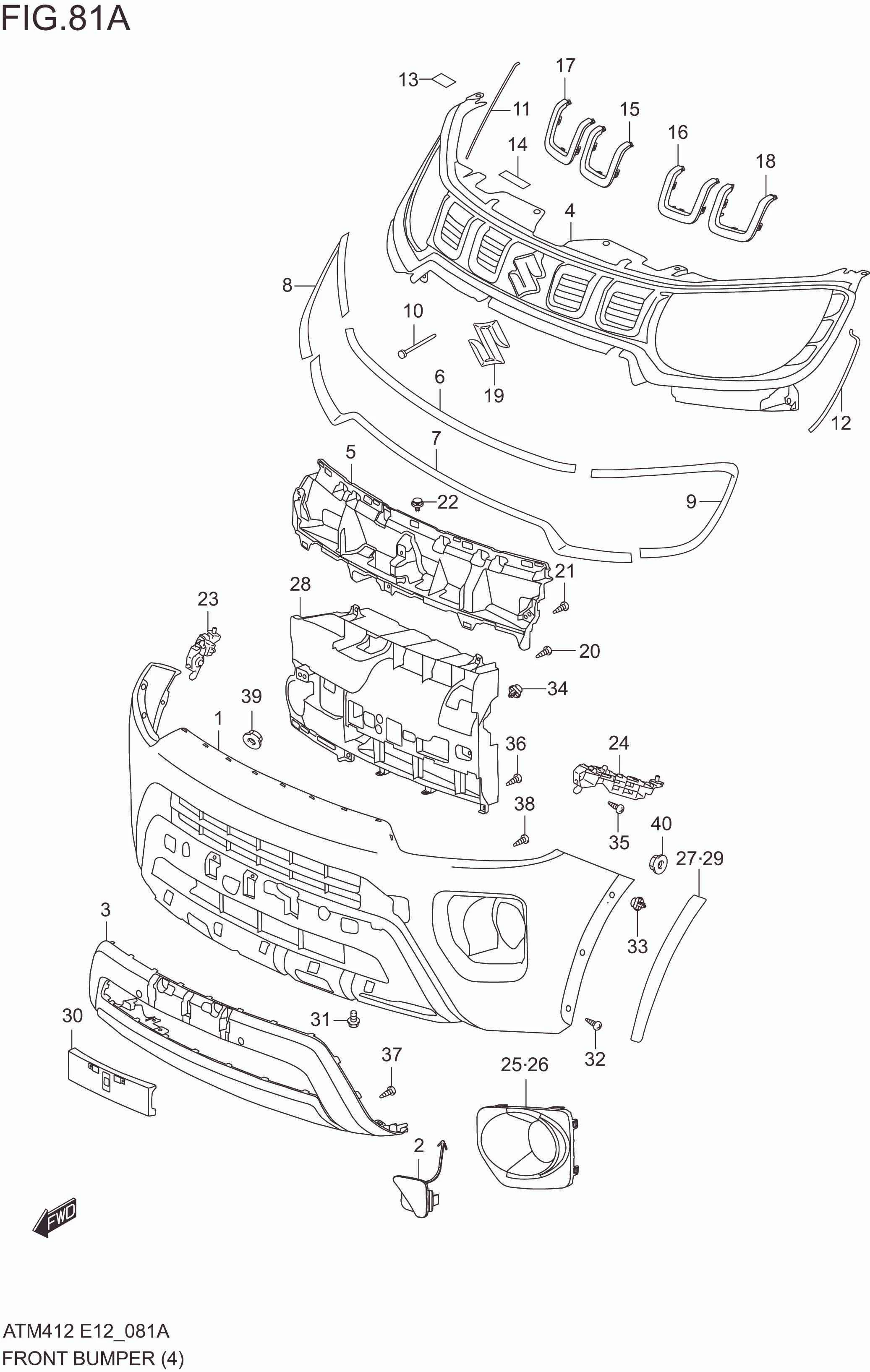

FIG. 81A FRONT BUMPER (TYPE-2:GLX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	71711M73S10-799	BUMPER, FRONT(PRIMARY)	1	Rp1.130.000	PAINT TO MATCH
2	71712M82S00-5PK	CAP, TOWING HOOK(PRIMARY)	1	Rp11.500	PAINT TO MATCH
3	71721M82S10-5PK	GARNISH,FR BUMPER LOWER	1	Rp223.500
4	72111M82S00-5PK	GRILLE,RADIATOR UPPER	1	Rp659.500
5	72112M82S00-000	COVER,RADIATOR UPPER GRILLE	1	Rp95.500
6	72121M66R10-0PG	MOLDING,RADIATOR GRILLE UPR	1	Rp297.500
7	72122M66R10-0PG	MOLDING,RADIATOR GRILLE LWR	1	Rp400.000
8	72123M66R10-0PG	MOLDING,RADIATOR GRILLE SIDE, RH	1	Rp181.000
9	72124M66R10-0PG	MOLDING,RADIATOR GRILLE SIDE, LH	1	Rp181.000
10	72127M62R00-000	PIN,RADIATOR GRILLE UPR	2	Rp8.000
11	72131M66R00-000	PROTECTOR,RADIATOR GRILLE,RH	1	Rp5.500
12	72132M66R00-000	PROTECTOR,RADIATOR GRILLE,LH	1	Rp5.500
13	72151M62R00-000	PAD,RADIATOR GRILLE NO.1	2	Rp6.500
14	72152M62R00-000	PAD,RADIATOR GRILLE NO.2	4	Rp7.000
15	72161M73S00-0PG	GARNISH,RADIATOR GRILLE NO.1, RH	1	Rp67.500
16	72162M73S00-0PG	GARNISH,RADIATOR GRILLE NO.1, LH	1	Rp67.500
17	72163M73S00-0PG	GARNISH,RADIATOR GRILLE NO.2, RH	1	Rp70.000
18	72164M73S00-0PG	GARNISH,RADIATOR GRILLE NO.2, LH	1	Rp70.000
19	77811M54GC0-0PG	EMBLEM,MARK(S)	1	Rp85.500
20	03541-0412A-000	SCREW	19	Rp3.500
21	03541-0516A-000	SCREW	6	Rp3.500
22	09409M08006-000	CLIP	8	Rp5.000
23	71731M66R00-000	HOLDER, FR BUMPER SIDE RH	1	Rp23.000
24	71732M66R00-000	HOLDER,FR BUMPER SIDE LH	1	Rp23.000
25	71751M73S10-5PK	BEZEL,FRONT FOG LAMP,RH	1	Rp24.500
26	71761M73S10-5PK	BEZEL,FRONT FOG LAMP,LH	1	Rp24.500
27	71770M66R10-5PK	EXTENSION ASSY, FR BPR SIDE RH	1	Rp90.500
28	71772M82S00-000	GUIDE,GRILLE AIR	1	Rp219.500
29	71780M66R10-5PK	EXTENSION ASSY, FR BPR SIDE LH	1	Rp90.500
30	71790M82S00-5PK	GARNISH,BUMPER LICENSE	1	Rp79.500
31	09122-76006-000	BOLT	3	Rp13.000
32	09136-05068-000	SCREW	2	Rp15.000
33	09409M07L01-000	CLIP	2	Rp5.000
34	09409M07L01-000	CLIP	2	Rp5.000
35	03541-0512A-000	SCREW	4	Rp3.500
36	03541-0516A-000	SCREW	6	Rp3.500
37	03541-0516A-000	SCREW	4	Rp3.500
38	03541-0516A-000	SCREW	4	Rp3.500
39	08316-1005A-000	NUT	6	Rp2.500
40	08316-1005A-000	NUT	2	Rp2.500
