Ignis MC 2023

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 73 FRONTHOOD PANEL FIG. 74 FRONT FENDER PANEL (GL)FIG. 75 FRONT FENDER PANEL(GLX)FIG. 76 FRONT BODY PANEL FIG. 77 FLOOR PANEL FIG. 78 SIDE BODY PANEL FIG. 79 ROOF PANEL FIG. 80 FRONT BUMPER (TYPE-1:GL)FIG. 80A FRONT BUMPER (TYPE-2:GL)FIG. 81 FRONT BUMPER (TYPE-1:GLX)FIG. 81A FRONT BUMPER (TYPE-2:GLX)FIG. 82 REAR BUMPER (TYPE-1:GL)FIG. 82A REAR BUMPER (TYPE-2:GL)FIG. 83 REAR BUMPER (TYPE-1:GLX)FIG. 83A REAR BUMPER (TYPE-2:GLX)FIG. 84 INSTRUMENT PANEL FIG. 85 VENTILATOR FIG. 86 HEATER UNIT (W/MANUAL AIR CONDITIONER)FIG. 87 HEATER UNIT (W/AUTO AIR CONDITIONER)FIG. 88 HEATER CONTROL (W/MANUAL AIR CONDITIONER:W/REAR DEFOGGER)FIG. 89 HEATER CONTROL (W/AUTO AIR CONDITIONER)FIG. 90 CONSOLE BOX FIG. 91 FLOOR CARPET FIG. 92 INTERIOR TRIM FIG. 93 COVER/CAP FIG. 94 FUEL LID OPENER FIG. 95 ROOF SIDE PAD FIG. 96 ROOF LINING FIG. 97 MOLDING FIG. 98 SPLASH GUARD (GLX)FIG. 99 EMBLEM FIG. 100 WIND SHIELD FIG. 101 FRONT DOOR PANEL FIG. 102 REAR DOOR PANEL FIG. 103 BACK DOOR PANEL FIG. 104 FRONT DOOR REGULATOR FIG. 105 REAR DOOR REGULATOR (W/REAR POWER WINDOW)FIG. 106 FRONT DOOR LOCK FIG. 107 REAR DOOR LOCK FIG. 108 BACK DOOR LOCK FIG. 109 MIRROR/SUNVISOR (GL)FIG. 110 MIRROR/SUNVISOR (GLX)FIG. 111 SEAT BELT FIG. 112 FRONT LH SEAT FIG. 113 FRONT RH SEAT (GL)FIG. 114 FRONT RH SEAT (GLX)FIG. 115 REAR SEAT FIG. 116 PARCEL SHELF FIG. 117 FUEL TANK FIG. 118 TOOL FIG. 119 AIR CONDITIONER FIG. 120 COMPRESSOR

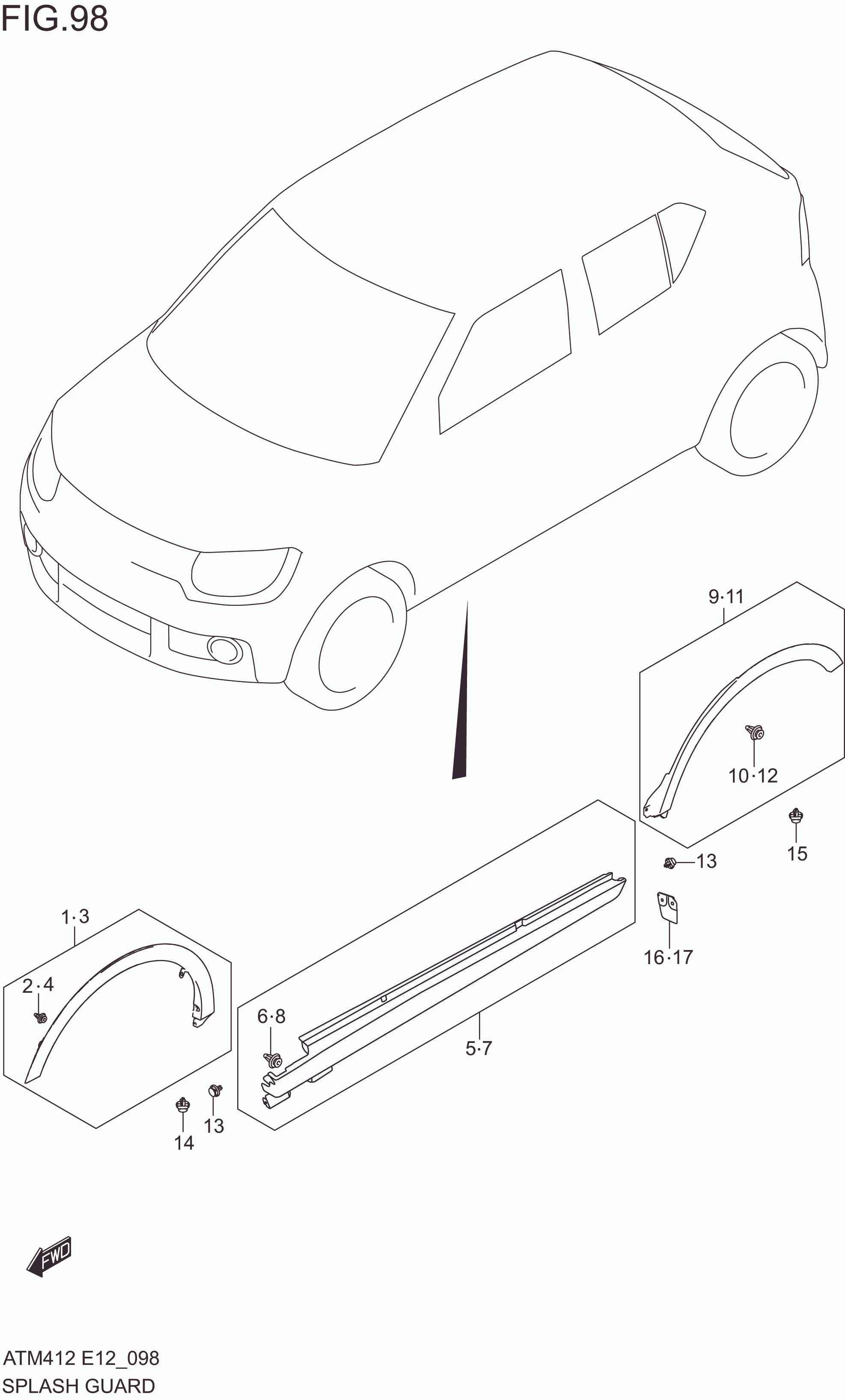

FIG. 98 SPLASH GUARD (GLX)

FIG. 98 SPLASH GUARD (GLX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	77210M66R11-5PK	GUARD ASSY, FR FENDER SPLASH RH	1	Rp187.500
2	83717-79J00-000	.CLIP	5	Rp35.000
3	77220M66R11-5PK	GUARD ASSY, FR FENDER SPLASH LH	1	Rp187.500
4	83717-79J00-000	.CLIP	5	Rp35.000
5-1	77230M66R10-5PK	GUARD ASSY, SIDE SILL SPLASH RH	1	Rp373.000	TYPE-1
5-2	77230M82S10-5PK	GUARD ASSY, SIDE SILL SPLASH LH	1	Rp290.000	TYPE-2,TYPE-3
6	09409-10327-000	.CLIP	9	Rp5.000
7-1	77240M66R10-5PK	GUARD ASSY, SIDE SILL SPLASH LH	1	Rp373.000	TYPE-1
7-2	77240M82S10-5PK	GUARD ASSY, SIDE SILL SPLASH LH	1	Rp290.000	TYPE-2,TYPE-3
8	09409-10327-000	.CLIP	9	Rp5.000
9	77250M66R12-5PK	GUARD ASSY, RR FENDER SPLASH RH	1	Rp170.000
10	09409-10330-000	.CLIP	4	Rp19.000
11	77260M66R12-5PK	GUARD ASSY, RR FENDER SPLASH LH	1	Rp170.000
12	09409-10330-000	.CLIP	4	Rp19.000
13	09409-15304-000	CLIP, SIDE SILL SPLASH GUARD	16	Rp18.500
14	09409M07L01-000	CLIP, FR FENDER SPLASH GUARD	2	Rp5.000
15	09409M07L01-000	CLIP, RR FENDER SPLASH GUARD	4	Rp5.000
16	77233M73S10-000	STRAKE,SIDE SILL REAR,RH	1	Rp10.500	TYPE-2,TYPE-3
17	77243M73S10-000	STRAKE,SIDE SILL REAR,LH	1	Rp10.500	TYPE-2,TYPE-3

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
