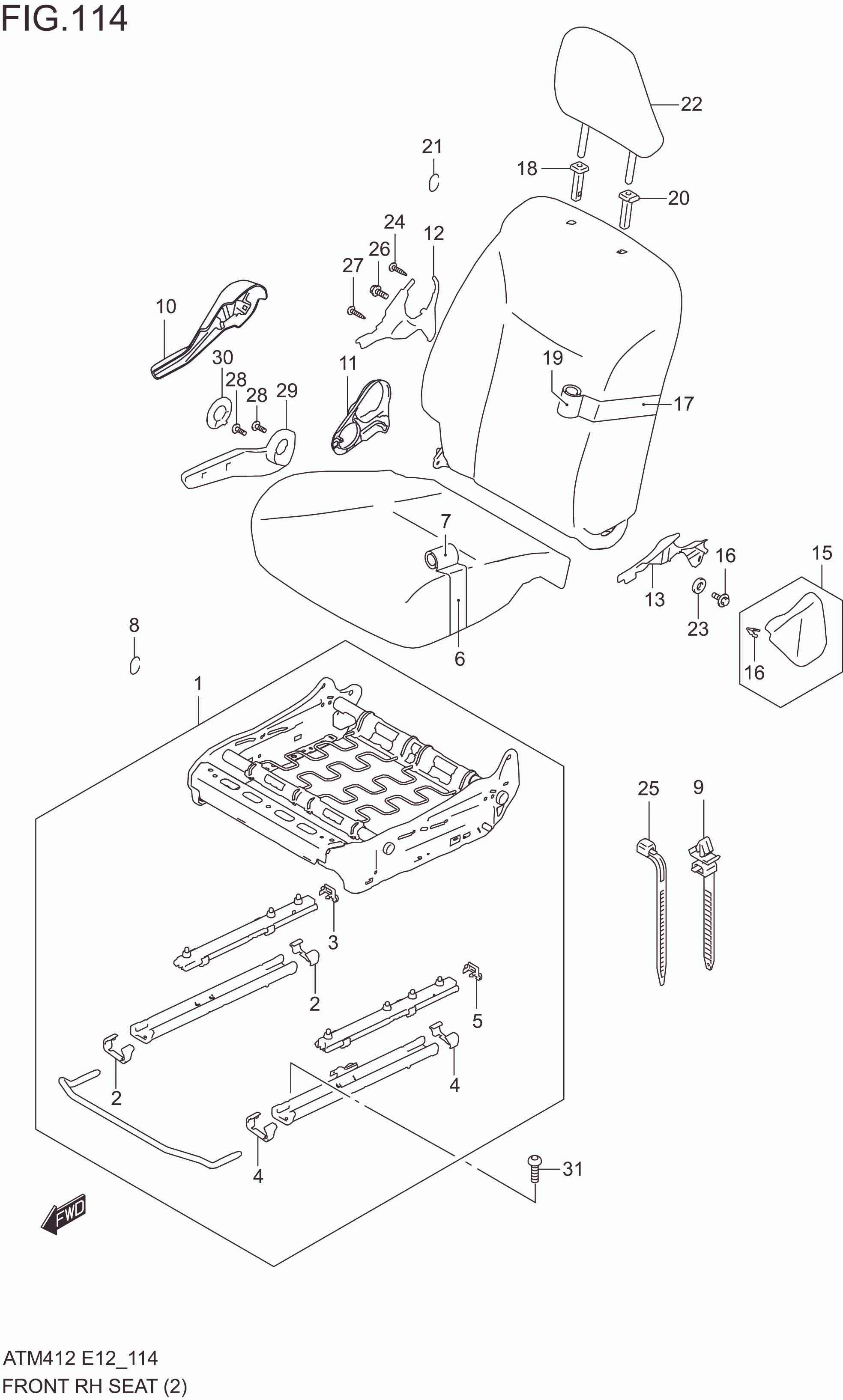

FIG. 114 FRONT RH SEAT (GLX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	85103M66R24-000	FRAME ASSY, FR CUSH RH	1	Rp2.365.000
2	86652M74P50-000	.CAP, FR ADJUSTER LOWER	2	Rp5.500
3	86653M74P50-000	.CAP, FR ADJUSTER UPPER	1	Rp5.500
4	86652M74P50-000	.CAP, FR ADJUSTER LOWER	2	Rp5.500
5	86653M74P50-000	.CAP, FR ADJUSTER UPPER	1	Rp5.500
6	85160M66RA0-000	PAD, FR CUSH RH	1	Rp523.000
7-1	85180M66RB0-CMC	TRIM, FR CUSH RH	1	Rp466.500	TYPE-1
7-2	85180M82SB0-D6U	TRIM, FR CUSH RH	1	Rp392.500	TYPE-2,TYPE-3
8	09387-19001-000	RING	6	Rp9.000
9	85191M74L00-000	CLAMP	1	Rp9.000
10	85211M62R00-5PK	KNOB, RCLNG RH (BLACK)	1	Rp35.000
11	85221M62R20-5PK	COVER, FR RCLNG OUTSIDE RH (BLACK)	1	Rp23.500
12	85222M68P00-5PK	COVER, FR RCLNG INSIDE LOWER RH (BLACK)	1	Rp22.000
13	85222M68P10-5PK	COVER, FR RCLNG INSIDE LOWER RH (BLACK)	1	Rp23.000
14	85241M68P10-5PK	COVER, FR RCLNG INSIDE RH (BLACK)	1	Rp29.000
15	85249M68P00-000	CLIP	1	Rp9.500
16	85295M58J01-000	BOLT, FR BACK FIX	1	Rp9.000
17	85305M66RA0-000	BACK S/ASSY, FR RH	1	Rp1.659.000
18	85341M68P00-5PK	GUIDE, HEADRESTRAINT (BLACK)	1	Rp15.000
19-1	85380M66RA0-CMC	TRIM, FR BACK RH	1	Rp652.500	TYPE-1
19-2	85380M66RA0-D6U	TRIM, FR BACK RH	1	Rp454.500	TYPE-2,TYPE-3
20	85840M68P00-5PK	GUIDE, HEADRESTRAINT	1	Rp31.000
21	09387-19001-000	RING	12	Rp9.000
22-1	86401M68P70-PWC	HEADRESTRAINT ASSY, FR	1	Rp430.500	TYPE-1
22-2	86401M68P70-QMK	HEADRESTRAINT ASSY, FR	1	Rp361.500	TYPE-2,TYPE-3
23	87286-81P00-000	BUSH, FR BACK FIX	1	Rp37.000
24	09132M04038-000	SCREW	1	Rp5.500
25	09407M14403-000	CLAMP	1	Rp5.000
26	01550-1016A-000	BOLT	2	Rp5.500
27	03541-0410A-000	SCREW	2	Rp11.000
28	09132M05065-000	SCREW	2	Rp5.500
29	85213M62R20-5PK	LEVER, SEAT LIFTER RH (BLACK)	1	Rp66.500
30	85214M68PB0-5PK	CAP, LIFTER LEVER	1	Rp11.500
31	09119M08118-000	BOLT	4	Rp6.500
