Ignis MC 2023

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 73 FRONTHOOD PANEL FIG. 74 FRONT FENDER PANEL (GL)FIG. 75 FRONT FENDER PANEL(GLX)FIG. 76 FRONT BODY PANEL FIG. 77 FLOOR PANEL FIG. 78 SIDE BODY PANEL FIG. 79 ROOF PANEL FIG. 80 FRONT BUMPER (TYPE-1:GL)FIG. 80A FRONT BUMPER (TYPE-2:GL)FIG. 81 FRONT BUMPER (TYPE-1:GLX)FIG. 81A FRONT BUMPER (TYPE-2:GLX)FIG. 82 REAR BUMPER (TYPE-1:GL)FIG. 82A REAR BUMPER (TYPE-2:GL)FIG. 83 REAR BUMPER (TYPE-1:GLX)FIG. 83A REAR BUMPER (TYPE-2:GLX)FIG. 84 INSTRUMENT PANEL FIG. 85 VENTILATOR FIG. 86 HEATER UNIT (W/MANUAL AIR CONDITIONER)FIG. 87 HEATER UNIT (W/AUTO AIR CONDITIONER)FIG. 88 HEATER CONTROL (W/MANUAL AIR CONDITIONER:W/REAR DEFOGGER)FIG. 89 HEATER CONTROL (W/AUTO AIR CONDITIONER)FIG. 90 CONSOLE BOX FIG. 91 FLOOR CARPET FIG. 92 INTERIOR TRIM FIG. 93 COVER/CAP FIG. 94 FUEL LID OPENER FIG. 95 ROOF SIDE PAD FIG. 96 ROOF LINING FIG. 97 MOLDING FIG. 98 SPLASH GUARD (GLX)FIG. 99 EMBLEM FIG. 100 WIND SHIELD FIG. 101 FRONT DOOR PANEL FIG. 102 REAR DOOR PANEL FIG. 103 BACK DOOR PANEL FIG. 104 FRONT DOOR REGULATOR FIG. 105 REAR DOOR REGULATOR (W/REAR POWER WINDOW)FIG. 106 FRONT DOOR LOCK FIG. 107 REAR DOOR LOCK FIG. 108 BACK DOOR LOCK FIG. 109 MIRROR/SUNVISOR (GL)FIG. 110 MIRROR/SUNVISOR (GLX)FIG. 111 SEAT BELT FIG. 112 FRONT LH SEAT FIG. 113 FRONT RH SEAT (GL)FIG. 114 FRONT RH SEAT (GLX)FIG. 115 REAR SEAT FIG. 116 PARCEL SHELF FIG. 117 FUEL TANK FIG. 118 TOOL FIG. 119 AIR CONDITIONER FIG. 120 COMPRESSOR

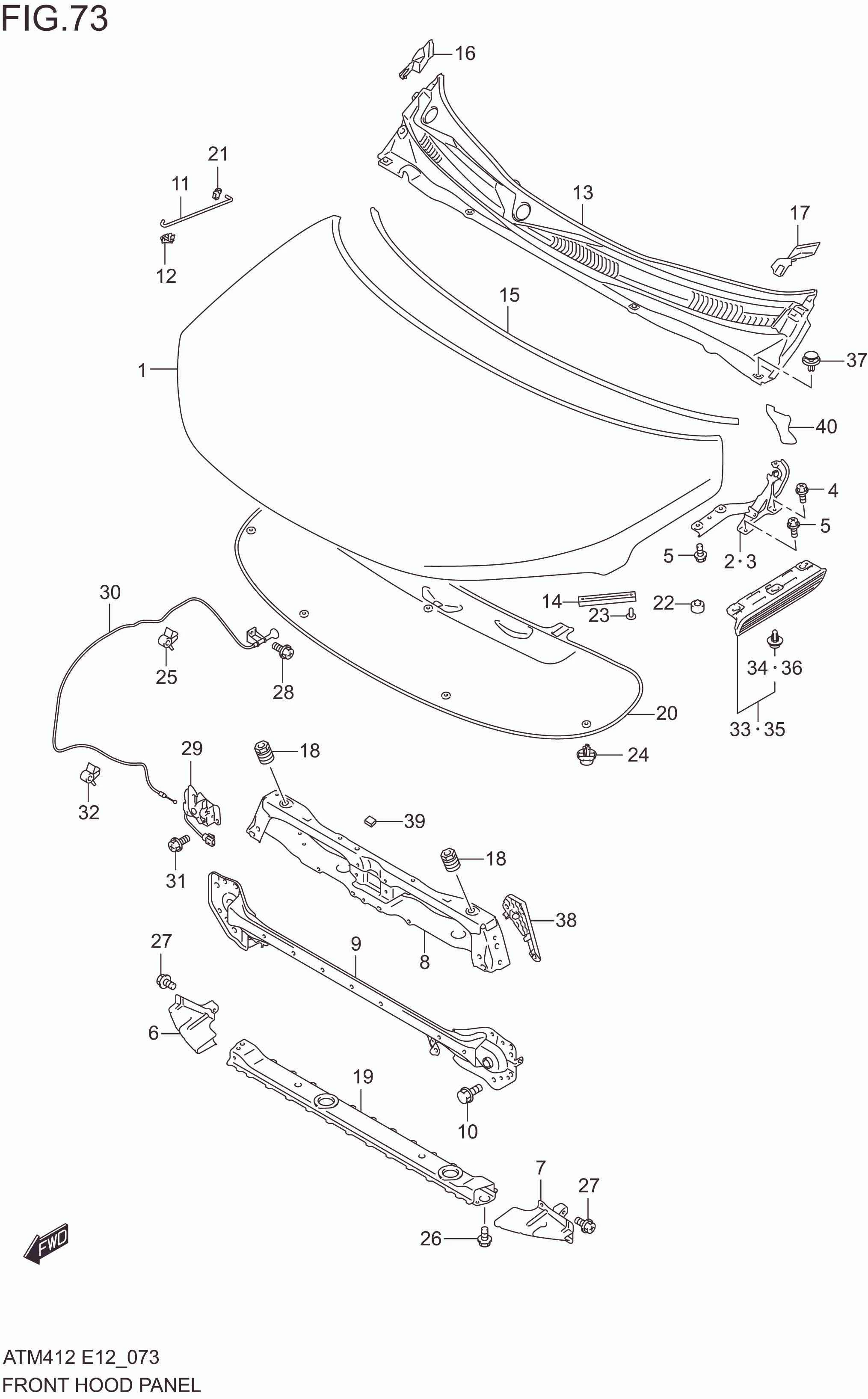

FIG. 73 FRONTHOOD PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	57300M66R00-000	PANEL, FRONT HOOD	1	Rp1.113.000
2	57410-62R00-000	HINGE, FR HOOD RH	1	Rp487.000
3	57420-62R00-000	HINGE, FR HOOD LH	1	Rp494.500
4	01550M0612A-000	BOLT	4	Rp5.000
5	01550M0612A-000	BOLT	4	Rp5.000
6	72470M66R00-000	ABSORBER,FR BUMPER LWR,RH	1	Rp65.500
7	72480M66R00-000	ABSORBER,FR BUMPER LWR,LH	1	Rp65.500
8	58230M66R00-000	MEMBER, HOOD LOCK	1	Rp307.000
9-1	58270M66R00-000	MEMBER, FR BUMPER UPR	1	Rp383.500	TYPE-1
9-2	58270M82S00-000	MEMBER, FR BUMPER UPR	1	Rp237.500	TYPE-2,TYPE-3
10	01551-0820A-000	BOLT	7	Rp17.500
11	72311-62R01-000	STAY, FRONT HOOD	1	Rp45.000
12	72312M76M00-000	HOLDER, FR HOOD STAY	1	Rp9.000
13	72330M66R00-5PK	GARNISH ASSY, COWL TOP (BLACK)	1	Rp322.500
14	72361M62R00-000	SEAL, HOOD FR	2	Rp10.000
15	72360M66R00-000	SEAL, HOOD RR	1	Rp93.000
16	72341M66R00-5PK	GARNISH, COWL TOP SIDE RH (BLACK)	1	Rp8.500
17	72342M66R00-5PK	GARNISH, COWL TOP SIDE LH (BLACK)	1	Rp8.500
18	72372M70F10-000	CUSHION, FR HOOD SIDE	2	Rp6.000
19	72380M66R00-000	CROSSMEMBER, FR LWR	1	Rp282.000
20	72440M66R00-000	SILENCER,FRONT HOOD	1	Rp200.500
21	09209M09L02-000	LINKAGE	1	Rp4.500
22	09321-10023-000	CUSHION,FRONT HOOD SIDE	2	Rp6.000
23	09409M05319-000	CLIP,HOOD FRONT SEAL	4	Rp5.500
24	09409M07L01-000	CLIP,HOOD SILENCER	6	Rp5.000
25	76238M70F00-000	CLAMP,HOOD LATCH RELEASE CABLE	2	Rp5.000
26	09103M06317-000	BOLT,FR LOWER CROSSMEMBER	4	Rp6.500
27	02162-0612A-000	BOLT,FR BUMPER LWR ABSORBER	6	Rp11.000
28	02162-0612A-000	BOLT,HOOD LATCH RELEASE LEVER	1	Rp11.000
29	82110M66R00-000	LATCH, HOOD	1	Rp93.500
30	82160M66R00-000	CABLE, HOOD LATCH RELEASE	1	Rp90.000
31	02162-0616A-000	SCREW	3	Rp3.000
32	76238M70F00-000	CLAMP, RELEASE CABLE FR	5	Rp5.000
33	72410M66R00-5PK	GARNISH,FRONT HOOD,RH	1	Rp32.500
34	09409-10327-000	.CLIP	3	Rp5.000
35	72420M66R00-5PK	GARNISH,FRONT HOOD,LH	1	Rp32.500
36	09409-10327-000	.CLIP	3	Rp5.000
37-1	09409M08006-000	CLIP,COWL TOP GARNISH	4	Rp5.000
37-2	09409M08006-000	CLIP,COWL TOP GARNISH	5	Rp5.000
38	72431M66R00-000	PROTECTOR,LAMP SUPPORT BRACE	1	Rp18.000
39	77117M80P00-000	FILM,HOOD LOCK MEMBER	2	Rp6.500
40	72351-81P00-000	GUIDE,COWL DRAIN	2	Rp140.000
