Ignis MC 2023

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 73 FRONTHOOD PANEL FIG. 74 FRONT FENDER PANEL (GL)FIG. 75 FRONT FENDER PANEL(GLX)FIG. 76 FRONT BODY PANEL FIG. 77 FLOOR PANEL FIG. 78 SIDE BODY PANEL FIG. 79 ROOF PANEL FIG. 80 FRONT BUMPER (TYPE-1:GL)FIG. 80A FRONT BUMPER (TYPE-2:GL)FIG. 81 FRONT BUMPER (TYPE-1:GLX)FIG. 81A FRONT BUMPER (TYPE-2:GLX)FIG. 82 REAR BUMPER (TYPE-1:GL)FIG. 82A REAR BUMPER (TYPE-2:GL)FIG. 83 REAR BUMPER (TYPE-1:GLX)FIG. 83A REAR BUMPER (TYPE-2:GLX)FIG. 84 INSTRUMENT PANEL FIG. 85 VENTILATOR FIG. 86 HEATER UNIT (W/MANUAL AIR CONDITIONER)FIG. 87 HEATER UNIT (W/AUTO AIR CONDITIONER)FIG. 88 HEATER CONTROL (W/MANUAL AIR CONDITIONER:W/REAR DEFOGGER)FIG. 89 HEATER CONTROL (W/AUTO AIR CONDITIONER)FIG. 90 CONSOLE BOX FIG. 91 FLOOR CARPET FIG. 92 INTERIOR TRIM FIG. 93 COVER/CAP FIG. 94 FUEL LID OPENER FIG. 95 ROOF SIDE PAD FIG. 96 ROOF LINING FIG. 97 MOLDING FIG. 98 SPLASH GUARD (GLX)FIG. 99 EMBLEM FIG. 100 WIND SHIELD FIG. 101 FRONT DOOR PANEL FIG. 102 REAR DOOR PANEL FIG. 103 BACK DOOR PANEL FIG. 104 FRONT DOOR REGULATOR FIG. 105 REAR DOOR REGULATOR (W/REAR POWER WINDOW)FIG. 106 FRONT DOOR LOCK FIG. 107 REAR DOOR LOCK FIG. 108 BACK DOOR LOCK FIG. 109 MIRROR/SUNVISOR (GL)FIG. 110 MIRROR/SUNVISOR (GLX)FIG. 111 SEAT BELT FIG. 112 FRONT LH SEAT FIG. 113 FRONT RH SEAT (GL)FIG. 114 FRONT RH SEAT (GLX)FIG. 115 REAR SEAT FIG. 116 PARCEL SHELF FIG. 117 FUEL TANK FIG. 118 TOOL FIG. 119 AIR CONDITIONER FIG. 120 COMPRESSOR

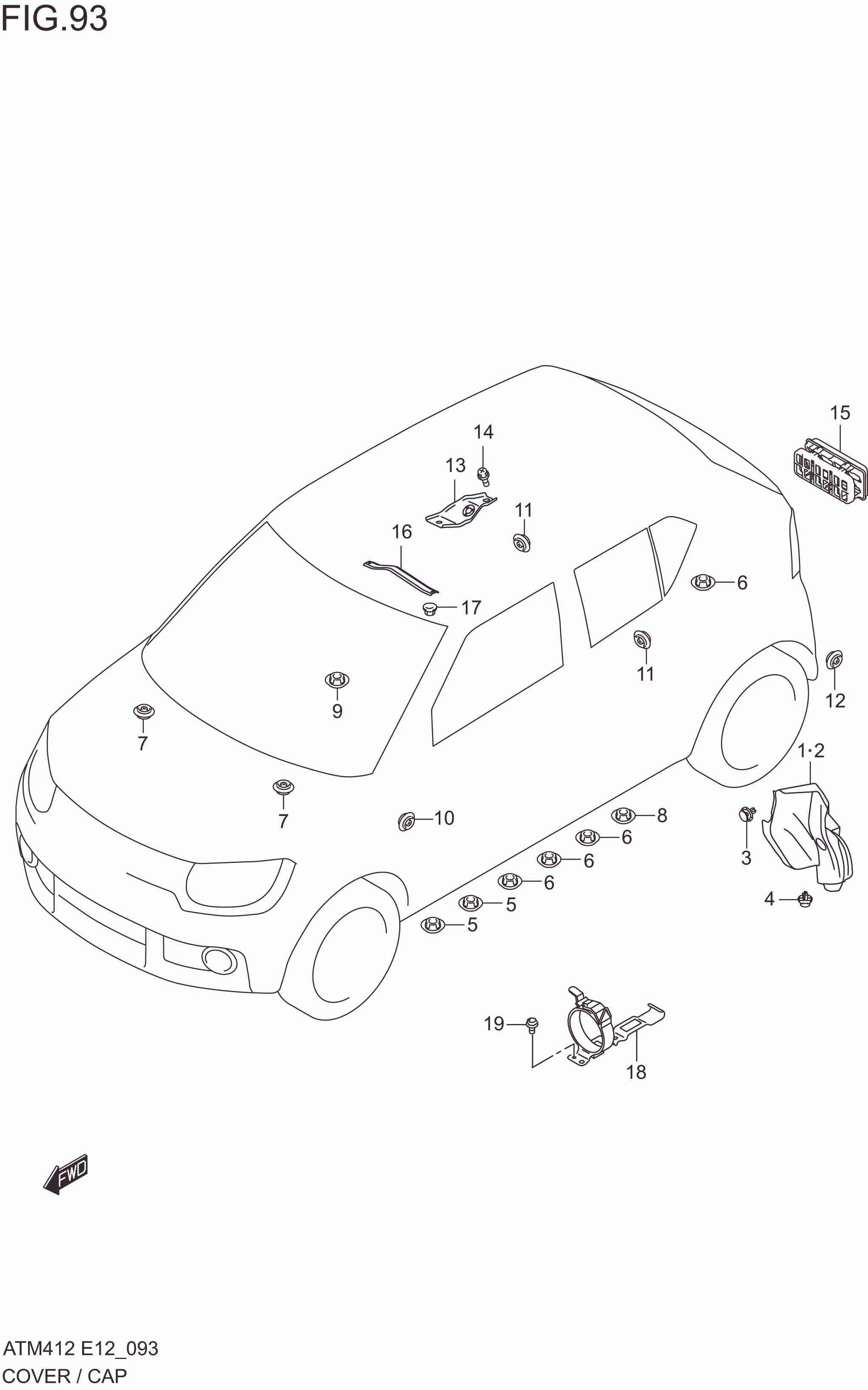

FIG. 93 COVER/CAP

FIG. 93 COVER/CAP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	72811M62R00-000	LINING, REAR WHEEL HSG RH	1	Rp47.500
2	72821M66R00-000	LINING, REAR WHEEL HSG LH	1	Rp48.500
3	09409M07L01-000	CLIP	4	Rp5.000
4	09409M08006-000	CLIP	1	Rp5.000
5	75431-64L00-000	CAP, MAIN FLOOR DRAIN	6	Rp43.000
6	75431-64L00-000	CAP, REAR FLOOR DRAIN	4	Rp43.000
7	09250-10016-000	CAP, COWL TOP	2	Rp14.000
8	09250M15022-000	CAP, MAIN FLOOR RR	2	Rp6.500
9	09250M15022-000	CAP, MAIN FLOOR TUNNEL	1	Rp6.500
10	09250-15012-000	CAP, DASH SIDE	8	Rp5.000
11	09250M20031-000	CAP, REAR FLOOR	2	Rp4.500
12	09250M20031-000	CAP, SILL SIDE INNER	2	Rp4.500
13	75496M66R00-000	BRACKET, RR SEAT BELT CTR	1	Rp29.500
14	01551-1025A-000	BOLT, RR SEAT BELT CTR BRKT	1	Rp29.000
15	77330M68P00-000	OUTLET, VENTILATOR	2	Rp74.000
16	72411M66R20-000	BRACE, FLOOR TUNNEL	1	Rp29.500
17	08316-1008A-000	NUT, FLOOR TUNNEL BRACE	2	Rp3.500
18	75630M73R10-000	BAND, FIRE EXTINGUISHER	1	Rp69.500	W/FIRE EXTINGUISHER
19	01550M0612A-000	BOLT	3	Rp5.000	W/FIRE EXTINGUISHER

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
