GSR 750

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 (1-B-2) GASKET SETFIG.2 (1-B-3) CYLINDER HEAD COVERFIG.3 (1-B-4) CYLINDER HEADFIG.4 (1-B-5) CRANKCASEFIG.5 (1-B-7) CRANKCASE COVERFIG.6 (1-B-9) OIL PAN/OIL PUMPFIG.7 (1-B-10) CRANKSHAFTFIG.8 (1-B-11) STARTER CLUTCHFIG.9 (1-B-12) CAMSHAFT/VALVEFIG.10 (1-B-14) CAM CHAINFIG.11 (1-B-15) THROTTLE BODYFIG.12 (1-C-2) THROTTLE BODY HOSE/JOINTFIG.13 (1-C-3) AIR CLEANERFIG.14 (1-C-4) MUFFLERFIG.15 (1-C-5) OIL COOLERFIG.16 (1-C-6) FUEL PUMPFIG.17 (1-C-7) WATER PUMPFIG.18 (1-C-8) RADIATORFIG.19 (1-C-9) RADIATOR HOSEFIG.20 (1-C-10) 2ND AIRFIG.21 (1-C-11) CLUTCHFIG.22 (1-C-12) TRANSMISSIONFIG.23 (1-C-14) GEAR SHIFTING

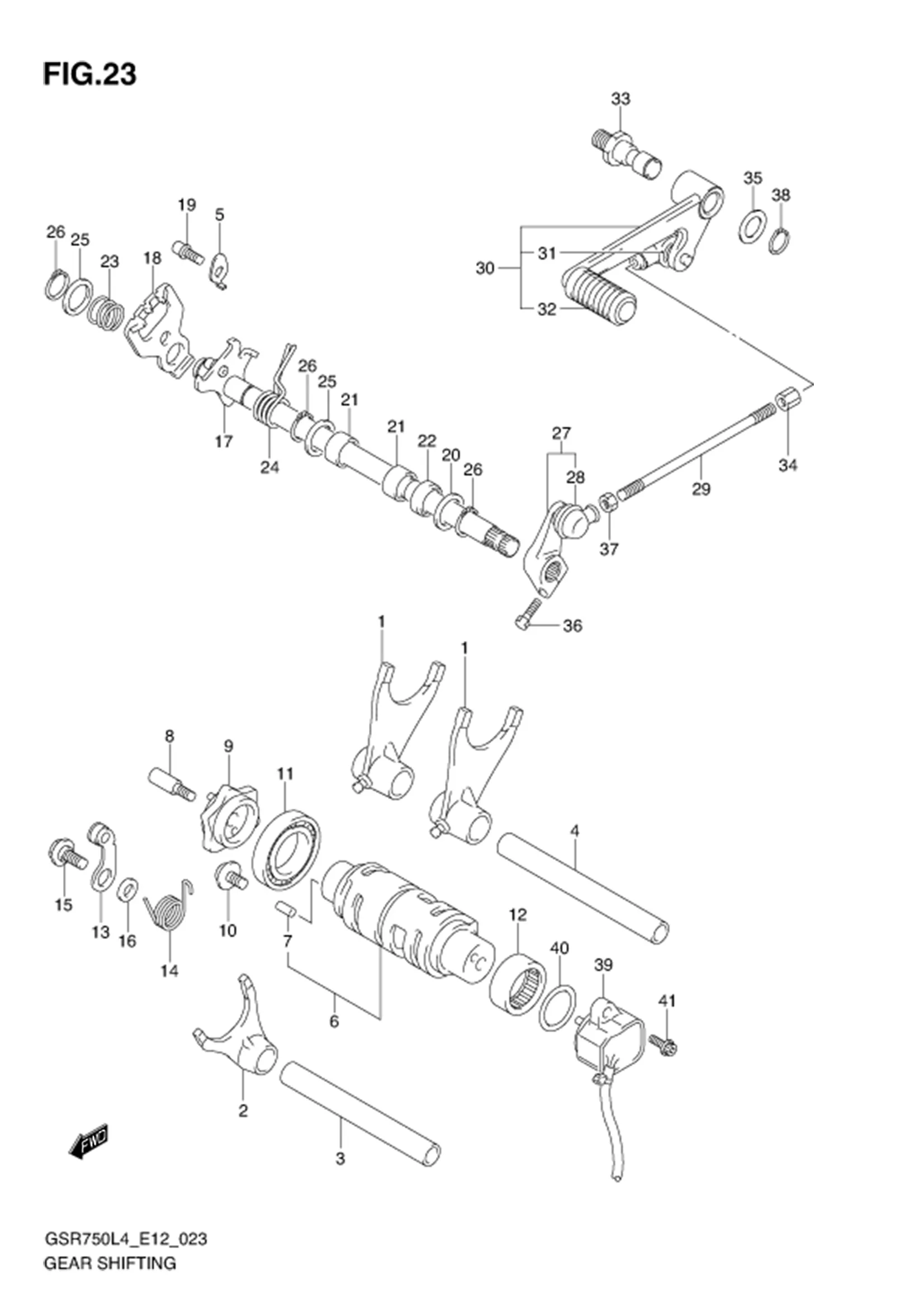

FIG.23 (1-C-14) GEAR SHIFTING

FIG.23 (1-C-14) GEAR SHIFTING
No No. Part Description Qty Price Per Pcs Remarks
25652-16H11-000
SUB: 25652-20C00-000		 ?RUBBER, GEAR SHIFT PEDAL 1 Rp3.500
09440-17009-000 SPRING 1 Rp13.000
09444-20007-000
SUB: 09444-20001-000		 SPRING 1 Rp4.500
09181-14167-000 SHIM (14X22X1) 2 Rp13.000
08331-3114A-000 CIRCLIP 3 Rp12.500
25520-06G10-000 ARM, GEAR SHIFT LINK 1 Rp336.500
25526-47000-000 ?COVER, DUST 1 Rp12.500
DISCONTINUE
SUB: 25525-12B00-000		 ROD, GEAR SHIFT LINK 1 -
25600-08J00-000 LEVER ASSY, GEAR SHIFT 1 Rp409.500
25526-47000-000 ?COVER, DUST 1 Rp12.500
09283M14005-000
SUB: 09283-14005-000		 OIL SEAL (14X22X7.3) 1 Rp9.000
25617-03F10-000 SHAFT, GEAR SHIFT LEVER 1 Rp85.000
09140-06025-000 NUT 1 Rp7.000
09160-12011-000 WASHER (12.5X20X1) 1 Rp10.500
01547-0620B-000
SUB: 01547-0620A-000		 BOLT 1 Rp6.500
08331-3112A-000 CIRCLIP 1 Rp13.000
37730-08J00-000 SENSOR ASSY, GEAR POSITION 1 Rp692.000
09280-26005-000 O RING (D:2.4,ID:26.2) 1 Rp3.000
09106-05023-000 BOLT (5X16) 2 Rp21.000
DISCONTINUE
SUB: 09263-25018-000		 BEARING (25X32X12) 1 -
25231-35F11-000 FORK, GEAR SHIFT, NO.3 1 Rp560.500
25411-26D01-000 SHAFT, GEAR SHIFT FORK, NO.2 1 Rp132.500
25411-35F00-000 SHAFT, GEAR SHIFT FORK, NO.1 1 Rp151.500
25451-35F00-000 RETAINER, SHIFT FORK SHAFT 1 Rp33.500
25310-35F00-000 CAM, GEAR SHIFT 1 Rp1.341.500
DISCONTINUE
SUB: 25312-42F01-000		 BOLT, GEAR SHIFT CAM PLATE 1 -
25381-13E30-000 PLATE, GEAR SHIFT CAM 1 Rp295.000
09136-06147-000 SCREW (6X12) 2 Rp21.000
DISCONTINUE
SUB: 09262-25006-000		 BEARING (25X47X8) 1 -
25211-35F11-000 FORK, GEAR SHIFT, NO.1 2 Rp560.500
25350-35F00-000 STOPPER, SHIFT CAM 1 Rp191.500
25355-05G00-000 SPRING, SHIFT CAM STOPPER ARM 1 Rp31.000
08211-06141-000 WASHER 1 Rp9.500
25510-08J00-000 SHAFT, GEAR SHIFT 1 Rp596.000
25512-06G10-000 PLATE, GEAR SHIFT CAM DRIVE 1 Rp196.000
25671-35F00-000 STOPPER, GEAR SHIFT ARM 1 Rp26.500
09160-14016-000 WASHER (14X29X0.8) 1 Rp12.000
09263-14027-000 BEARING (14X20X12) 2 Rp43.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
