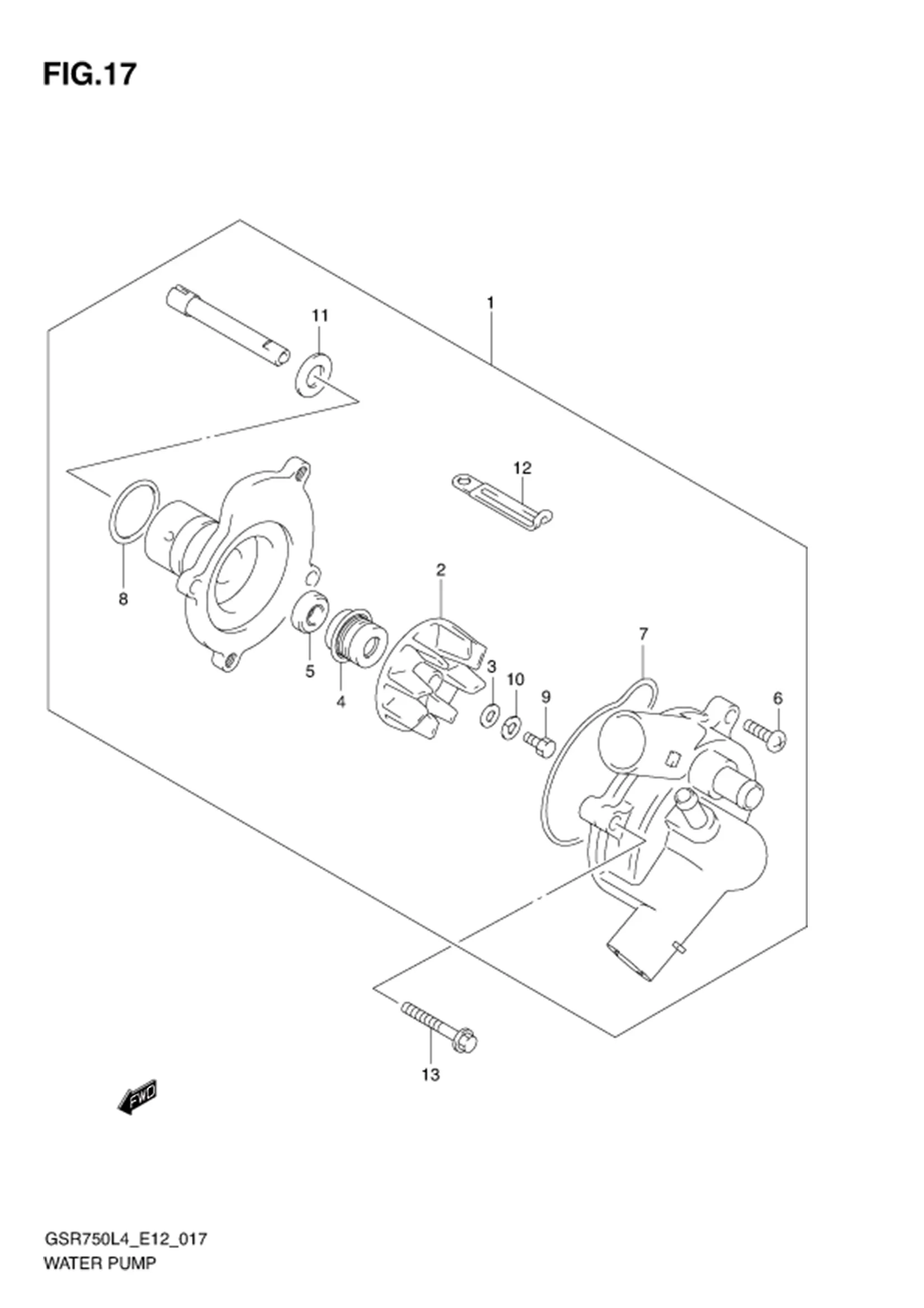

FIG.17 (1-C-7) WATER PUMP

FIG.17 (1-C-7) WATER PUMP
No No. Part Description Qty Price Per Pcs Remarks
17400-35F30-000 PUMP ASSY, WATER 1 Rp1.905.000
17491-17E01-000 ?IMPELLER 1 Rp169.000
09168-06025-000 ?GASKET (6X15X2.2) 1 Rp21.000
17470-02F11-000
SUB: 17470-02F10-000		 ?SEAL, MECHANICAL 1 Rp198.500
17461-48G00-000 ?OIL SEAL 1 Rp87.000
17418-33401-000
SUB: 17418-33400-000		 ?O RING 1 Rp28.500
17435-33400-000 ?O RING 1 Rp97.000
09100-06099-000 ?BOLT (6X13) 1 Rp14.500
DISCONTINUE
SUB: 09164-06006-000		 ?WASHER 1 -
17432-07G00-000 ?WASHER 1 Rp20.000
09404-06429-000 ?CLAMP (L:45) 1 Rp15.000
01550-0635A-000 BOLT 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
