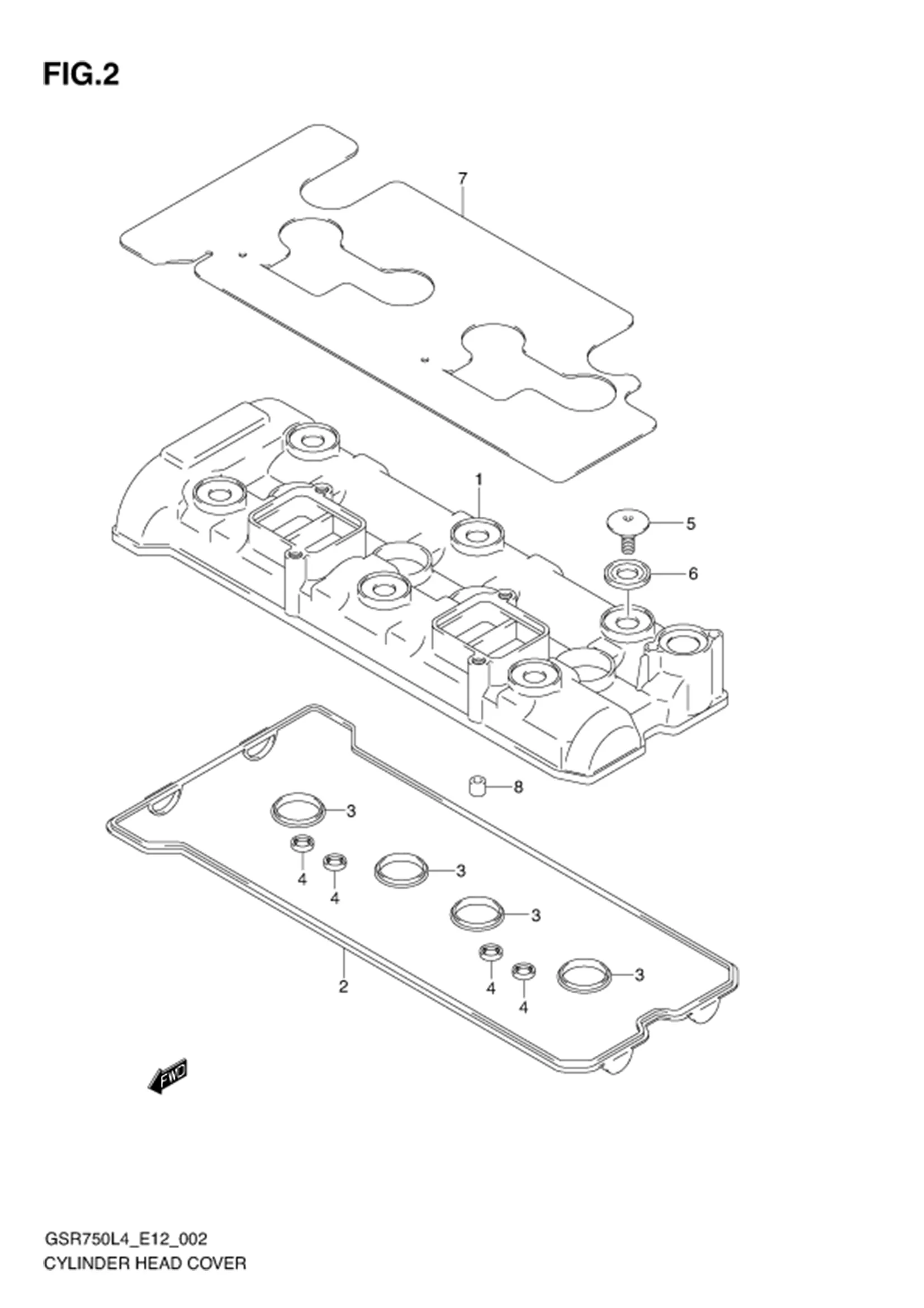

FIG.2 (1-B-3) CYLINDER HEAD COVER

FIG.2 (1-B-3) CYLINDER HEAD COVER
No No. Part Description Qty Price Per Pcs Remarks
11171-35F10-000 COVER, CYLINDER HEAD 1 Rp4.037.500
11173-35F00-000 GASKET, HEAD COVER NO.1 1 Rp310.500
11178-33E00-000 GASKET, HEAD COVER NO.2 4 Rp40.000
11182-35F10-000 GASKET, 2ND AIR PASSAGE 4 Rp29.500
09106-07009-000 BOLT (7X17.5) 6 Rp24.500
11191-27E00-000 WASHER 6 Rp30.500
11179-08J00-000 SHIELD, CYLINDER HEAD COVER 1 Rp170.000
09206-10016-000 PIN (8.2X10X13) 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
