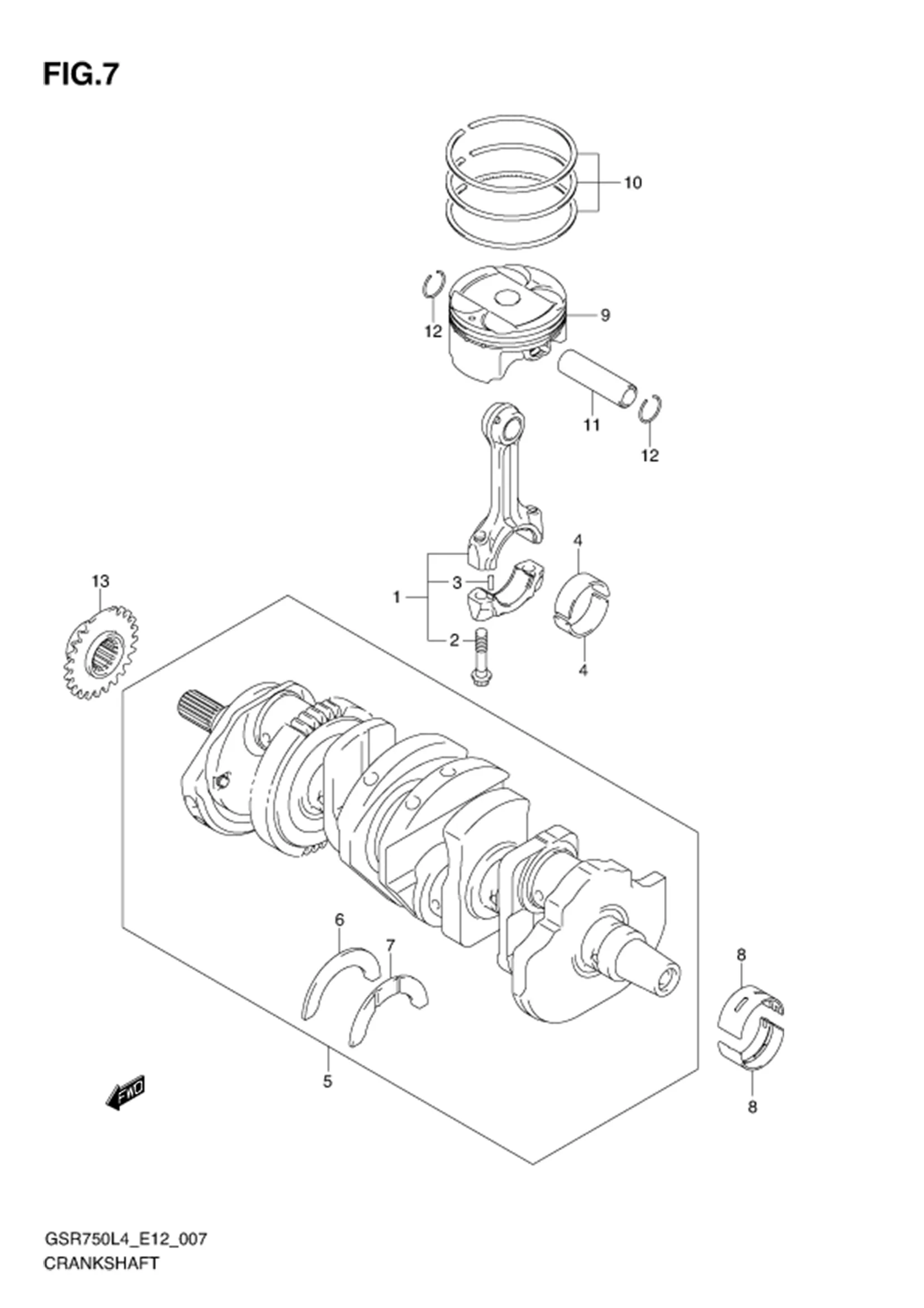

FIG.7 (1-B-10) CRANKSHAFT

FIG.7 (1-B-10) CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
12160-08J00-000 ROD ASSY, CONNECTING 4 Rp1.078.500
12163-35F00-000 ?BOLT 8 Rp65.000
12164-35F00-0A0 BEARING, CRANK PIN (GREEN) 8 Rp102.000
12000-30810-000 CRANKSHAFT SET 1 Rp9.949.500
12228-17E00-0D0 ?BEARING, THRUST RH (GREEN) 1 Rp61.500
12228-17E00-0A0 ?BEARING, THRUST LH (RED) 1 Rp61.500
12229-35F00-0A0 BEARING, CRANKSHAFT (GREEN) 10 Rp145.500
12111-08J00-0F0 PISTON 4 Rp660.500
12140-08J00-000 RING SET, PISTON 4 Rp730.000
DISCONTINUE
SUB: 12151-10G00-000		 PIN, PISTON 4 -
09381-16001-000 SNAP RING 8 Rp2.500
12731-08J00-000 SPROCKET, CAM CHAIN (NT:17) 1 Rp679.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
