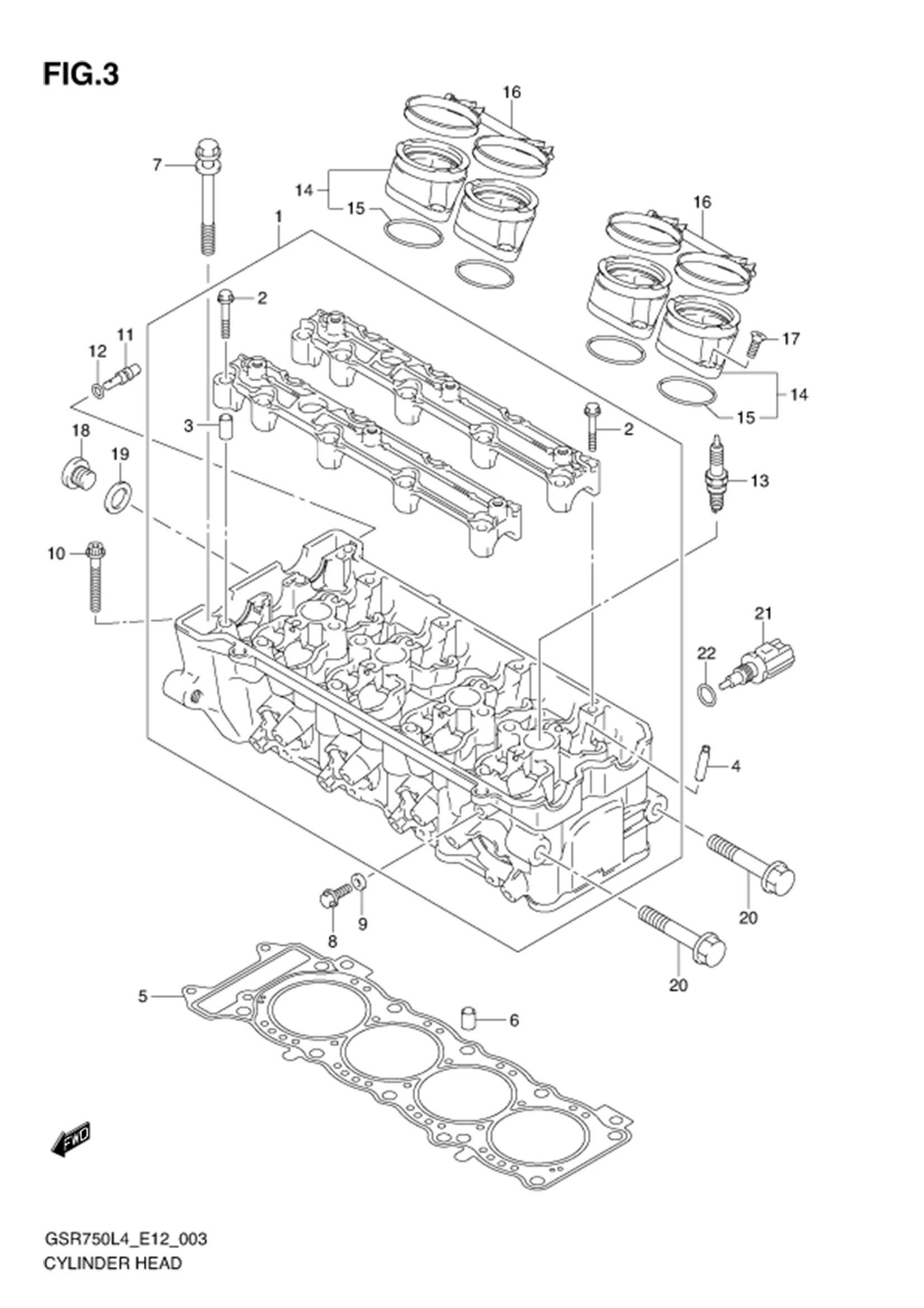

FIG.3 (1-B-4) CYLINDER HEAD

FIG.3 (1-B-4) CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
09206-08007-000 .PIN (6.2X8X16) 4 Rp19.000
13650-49X00-000 SENSOR, WATER TEMPERATURE 1 Rp133.500
09168-16009-000 GASKET (16X22X0.8) 1 Rp15.500
09248-16012-000 PLUG (16X8) 1 Rp31.500
02122-0616A-000
SUB: 02122-0616B-000		 SCREW 8 Rp3.500
13170-08J00-000 CLAMP, INTAKE PIPE 2 Rp173.500
09280-40020-000
SUB: 09280-40010-000		 ?O RING (D:2.4,ID:39.7) 4 Rp26.000
13101-08J00-000 PIPE ASSY, INTAKE 4 Rp393.000
09482-00557-000 SPARK PLUG (IU27D) 4 Rp207.500
09280-04004-000 O RING (D:1.2,ID:4) 1 Rp3.500
09493-80005-000 JET(8) 2 Rp90.500
07120-0650A-000 BOLT 2 Rp21.500
09168-06023-000 GASKET (5.8X13X1.2) 1 Rp13.500
09103-06222-000 BOLT (6X12) 1 Rp17.500
11117-30G00-000 BOLT, CYLINDER HEAD (L:105) 10 Rp63.000
04211-11169-000 PIN 2 Rp2.000
11141-35F00-000 GASKET, CYLINDER HEAD 1 Rp536.500
11115-11D70-000 GUIDE, VALVE (OS 0.3) 16 Rp220.000
09103-06266-000 .BOLT (6X40) 20 Rp14.000
7 09103-10235-000 BOLT (10X50) 1 Rp35.000
9 09168-12017-000 GASKET, OIL GALLERY PIPE 4 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
