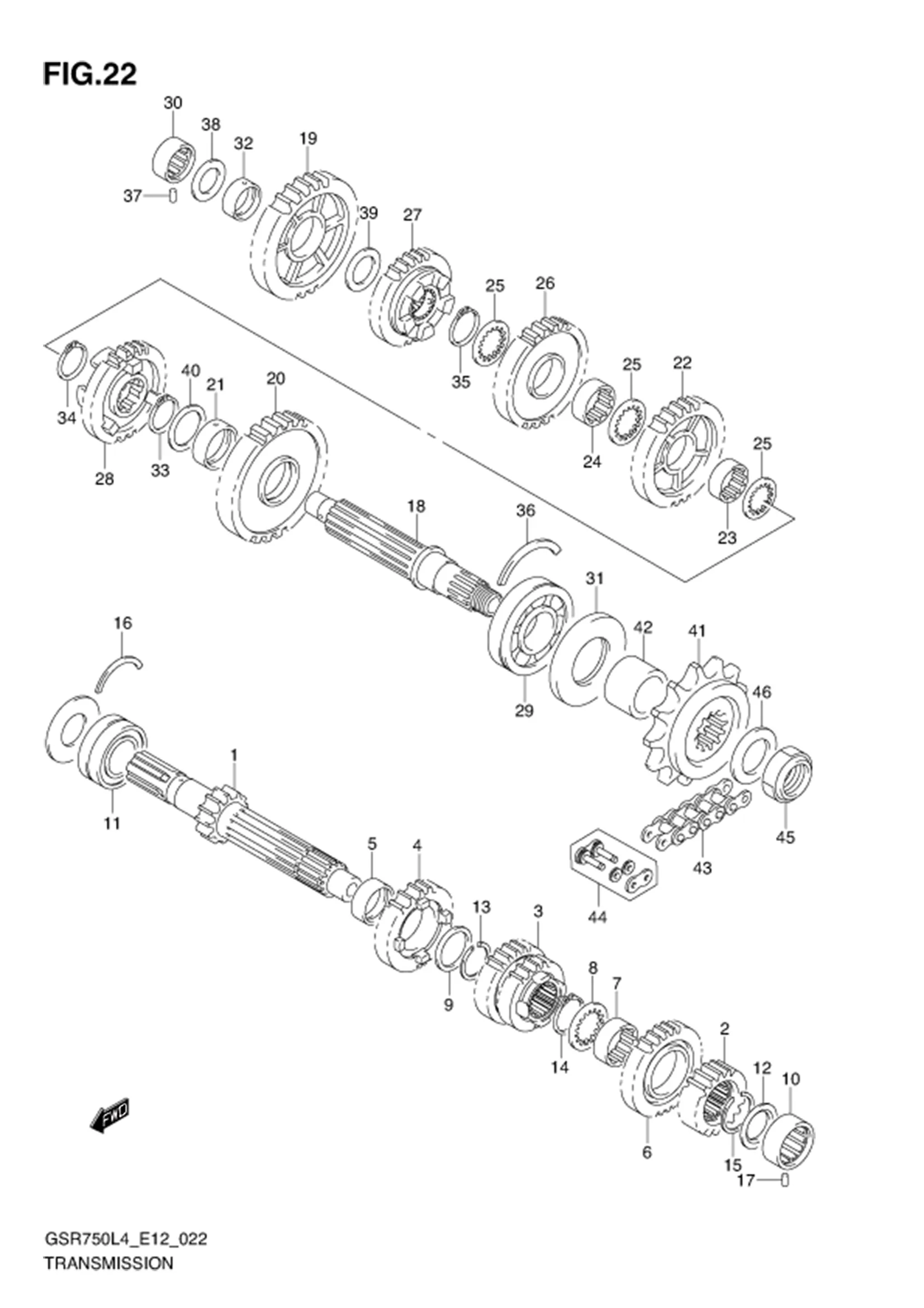

FIG.22 (1-C-12) TRANSMISSION

FIG.22 (1-C-12) TRANSMISSION
No No. Part Description Qty Price Per Pcs Remarks
DISCONTINUE
SUB: 09390-70001-000		 C RING 1 -
24333-02F00-000 WASHER, 3RD 3 Rp36.000
24341-35F10-000 GEAR, 4TH DRIVEN (NT:29) 1 Rp893.500
24351-35F10-000 GEAR, 5TH DRIVEN (NT:30) 1 Rp873.000
24361-35F10-000 GEAR, 6TH DRIVEN (NT:26) 1 Rp1.185.500
DISCONTINUE
SUB: 09262-28025-000		 BEARING (28X70X18) 1 -
09263-20087-000 BEARING (20X34X13.5) 1 Rp316.500
DISCONTINUE
SUB: 09283-36008-000		 OIL SEAL (34.8X70X6) 1 -
09300-22008-000 BUSH (22X26X9) 1 Rp84.000
09380-27006-000 CIRCLIP 1 Rp20.000
09380-27006-000 CIRCLIP 1 Rp20.000
09380-27006-000 CIRCLIP 1 Rp20.000
24332-35F00-000 BUSH, 4TH DRIVEN GEAR 1 Rp154.500
DISCONTINUE
SUB: 09261-06003-000		 PIN (6X10) 1 -
09181-20251-000 SHIM (20X34X1) 1 Rp20.000
DISCONTINUE
SUB: 09181-22223-000		 SHIM (22X34X1) 1 -
09160-27008-000 WASHER (27X36X1) 1 Rp21.500
DISCONTINUE
SUB: 27510-20A20-000		 SPROCKET, ENGINE (NT:17) 1 -
27531-35F01-000 SPACER, ENGINE SPROCKET 1 Rp170.500
27600-06G40-112 CHAIN ASSY (RK 525SMOZ8) 1 Rp2.280.500
27620-06G40-000 JOINT SET, CHAIN 1 Rp120.500
DISCONTINUE
SUB: 09159-20004-000		 NUT 1 -
09160-25009-000 WASHER (25X41X3) 1 Rp39.000
09380-27006-000 CIRCLIP 1 Rp20.000
24221-35F00-000 GEAR, 2ND DRIVE (NT:19) 1 Rp600.000
24231-35F20-000
SUB: 24231-35F01-000		 GEAR, 3RD 1 Rp1.106.500
24251-35F21-000 GEAR, 5TH DRIVE (NT:23) 1 Rp1.141.500
24252-35F00-000 BUSH 5TH DRIVE GEAR 1 Rp136.500
24261-35F02-000 GEAR, 6TH DRIVE (NT:22) 1 Rp968.000
24262-35F10-000 BUSH, 6TH DRIVE GEAR 1 Rp155.500
09167-27003-000 LOCK WASHER 1 Rp40.000
09181-27014-000 SHIM (27X36X2.5) 1 Rp36.000
09263-20087-000 BEARING (20X34X13.5) 1 Rp316.500
09267-25013-000 BEARING (25X52X20.6) 1 Rp656.000
DISCONTINUE
SUB: 09285-20006-000		 OIL SEAL (20X31.2X2.7) 1 -
24120-35F20-000 SHAFT, COUNTER (NT:14) 1 Rp2.219.000
09380-27006-000 CIRCLIP 1 Rp20.000
09380-27004-000 CIRCLIP 1 Rp24.500
09390-58001-000 C RING 1 Rp20.500
DISCONTINUE
SUB: 09261-06003-000		 PIN (6X10) 1 -
24131-35F01-000 SHAFT, DRIVE 1 Rp2.203.000
24311-35F20-000 GEAR, 1ST DRIVEN (NT:39) 1 Rp873.000
24321-35F11-000 GEAR, 2ND DRIVEN (NT:39) 1 Rp738.000
24322-35F00-000 BUSH, 2ND DRIVEN GEAR 1 Rp120.000
24331-35F10-000 GEAR, 3RD DRIVEN (NT:37) 1 Rp873.000
24332-35F00-000 BUSH, 3RD DRIVEN GEAR 1 Rp154.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
