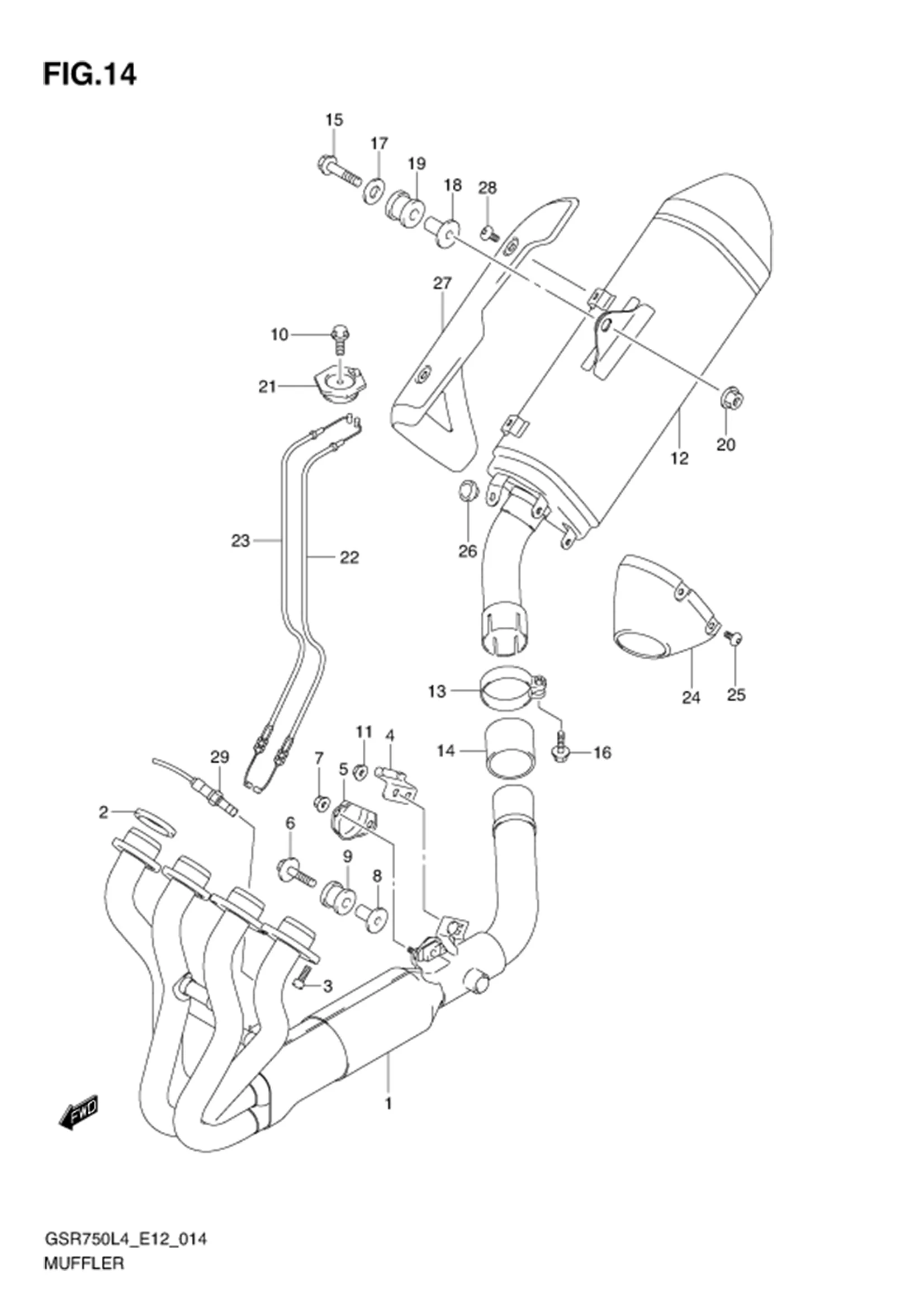

FIG.14 (1-C-4) MUFFLER

FIG.14 (1-C-4) MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
09103-08358-000 BOLT (8X45) 1 Rp24.500
18213-18H10-000 SENSOR, OXYGEN 1 Rp3.266.000
09139-06122-000 SCREW (6X10) 2 Rp10.500
14780-08J00-000 COVER, MUFFLER CENTER 1 Rp1.541.500
09321-10018-000 CUSHION 1 Rp31.500
09139-06078-000 SCREW (6X10) 2 Rp8.500
14770-08J00-000 COVER, MUFFLER FRONT 1 Rp908.500
11277-08J00-000 CABLE, EXHAUST VALVE NO.2 1 Rp461.500
11276-08J00-000 CABLE, EXHAUST VALVE NO.1 1 Rp461.500
11269-18G01-000 PULLEY, CONTROLLER 1 Rp159.000
09180-08152-000 SPACER (8.6X12X24.2) 1 Rp40.000
09160-08142-000 WASHER (8.5X28X1.5) 1 Rp21.000
09103-08392-000 BOLT (8X40) 1 Rp26.500
14100-08J00-000 EXHAUST 1 Rp15.483.500
14771-42F31-000 CONNECTOR, MUFFLER 1 Rp151.500
14459-08J00-000 CLAMP 1 Rp139.000
14310-08J00-000 BODY, MUFFLER 1 Rp7.546.500
01547-0516A-000 BOLT 1 Rp16.000
09320-12077-000 CUSHION 1 Rp75.500
09180-08152-000 SPACER (8.6X12X24.2) 1 Rp40.000
09118-08152-A05 BOLT (8X45) 1 Rp36.500
14280-08J00-000 COVER, EXHAUST VALVE 1 Rp175.500
14250-21H00-000 BRACKET, EXHAUST VALVE CABLE 1 Rp54.000
09106-08165-000 BOLT (8X25) 8 Rp34.000
14181-46E10-000
SUB: 14181-46E00-000		 GASKET, EXHAUST PIPE 4 Rp69.000
4 08316-1006A-000 NUT 3 Rp2.000
5 08361-2508A-000 NUT 2 Rp16.500
16 09159-06100-000 NUT 2 Rp19.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
