GSR 750

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 (1-B-2) GASKET SETFIG.2 (1-B-3) CYLINDER HEAD COVERFIG.3 (1-B-4) CYLINDER HEADFIG.4 (1-B-5) CRANKCASEFIG.5 (1-B-7) CRANKCASE COVERFIG.6 (1-B-9) OIL PAN/OIL PUMPFIG.7 (1-B-10) CRANKSHAFTFIG.8 (1-B-11) STARTER CLUTCHFIG.9 (1-B-12) CAMSHAFT/VALVEFIG.10 (1-B-14) CAM CHAINFIG.11 (1-B-15) THROTTLE BODYFIG.12 (1-C-2) THROTTLE BODY HOSE/JOINTFIG.13 (1-C-3) AIR CLEANERFIG.14 (1-C-4) MUFFLERFIG.15 (1-C-5) OIL COOLERFIG.16 (1-C-6) FUEL PUMPFIG.17 (1-C-7) WATER PUMPFIG.18 (1-C-8) RADIATORFIG.19 (1-C-9) RADIATOR HOSEFIG.20 (1-C-10) 2ND AIRFIG.21 (1-C-11) CLUTCHFIG.22 (1-C-12) TRANSMISSIONFIG.23 (1-C-14) GEAR SHIFTING

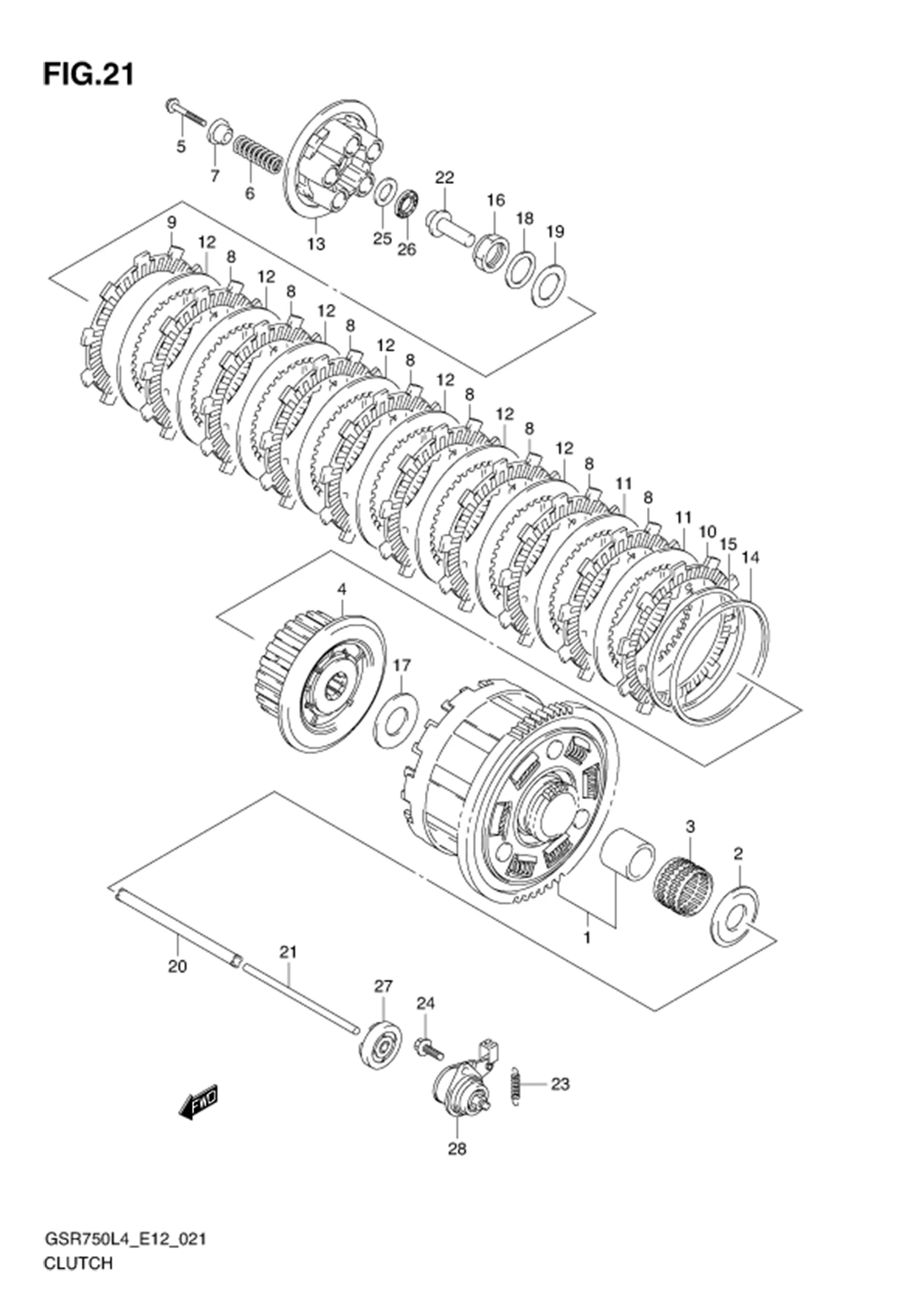

FIG.21 (1-C-11) CLUTCH

FIG.21 (1-C-11) CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
21471-31E20-000 SEAT, WAVE WASHER 1 Rp94.000
23200-35F01-000 SCREW ASSY, CLUTCH RELEASE 1 Rp460.500
09283-06010-000 OIL SEAL (6X34X10.5) 1 Rp110.000
09263-15003-000 BEARING (15X28X2) 1 Rp59.500
09160-15045-000 WASHER (15.5X28X1) 1 Rp23.500
09443-09051-000 SPRING 1 Rp26.500
23121-31E00-000 PIECE, CLUTCH PUSH 1 Rp151.500
23111-35F00-000 ROD, CLUTCH PUSH LH 1 Rp86.000
DISCONTINUE
SUB: 23110-27A00-000		 ROD, CLUTCH 1 -
09181-25223-000 SHIM (25X38X1) 1 Rp23.500
09164-24008-000 WASHER 1 Rp26.500
09160-25056-000 WASHER (25X50X2.5) 1 Rp79.500
09159-24010-000 NUT 1 Rp90.000
21472-39F00-000 WASHER, CLUTCH PLATE WAVE 1 Rp97.000
21200-35830-000 GEAR ASSY, PRIMARY DRIVEN (NT:78) 1 Rp3.113.000
21462-35F00-000 DISC, CLUTCH PRESSURE 1 Rp391.000
21451-31E10-000 PLATE, CLUTCH DRIVEN NO.2 (T:2.0) 7 Rp86.000
DISCONTINUE
SUB: 21451-31E00-000		 PLATE, CLUTCH DRIVEN NO.1 (T:1.6) 2 -
21442-31E21-000 PLATE, CLUTCH DRIVE NO.3 (T:3.0) 1 Rp250.000
DISCONTINUE
SUB: 21441-31E60-000		 PLATE, CLUTCH DRIVE NO.2 (T:3.0) 1 -
21441-31EA0-000 PLATE, CLUTCH DRIVE NO.1 (T:3.0) 8 Rp172.000
21414-29F00-000 WASHER, CLUTCH SPRING 5 Rp44.000
21413-08J00-000 SPRING, CLUTCH 5 Rp56.000
21482-40F00-000 BOLT, CLUTCH SPRING 5 Rp21.500
21410-35F20-000 HUB, CLUTCH SLEEVE 1 Rp779.500
09263-35036-000 BEARING (35X40X29.8) 1 Rp233.500
DISCONTINUE
SUB: 09160-25073-000		 WASHER (25X54X2.4) 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
